Tractor · 1975Unverified

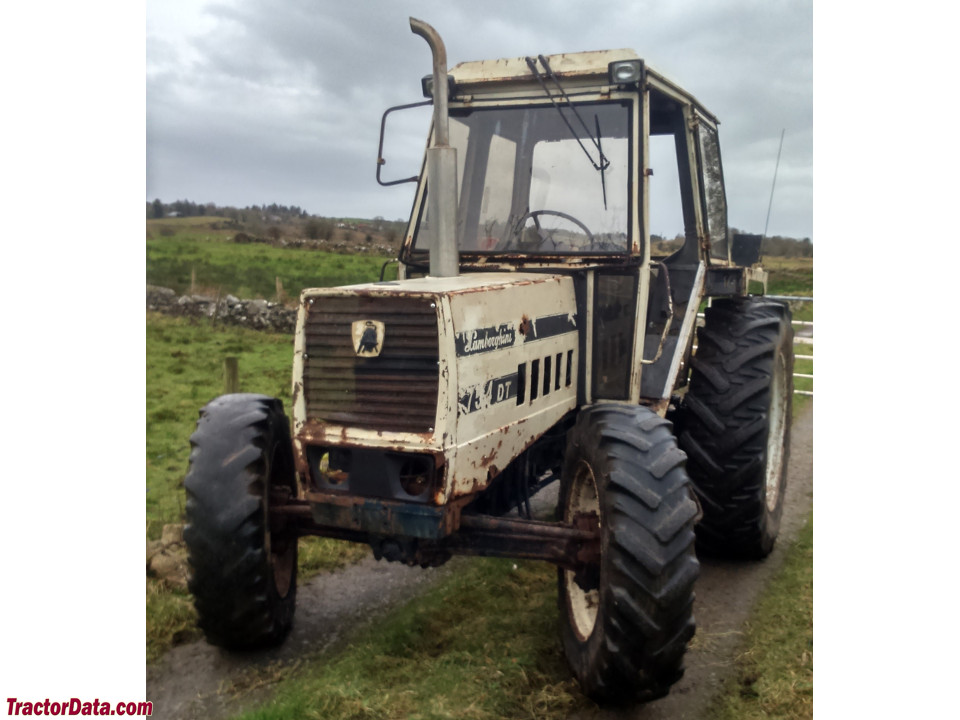

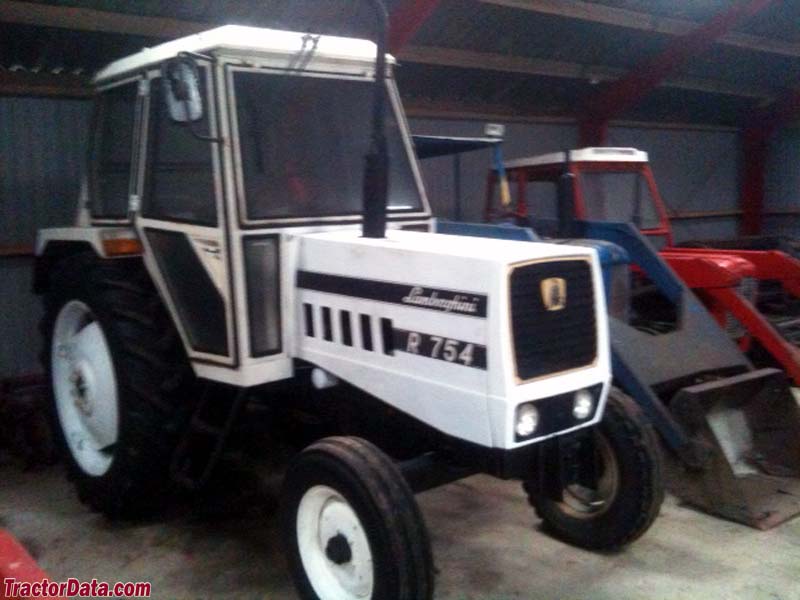

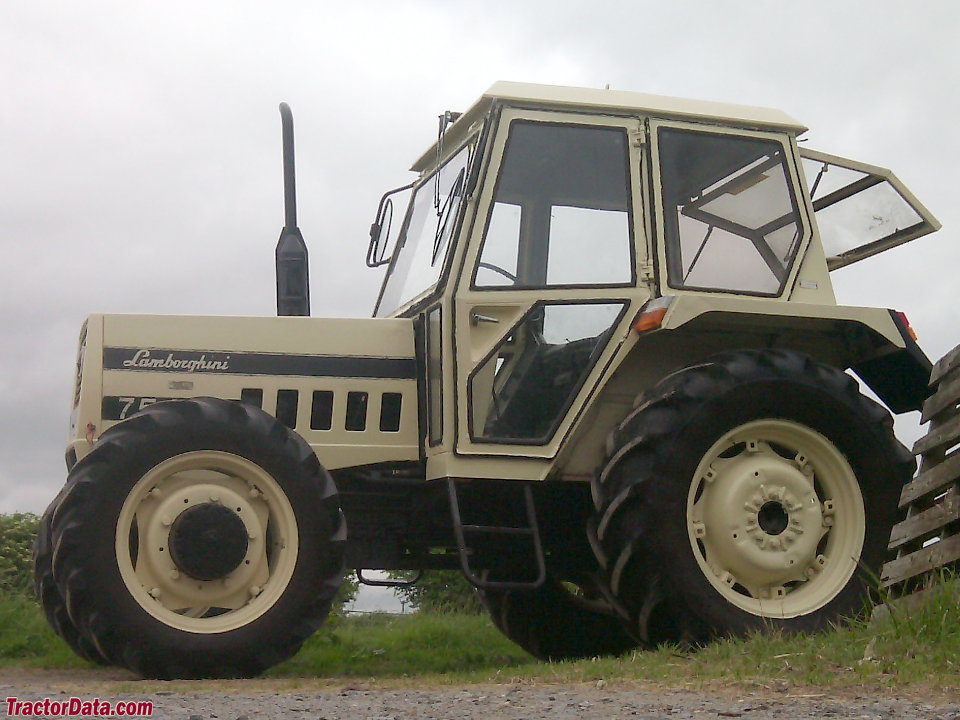

Lamborghini 754
Lamborghini 754 · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
7298 to 7893 pounds
Hover a source tag to verify
Overview
ManufacturerLamborghini (a part of SAME)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WDReference
Steeringhydrostatic powerReference
Four-post ROPS. Cab optional.Reference
Variants
754DT4WDReference
Engine
Lamborghini 3.6L 4-cyl dieselReference
Lamborghini 4.2L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine (gross)58.2 kWReference
Engine (net)53.7 kWReference
Engine53.7 kWReference
Lamborghini 984PReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.6 LReference
Bore/Stroke98 x 120 mmReference
Power (net)53.7 kWReference
Power (gross)58.2 kWReference
Air cleaneroil bathReference
Rated RPM2335Reference
Starter volts12Reference
Lamborghini 105.4PReference
Larger 4.1L engine, introduced in 1982.Reference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power53.7 kWReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and lower-link draft controlReference
Rear lift (at ends)3801 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Dimensions
Wheelbase230 cmReference
Weight7298 to 7893 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9-30 (2WD)Reference
Standard tires (ag)Front: 11.2/10-24. Rear: 16.9/14-30 (4WD)Reference
Optional tires (ag)Front: 7.50-18. Rear: 16.9/14-34 (2WD)Reference
Optional tires (ag)Front: 6.50-20. Rear: 13.6/12-38 (2WD)Reference
Optional tires (ag)Front: 7.50-18. Rear: 18.4/15-30 (2WD)Reference
Optional tires (ag)Front: 12.4/11-24. Rear: 16.9/14-34 (4WD)Reference
Optional tires (ag)Front: 12.4/11-24. Rear: 13.6/12-38 (4WD)Reference
Optional tires (ag)Front: 12.4/11-24. Rear: 18.4/15-30 (4WD)Reference
Length357 cmReference
Height246 cmReference
2WD Weight3310 kgReference
4WD Weight3580 kgReference
2WD Front tread139 to 189 cmReference
4WD Front tread143 to 199 cmReference
Rear tread160 to 221 cmReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
