Tractor · 1976Unverified

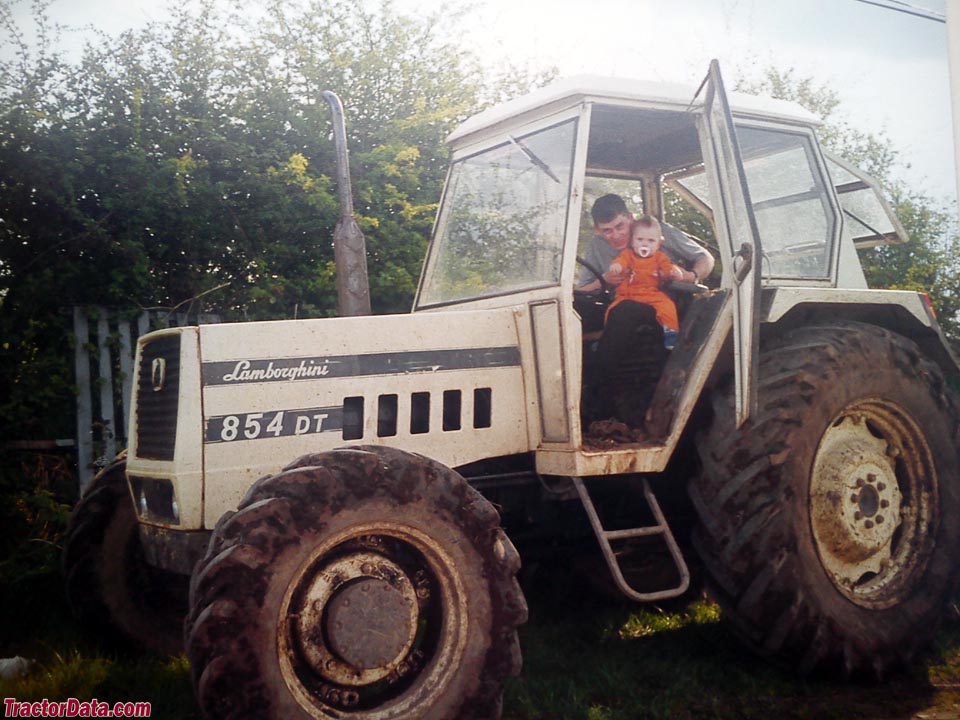

Lamborghini 854
Lamborghini 854 · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
6700 to 7145 pounds
Hover a source tag to verify
Overview
ManufacturerLamborghini (a part of SAME)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (854DT)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Variants
8542WDReference
854DT4WDReference
Engine
Lamborghini 4.2L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine (gross)67.1 kWReference
Engine (net)61.1 kWReference
Lamborghini 105.4PReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power (net)61.1 kWReference
Power (gross)67.1 kWReference
Air cleaneroil bathReference
Rated RPM2265Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
12-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Clutch279mm dry discReference
TypecreeperReference
PTO & Hydraulics
Rear Type2Reference
Controlposition and draft controlReference
Rear lift (at ends)3800 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase244 cmReference
4WD Wheelbase245 cmReference
Weight6700 to 7145 poundsReference
Front tire7.50-18Reference
Rear tire16.9/14-34 (2WD)Reference
Standard tires (ag)Front: 7.50-18. Rear: 16.9/14-34 (2WD)Reference
Standard tires (ag)Front: 12.4/11-24. Rear: 16.9/14-34 (4WD)Reference
Optional tires (ag)Front: 7.50-20. Rear: 18.4/15-34 (2WD)Reference
Optional tires (ag)Front: 6.50-20. Rear: 13.6/12-38 (2WD)Reference
Optional tires (ag)Front: 12.4/11-28. Rear: 18.4/15-34 (4WD)Reference
Optional tires (ag)Front: 12.4/11-24. Rear: 13.6/12-38 (4WD)Reference
Length379 cmReference
2WD Weight3039 kgReference
4WD Weight3240 kgReference
2WD Ground clearance59 cmReference
4WD Ground clearance41 cmReference
Front tread149 to 199 cmReference
Front tread143 to 199 cmReference
Rear tread175 to 221 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Lamborghini 854 Height
Hood154 cmReference
ROPS255 cmReference
Exhaust267 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
