Tractor · 1983Unverified

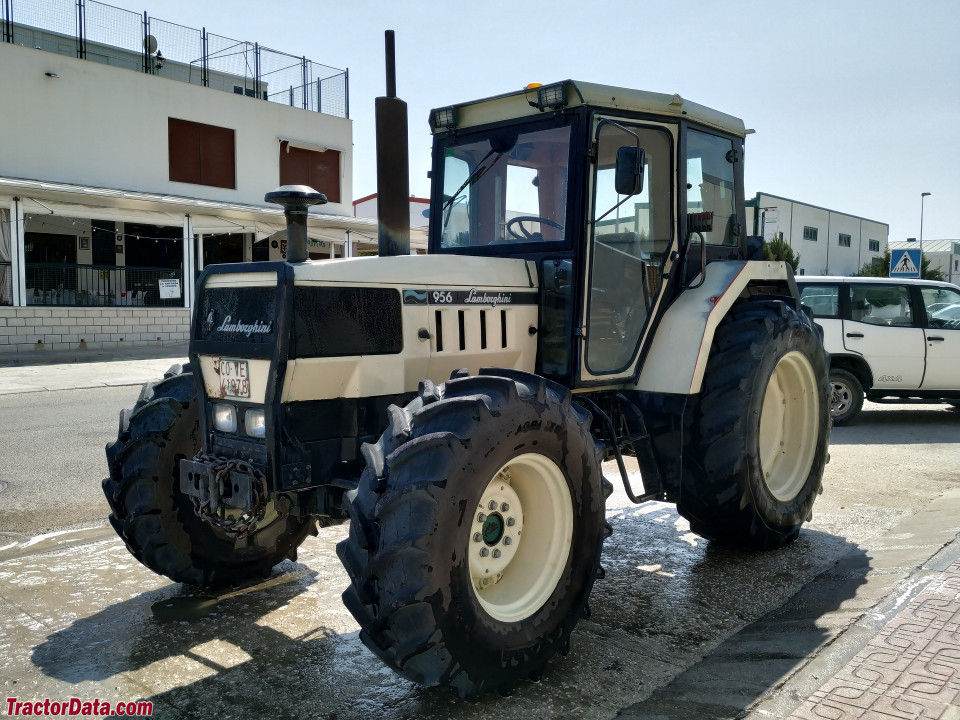

Lamborghini 956
Lamborghini 956 — Row-Crop tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
8025 to 9656 pounds
Hover a source tag to verify
Overview
ManufacturerLamborghini (a part of SAME)Reference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab available with air-conditioning.Reference
Engine
Lamborghini 5.5L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine70.8 kWReference
Lamborghini 916.6 WReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke103 x 110 mmReference
Power70.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2180Reference
Torque326.1 NmReference
Torque RPM1375Reference
Starter volts12Reference
Transmission
12-speedReference
24-speedReference
20-speed creeperReference
Gears12 forward and 3 reverseReference
Clutchhydraulic dry discReference
Four gears (1-4) plus reverse (R) in three ranges (L/N/V).Reference
Gears24 forward and 12 reverseReference
TypecreeperReference
Gears20 forward and 12 reverseReference
Add additional creeper (Super Reduction) range for ranges L and N.Reference
PTO & Hydraulics
Pump flow62.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4599 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase261 cmReference
4WD Wheelbase260 cmReference
Weight8025 to 9656 poundsReference
Front tire9.00-16Reference
2WD Rear tire16.9/14-38Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 16.9/14-38Reference
4WD Standard tires (ag)Front: 14.9/13-28. Rear: 16.9/14-38Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 18.4/15-34Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 23.1/18-30Reference
4WD Optional tires (ag)Front: 14.9/13-24. Rear: 16.9/14-34Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 16.9/14-24. Rear: 18.4/15-34Reference
4WD Optional tires (ag)Front: 14.9/13-24. Rear: 23.1/18-30Reference
2WD Length383 cmReference
4WD Length401 cmReference
Width195 cmReference
2WD Ground clearance53 cmReference
4WD Ground clearance41 cmReference
2WD Front tread150 to 199 cmReference
4WD Front tread169 to 189 cmReference
Rear tread152 to 213 cmReference
2WD ROPS3640 kgReference
2WD Cab3840 kgReference
4WD ROPS4179 kgReference
4WD Cab4379 kgReference
Electrical
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps55Reference
Battery volts12Reference
Battery AH110Reference
Lamborghini 956 Height
2WD Hood176 cmReference
4WD Hood173 cmReference
ROPS261 cmReference
Cab265 cmReference
Speeds
With 16.9/14-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
