Tractor · 1998Unverified

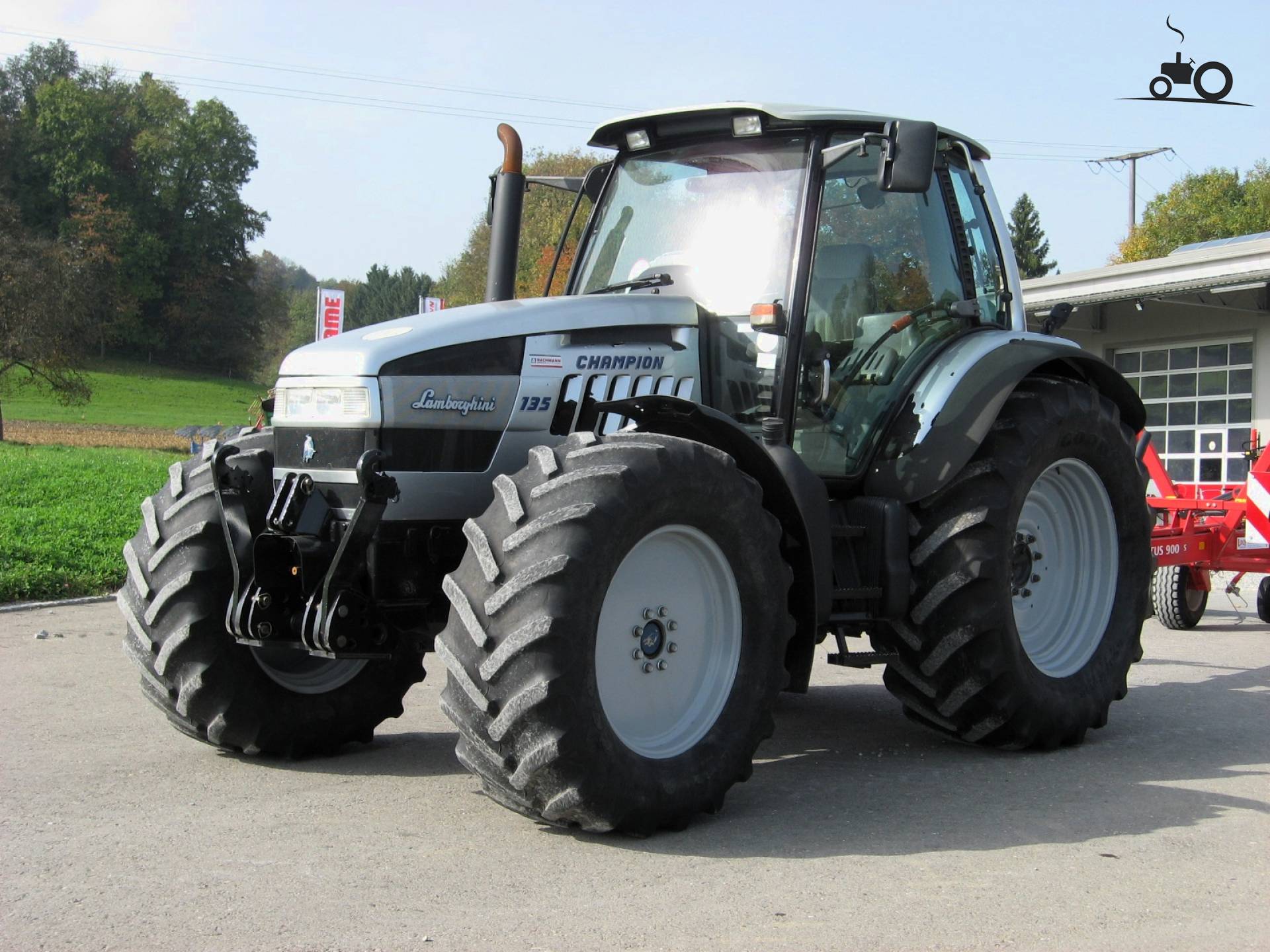

Lamborghini Champion 135

Lamborghini Champion 135 — Champion Series · 135 hp. Reference specifications; pending source verification.

The Lamborghini Champion 135 is a tractor with a rated power output of 135 hp, positioning it at the higher power end of its class. It was manufactured from 1998 to 2004. This model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight is 6100 kg, making it suitable for operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
135 hp
Weight
6100 kg

Catalogue coverage

Variants represented
2
Richest spec table
63 rows
Recorded power
135 hp
Recorded weight
6100 kg
Transmissions
18-speed 9-speed power shift
Production years
1998-2004
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLamborghiniReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference

Engine

SDF 6.0L 6-cyl dieselReference
Fuel tank230.1 LReference
Fuel tank380.0 LReference
Engine100.7 kWReference
SDF 1000.6 WT 3VReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power100.7 kWReference
Rated RPM2350Reference
Torque587.1 NmReference
Torque RPM1450Reference
Starter typeelectricReference

Transmission

18-speed 9-speed power shiftReference
27-speed creeperReference
Type9-speed power shiftReference
Gears18 forward and reverseReference
Clutchhydraulic wet discReference
Nine power shift gears in two ranges with power shuttle.Reference
TypecreeperReference
Gears27 forward and reverseReference

PTO & Hydraulics

Typeopen centerReference
Typeload-sensingReference
Valves8Reference
Pump flow73.1 lpmReference
Pump flow103.0 lpmReference
Rear lift6999 kgReference
Rear lift8600 kgReference
Front lift3999 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Rear PTO Type540E/1000Reference
Front PTOindependentReference
Clutchelectro-hydraulicReference
Front PTO Type1000Reference

Dimensions

Wheelbase275 cmReference
Weight6100 kgReference
Front tire420/70R30Reference
Rear tire520/70R38Reference
Standard tires (ag)Front: 420/70R30. Rear: 520/70R38Reference
Optional tires (ag)Front: 540/65R28. Rear: 600/65R38Reference
Optional tires (ag)Front: 540/65R30. Rear: 650/65R38Reference
Optional tires (ag)Front: 480/70R30. Rear: 580/70R38Reference
Length467 cmReference
Width245 cmReference
Height (hood)155 cmReference
Height (cab)288 cmReference
Ground clearance52 cmReference
Front tread182 to 256 cmReference
Rear tread193 to 234 cmReference

Electrical

Charging systemalternatorReference

Speeds

With 520/70R38 rear tires. Rear speeds are aboutg 9% faster than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
