Tractor · 1973Unverified

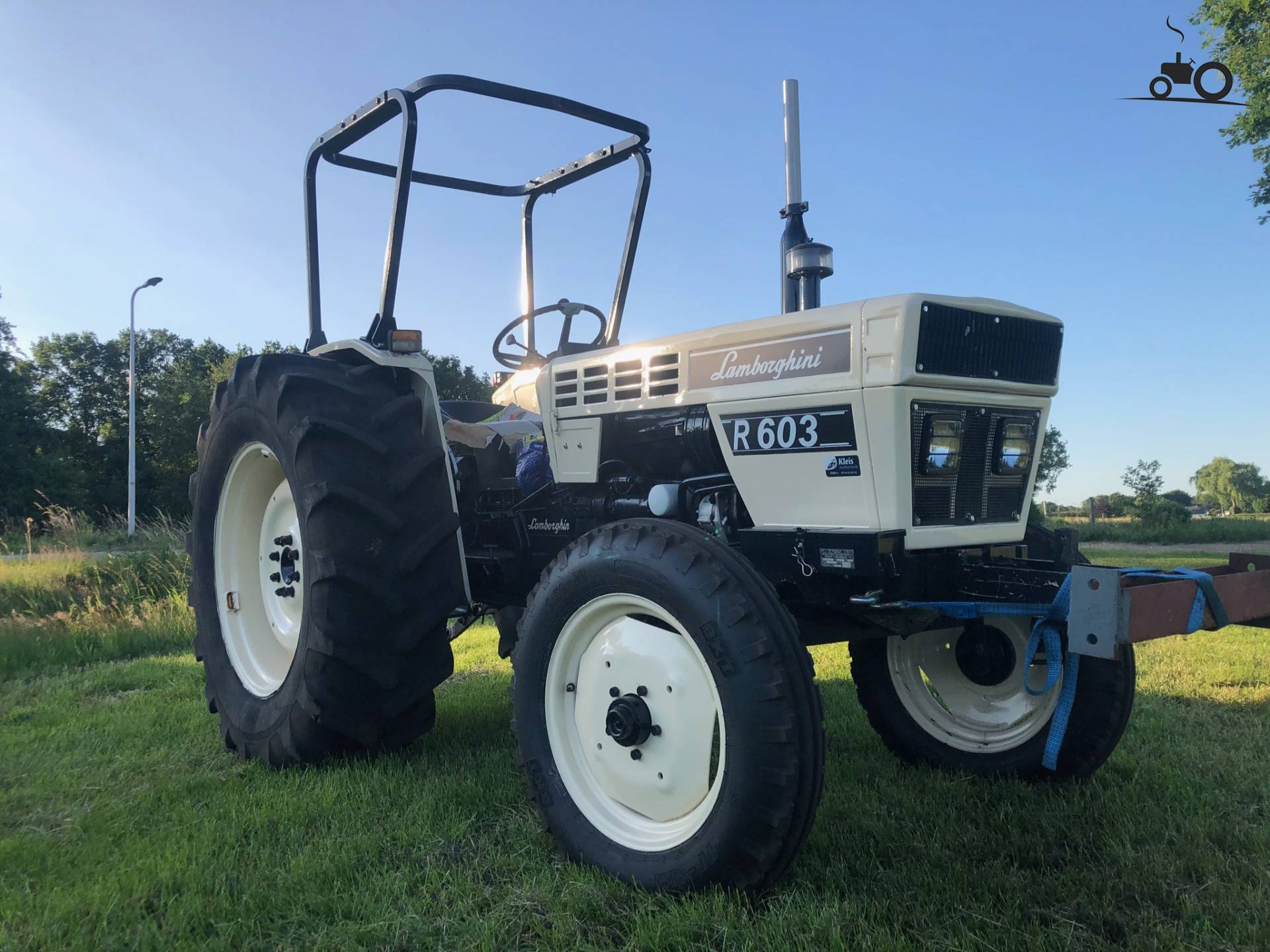

Lamborghini R 603
Lamborghini R 603 — Utility tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
4585 to 4960 pounds
Hover a source tag to verify
Overview
ManufacturerLamborghiniReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Engine
Lamborghini 2.8L 3-cyl dieselReference
Engine41.8 kWReference
LamborghiniReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power41.8 kWReference
Air cleaneroil bathReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase199 cmReference
Weight4585 to 4960 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6/12-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6/12-28Reference
4WD Standard tires (ag)Front: 9.50-20. Rear: 13.6/12-28Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 14.9/13-28Reference
2WD Optional tires (ag)Front: 6.00-19. Rear: 12.4/11-32Reference
4WD Optional tires (ag)Front: 8.3-24. Rear: 14.9/13-28Reference
Ag rear13.6-28Reference
Length335 cmReference
Height (steering wheel)160 cmReference
2WD Weight2079 kgReference
4WD Weight2249 kgReference
2WD Front tread120 to 191 cmReference
4WD Front tread135 cmReference
Rear tread135 to 185 cmReference
Speeds
With 13.6/12-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
