Tractor · 1972Unverified

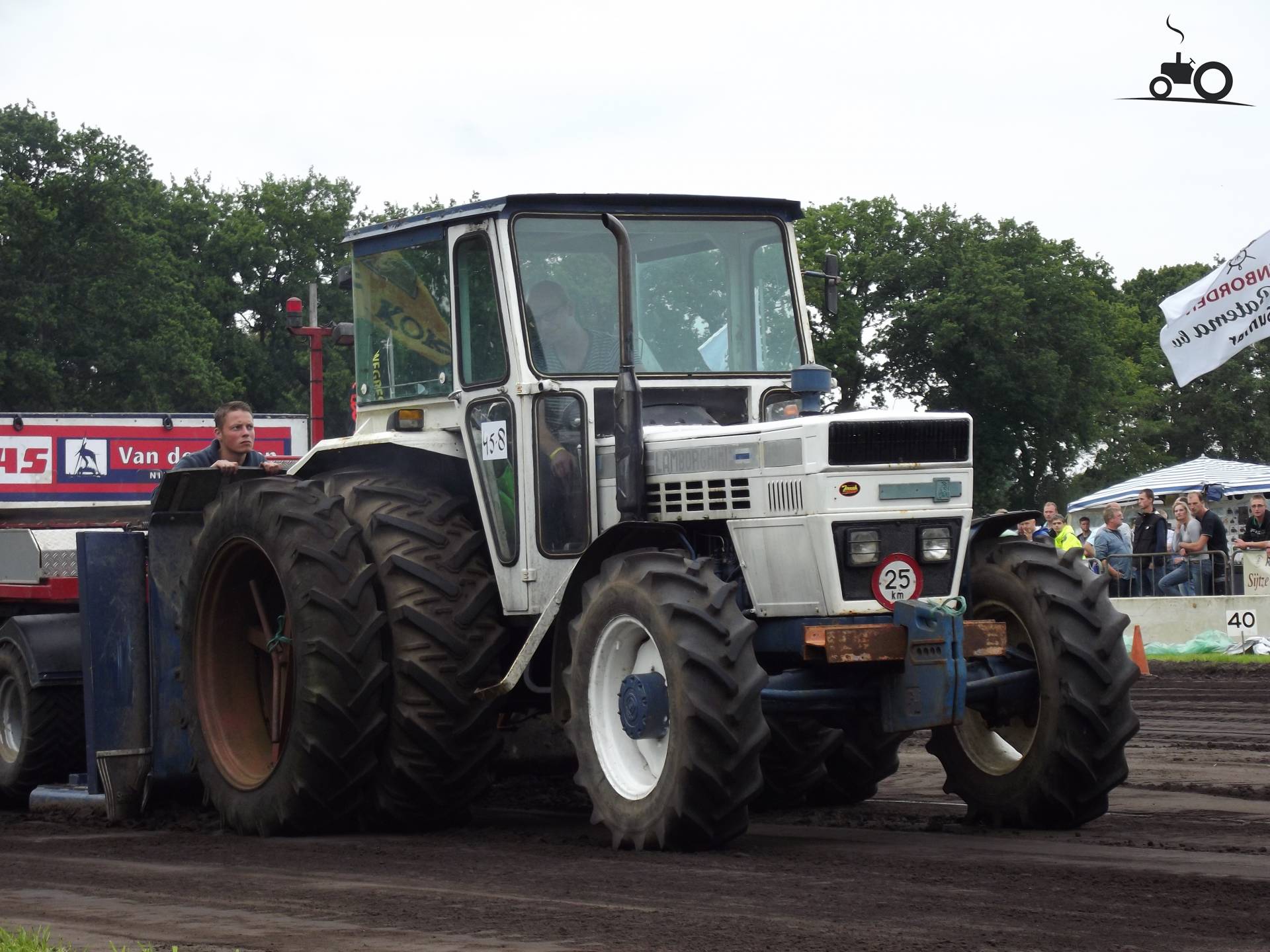

Lamborghini R 904
Lamborghini R 904 · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
7452 to 7959 pounds
Hover a source tag to verify
Overview
ManufacturerLamborghini (a part of SAME)Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS.Reference
Variants
R9042WDReference
R904DT4WDReference
Engine
Lamborghini 5.0L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine68.6 kWReference
LamborghiniReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement5.0 LReference
Bore/Stroke115 x 120 mmReference
Power68.6 kWReference
Rated RPM2090Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Four gears, plus reverse, in three ranges.Reference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow32.2 lpmReference
Rear TypeIIReference
Rear lift3999 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase240 cmReference
Weight7452 to 7959 poundsReference
Front tire7.50-20Reference
2WD Rear tire16.9-34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 18.4-34Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 13.6-38Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
4WD Optional tires (ag)Front: 12.4-24. Rear: 13.6-36Reference
Length409 cmReference
Height (ROPS)247 cmReference
2WD Weight3380 kgReference
4WD Weight3610 kgReference
2WD Ground clearance57 cmReference
4WD Ground clearance40 cmReference
2WD Front tread139 to 189 cmReference
4WD Front tread155 to 201 cmReference
Rear tread150 to 199 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH143Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
