Tractor · 1987Unverified

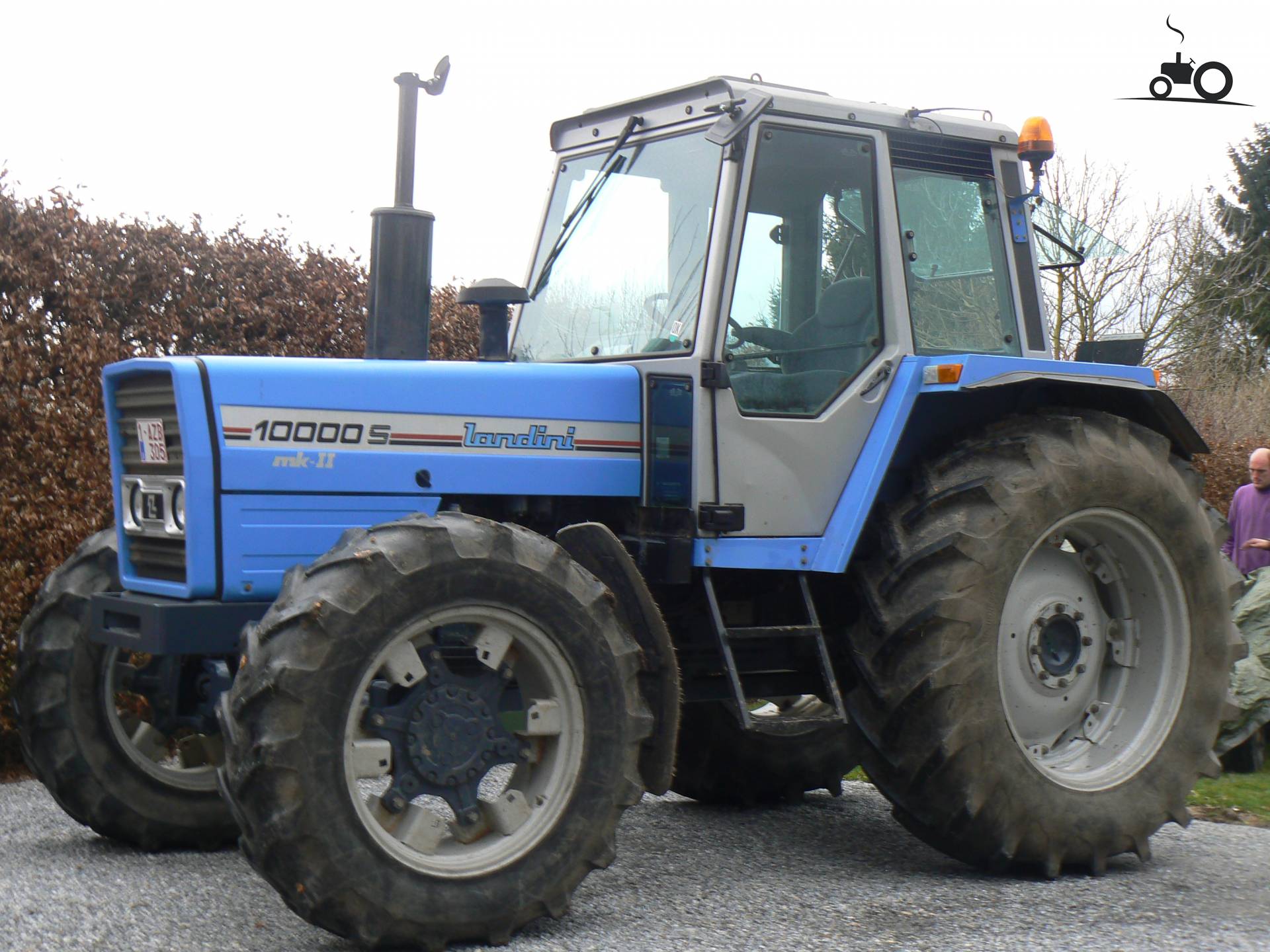

Landini 10000S
Landini 10000S — Row-Crop tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
9520 to 10251 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
1014similar Massey Ferguson modelReference
Engine
Perkins 5.8L 6-cyl dieselReference
Engine76.8 kWReference
Perkins A6.3541Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power76.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
Torque403.1 NmReference
Torque RPM1300Reference
Oil capacity16.1 LReference
Coolant capacity24.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutch304.8mm dry discReference
PTO & Hydraulics
PTO (claimed)68.6 kWReference
Hydraulic system85.2 LReference
Typeopen centerReference
Capacity85.2 LReference
Total flow53.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4250 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel157.5 LReference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase261 cmReference
Weight9520 to 10251 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-38Reference
4WD Standard tires (ag)Front: 13.6-28. Rear: 18.4-38Reference
Length440 cmReference
Width204 cmReference
Height (cab)300 cmReference
2WD Weight4318 kgReference
4WD Weight4649 kgReference
2WD Ground clearance58 cmReference
4WD Ground clearance38 cmReference
2WD Front tread160 to 199 cmReference
4WD Front tread165 cmReference
Rear tread158 to 211 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
