Tractor · 1984Unverified

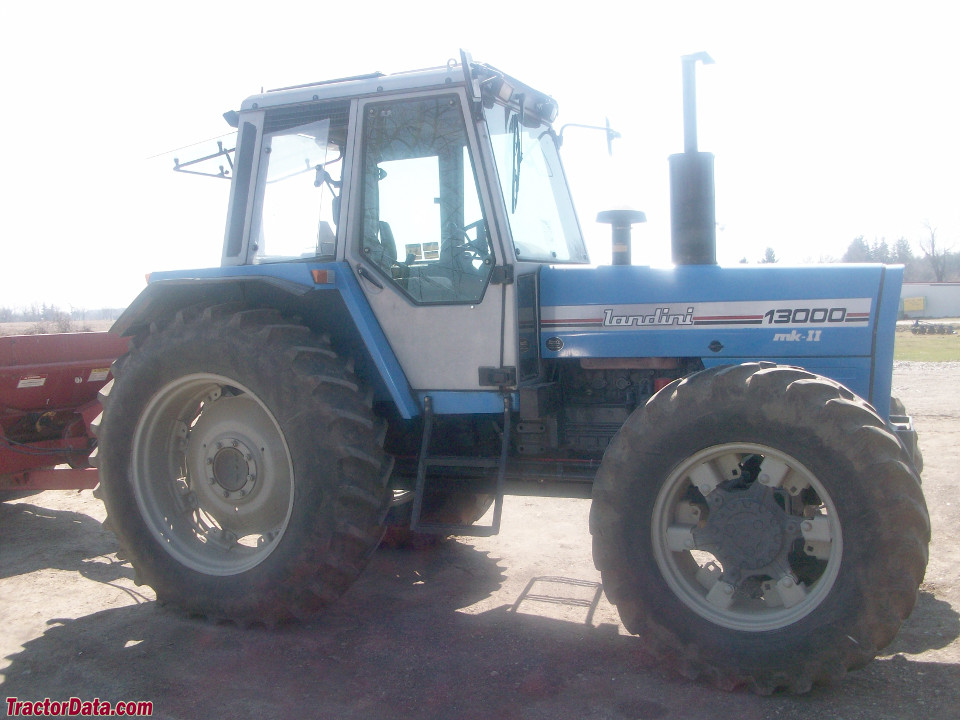

Landini 13000
Landini 13000 — Row-Crop tractor · 127 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
127 hp
Weight
4500 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Fuel tank169.9 LReference
Engine94.7 kWReference
Perkins A6.354.4Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power94.7 kWReference
Compression16:1Reference
Rated RPM2400Reference
Torque400.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutch330mm dry discReference
PTO & Hydraulics
Pump flow63.6 lpmReference
Rear TypeIII/IIReference
Rear lift5000 kgReference
Rear PTOindepnedentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase261 cmReference
Weight4500 kgReference
Front tire13.6-28Reference
Rear tire18.4-38Reference
Ag front13.6-28Reference
Ag rear18.4-38Reference
Length441 cmReference
Width258 cmReference
Height (hood)173 cmReference
Height (cab)281 cmReference
Ground clearance43 cmReference
Front tread165 cmReference
Rear tread158 to 211 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
