Tractor · 1978Unverified

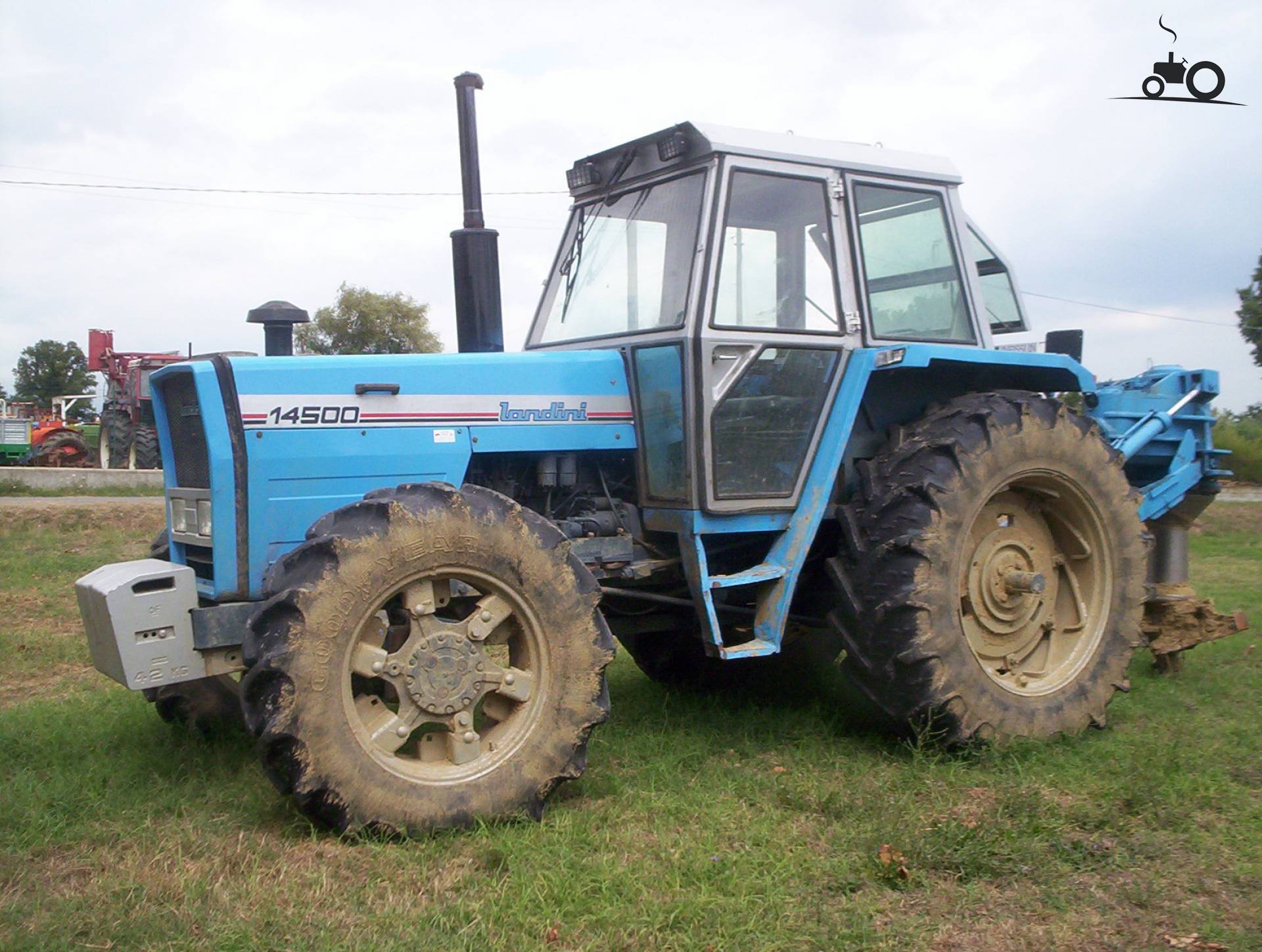

Landini 14500
Landini 14500 — Row-Crop tractor · 122 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
122 hp
Weight
11177 to 12500 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
1134similar Massey Ferguson modelReference
Engine
Perkins 5.8L 6-cyl dieselReference
Engine100.7 kWReference
Perkins AT6.354.4Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power100.7 kWReference
Rated RPM2400Reference
Torque461.0 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity19.9 LReference
Coolant capacity26.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutch330.2mm dry discReference
PTO & Hydraulics
PTO (claimed)91.0 kWReference
Hydraulic system80.6 LReference
Typeopen centerReference
Capacity80.6 LReference
Pump flow62.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4800 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel177.1 LReference
Dimensions
2WD Wheelbase279 cmReference
4WD Wheelbase284 cmReference
Weight11177 to 12500 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-38Reference
4WD Standard tires (ag)Front: 13.6-28. Rear: 18.4-38Reference
Length466 cmReference
Width242 cmReference
Height (cab)290 cmReference
2WD Weight5069 kgReference
4WD Weight5670 kgReference
2WD Ground clearance51 cmReference
4WD Ground clearance40 cmReference
2WD Front tread160 to 199 cmReference
4WD Front tread180 cmReference
Rear tread180 to 270 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
