Tractor · 2014Unverified

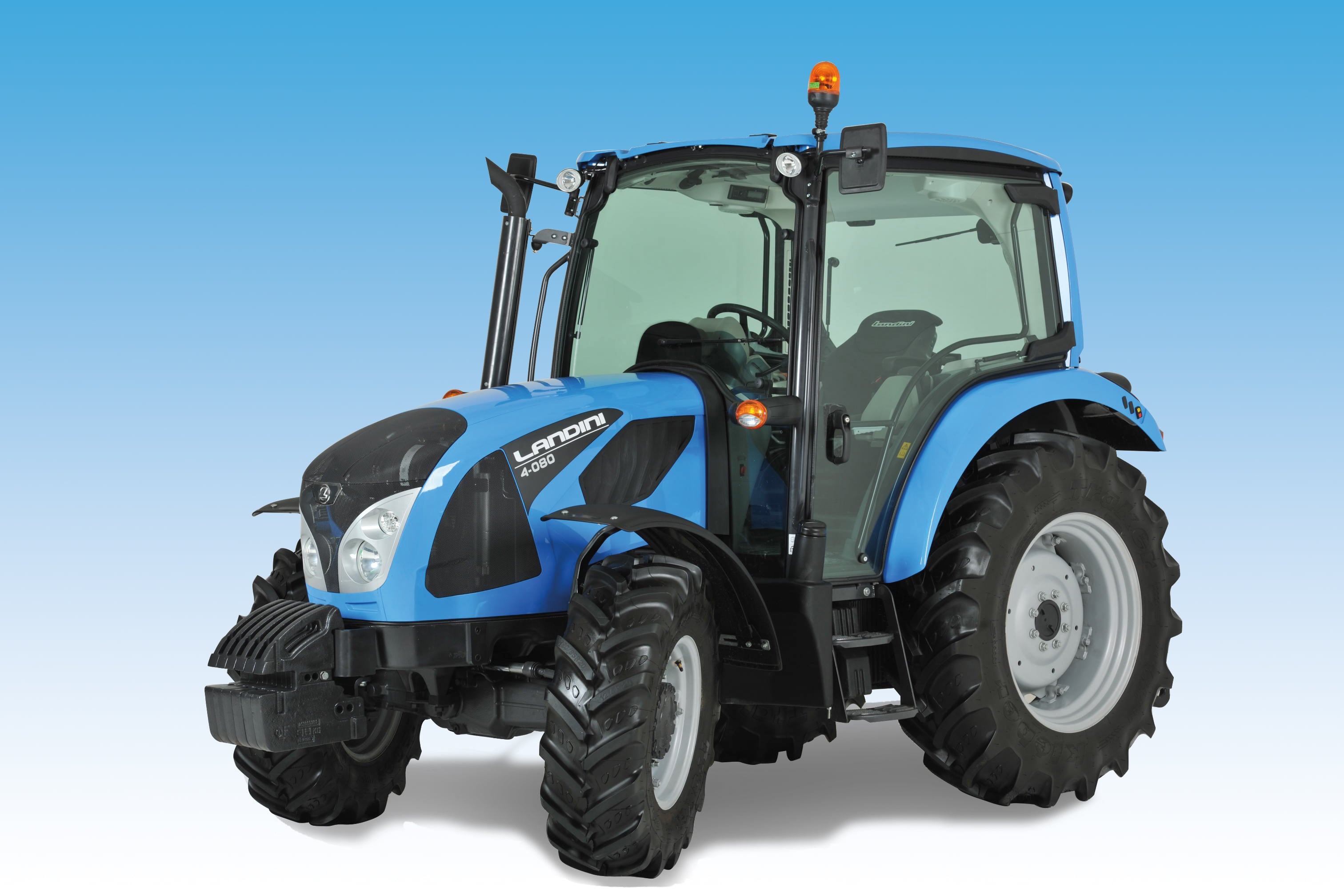

Landini 4-090

Name: Landini 4-090
Brand: Landini

Landini 4-090 — 4 Series · 71 hp. Reference specifications; pending source verification.

The Landini 4-090 is a tractor with a rated power output of 71 hp, a mid-range figure for its class. It was manufactured in 2014 and features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The tractor has an operating weight of 7025 to 7775 pounds, and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Weight

7025 to 7775 pounds

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

71 hp

Recorded weight

3186 kg

Transmissions

12-speed partially synchronized

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Utility tractorReference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Deutz 3.6L 4-cyl dieselReference

Fuel tank120.0 LReference

Engine63.4 kWReference

Deutz C4DT62Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke98 x 120 mmReference

EmissionsInterim Tier IVReference

Emission controlcooled exhaust gas recirculation with diesel oxidation catalyst (DOC) (EGR)Reference

Power63.4 kWReference

Maximum Power67.1 kWReference

Fuel systemcommon railReference

Rated RPM2200Reference

Torque358.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed partially synchronizedReference

12-speed power shuttleReference

24-speed two-speed power shiftReference

Typepartially synchronizedReference

Gears12 forward and reverseReference

Clutch304.8mm dry discReference

Four synchronized gears in three ranges with mechanical shuttle. Also available with creeper range, providing 16 speeds.Reference

Typepower shuttleReference

Clutchhydraulic wet discReference

Four synchronized gears in three ranges with power shuttleReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Power Four adds a two-speed high/low power shift to the base transmission. Available with either synchronized shuttle or power shuttle.Reference

PTO & Hydraulics

PTO (claimed)52.9 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow56.8 lpmReference

Steering flow32.2 lpmReference

Rear TypeIIReference

Rear lift2699 kgReference

Rear lift3900 kgReference

Rear Armstelescopic ends and stabilizersReference

Front HitchIIReference

Front lift1749 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase223 cmReference

Weight7025 to 7775 poundsReference

Length432 cmReference

Width175 cmReference

Height (ROPS)281 cmReference

Height (cab)246 cmReference

ROPS Weight3186 kgReference

Cab Weight3526 kgReference

Flange rear axleReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
