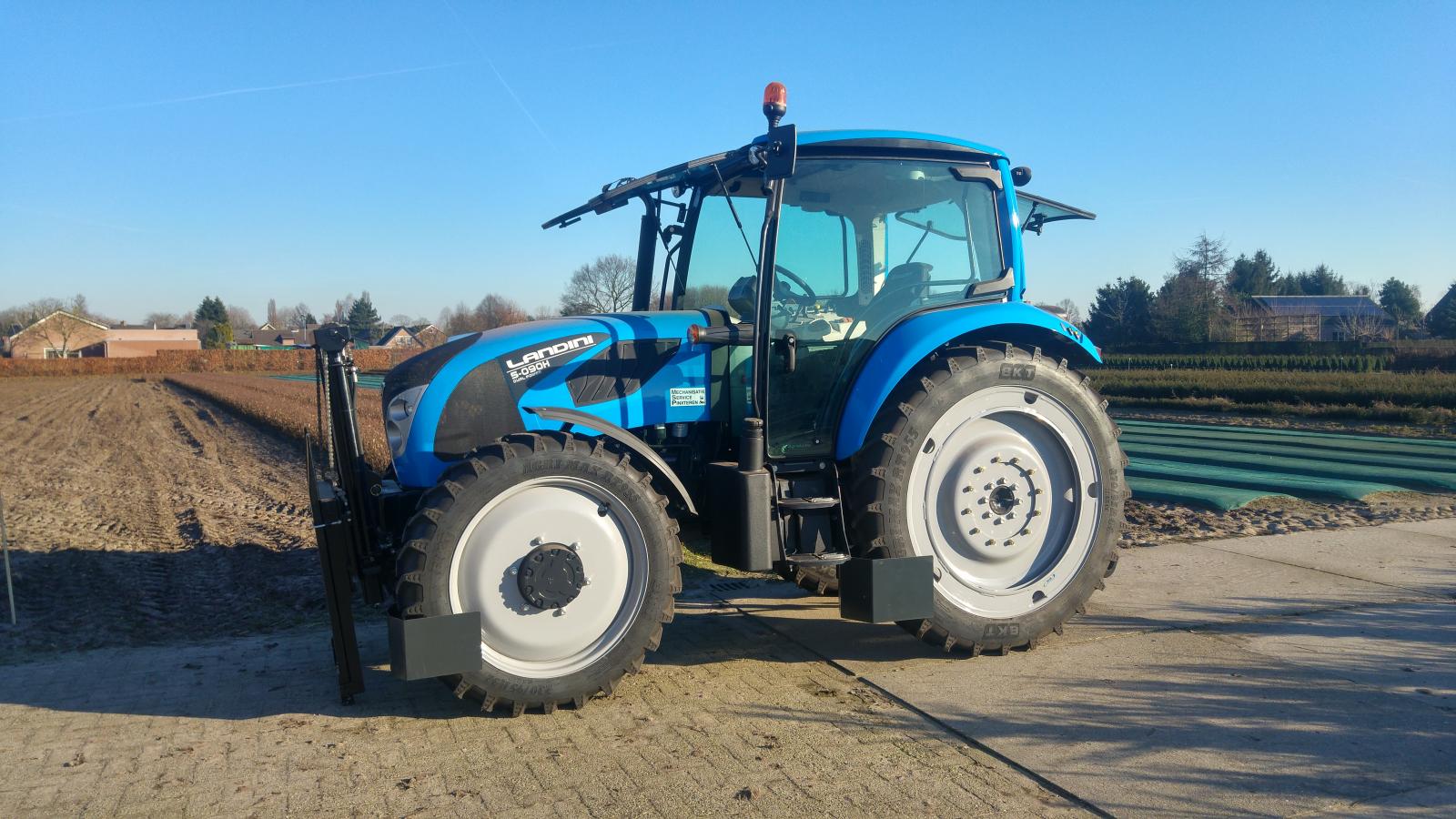

Landini 5-090H
Landini 5-090H — 5H Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
3642 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Four-wheel driveReference
Wet disc brakesReference
Powerfarm cab standard. Air-conditioning and pneumatic seat optional.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine61.9 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power61.9 kWReference
Torque352.0 NmReference
Starter typeelectricReference
Transmission
12-speed partial power shift with shuttleReference
36-speed partial power shift with hydraulic shuttleReference
24-speed partial power shift with shuttleReference
48-speed partial power shift with hydraulic shuttleReference
TransmissionSPEED FOURReference
Typepartial power shift with shuttleReference
Gears12 forward and reverseReference
Standard transmission. Three speeds with four ranges. Optional creeper range provides 16 speeds in each direction. Either with TECHNO mechanical shuttle, or TOP hydraulic shuttle.Reference
TransmissionTOP T-TRONICReference
Typepartial power shift with hydraulic shuttleReference
Gears36 forward and 12 reverseReference
The T-Tronic adds a high-medium-low power shift to the basic transmission with hydraulic shuttle.Reference
TransmissionSPEED FOUR OverdriveReference
Gears24 forward and 12 reverseReference
Overdrive on the basic transmission.Reference
TransmissionTOP T-TRONIC CreeperReference
Gears48 forward and 16 reverseReference
T-Tronic plus basic transmission with creeper increases available speeds.Reference
PTO & Hydraulics
PTO (claimed)52.6 kWReference
Valves2 to 4Reference
Pump flow52.2 lpmReference
Total flow81.8 lpmReference
Rear TypeIIReference
Rear lift4340 kgReference
Front HitchII (optional)Reference
Front lift1796 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000 (optional)Reference
Rear PTO Type540/750/1000 (optional)Reference
Rear PTO Typeground (optional)Reference
Dimensions
Wheelbase233 cmReference
Weight3642 kgReference
Front tire380/70R24Reference
Rear tire480/70R34Reference
Ag front380/70R24Reference
Ag rear480/70R34Reference
Length416 cmReference
Width210 cmReference
Height (ROPS)255 cmReference
Height (cab)256 cmReference
Ground clearance46 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
