Tractor · 2009Unverified

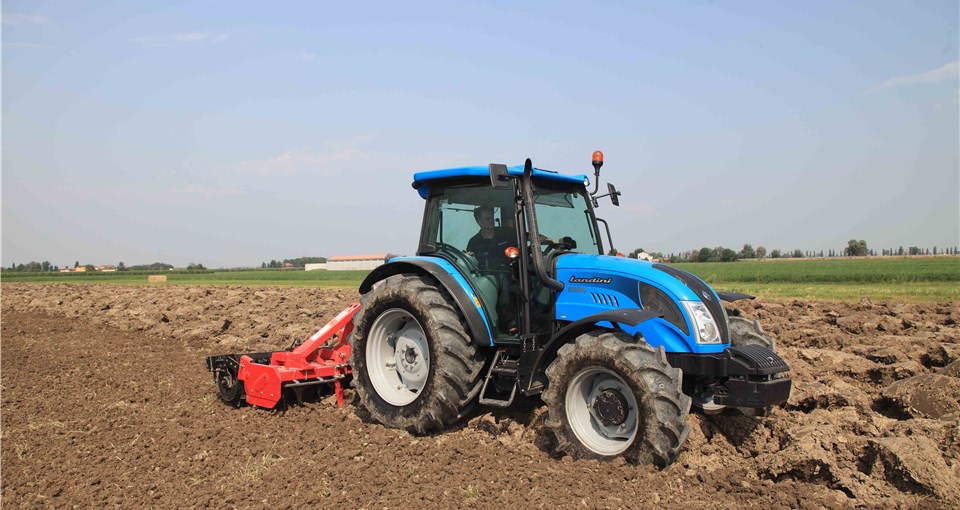

Landini 5-100H

Name: Landini 5-100H
Brand: Landini

Landini 5-100H — 5H Series · 79 hp. Reference specifications; pending source verification.

The Landini 5-100H is a tractor with a rated output of 79 hp, positioning it within the middle of its class for power. The model was manufactured from 2009 to 2012. It features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight is 3642 kg, suitable for tasks covering around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Weight

3642 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

79 hp

Recorded weight

3642 kg

Transmissions

12-speed partial power shift with shuttle

Production years

2009-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandiniReference

Four-wheel driveReference

Wet disc brakesReference

Powerfarm cab standard. Air-conditioning and pneumatic seat optional.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank102.2 LReference

Engine69.0 kWReference

Perkins 1104D-44TAReference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIIReference

Power69.0 kWReference

Torque393.1 NmReference

Starter typeelectricReference

Transmission

12-speed partial power shift with shuttleReference

36-speed partial power shift with hydraulic shuttleReference

24-speed partial power shift with shuttleReference

48-speed partial power shift with hydraulic shuttleReference

TransmissionSPEED FOURReference

Typepartial power shift with shuttleReference

Gears12 forward and reverseReference

Standard transmission. Three speeds with four ranges. Optional creeper range provides 16 speeds in each direction. Either with TECHNO mechanical shuttle, or TOP hydraulic shuttle.Reference

TransmissionTOP T-TRONICReference

Typepartial power shift with hydraulic shuttleReference

Gears36 forward and 12 reverseReference

The T-Tronic adds a high-medium-low power shift to the basic transmission with hydraulic shuttle.Reference

TransmissionSPEED FOUR OverdriveReference

Gears24 forward and 12 reverseReference

Overdrive on the basic transmission.Reference

TransmissionTOP T-TRONIC CreeperReference

Gears48 forward and 16 reverseReference

T-Tronic plus basic transmission with creeper increases available speeds.Reference

PTO & Hydraulics

PTO (claimed)58.9 kWReference

Valves2 to 4Reference

Pump flow52.2 lpmReference

Total flow81.8 lpmReference

Rear TypeIIReference

Rear lift4340 kgReference

Front HitchII (optional)Reference

Front lift1796 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000 (optional)Reference

Rear PTO Type540/750/1000 (optional)Reference

Rear PTO Typeground (optional)Reference

Dimensions

Wheelbase233 cmReference

Weight3642 kgReference

Front tire380/70R24Reference

Rear tire480/70R34Reference

Ag front380/70R24Reference

Ag rear480/70R34Reference

Length416 cmReference

Width210 cmReference

Height (ROPS)255 cmReference

Height (cab)256 cmReference

Ground clearance46 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
