Tractor · 1973Unverified

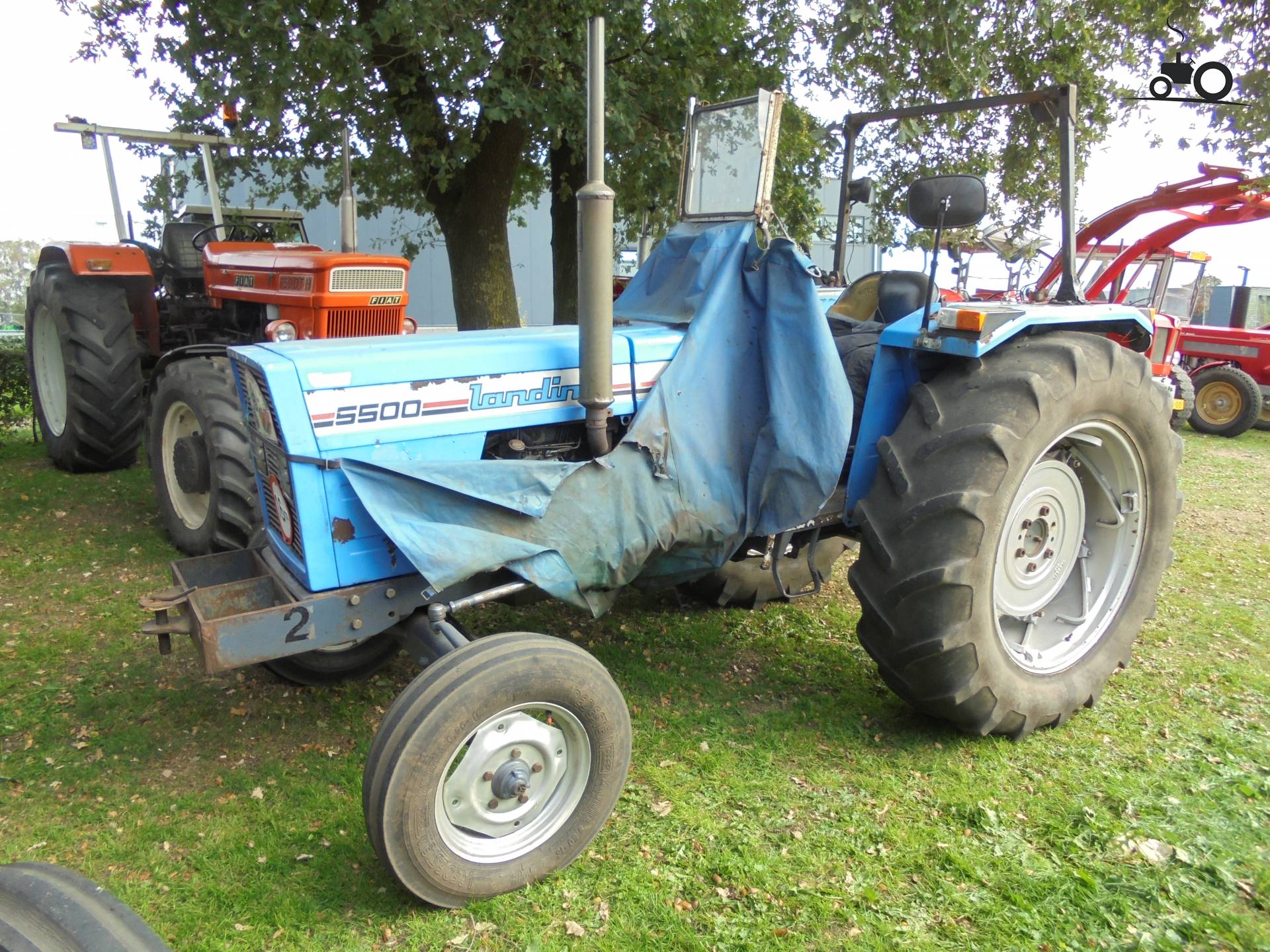

Landini 5500
Landini 5500 — Utility tractor · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
4476 to 5159 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmechanicalReference
Steeringhydrostatic powerReference
Dry disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine37.3 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power37.3 kWReference
Rated RPM2250Reference
Torque178.0 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow28.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2300 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1911Reference
Dimensions
Wheelbase205 cmReference
Weight4476 to 5159 poundsReference
Front tire6.50-16Reference
Rear tire12.4-32Reference
Ag front6.50-16Reference
Ag rear12.4-32Reference
Ag front8.3-24Reference
Length356 cmReference
Height136 cmReference
2WD Weight2030 kgReference
4WD Weight2340 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
