Tractor · 1983Unverified

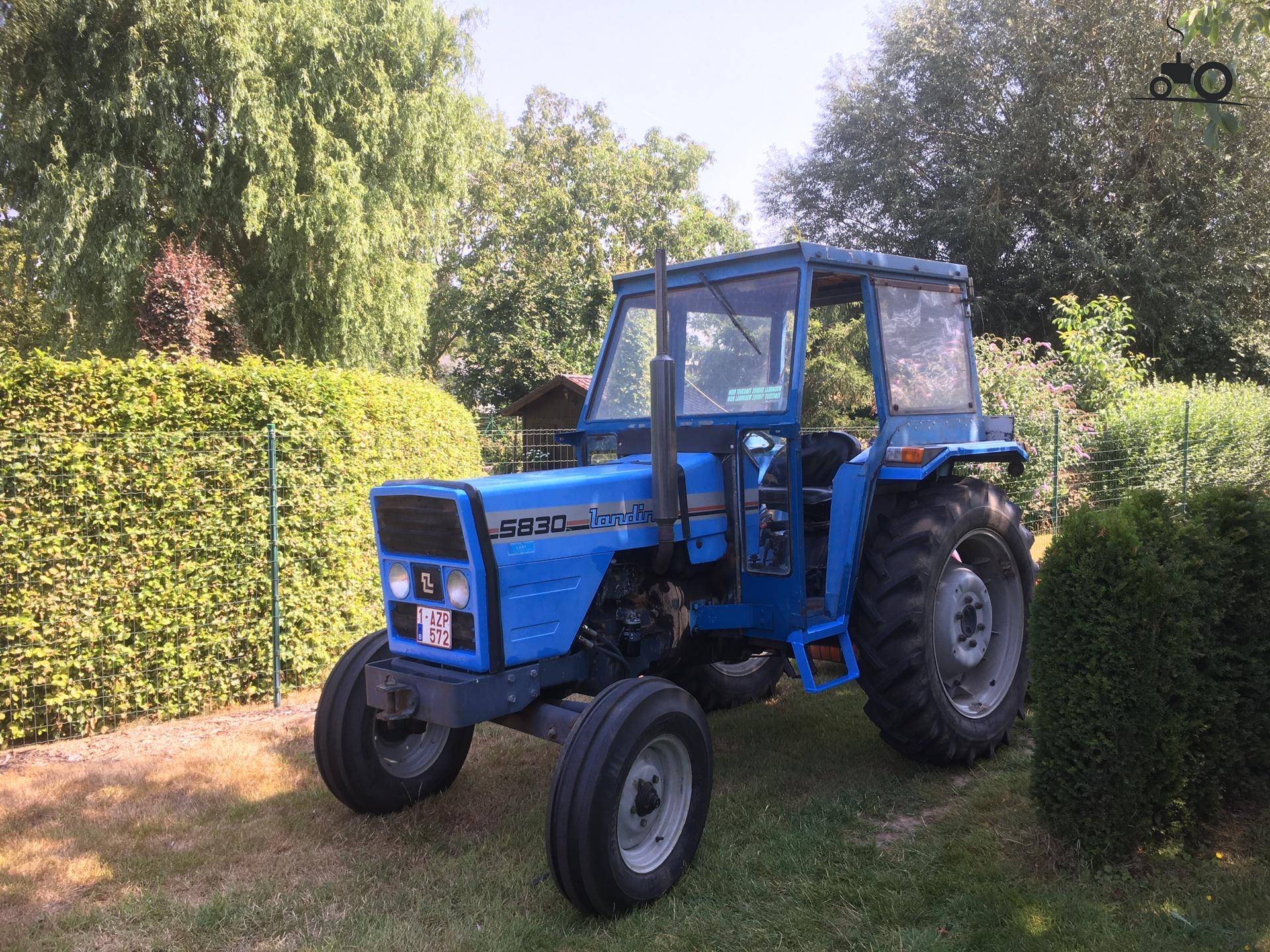

Landini 5830
Landini 5830 — 830 Series · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1950 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Massey Ferguson)Reference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank60.6 LReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutch279mm dry discReference
Four synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Typeopen centerReference
Pump flow34.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1917Reference
Dimensions
Wheelbase208 cmReference
Weight1950 kgReference
Front tire6.50-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 13.6-28Reference
Length352 cmReference
Width173 cmReference
Height (hood)136 cmReference
2WD Weight1950 kgReference
Ground clearance45 cmReference
Front tread129 to 180 cmReference
Rear tread121 to 190 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
