Tractor · 1988Unverified

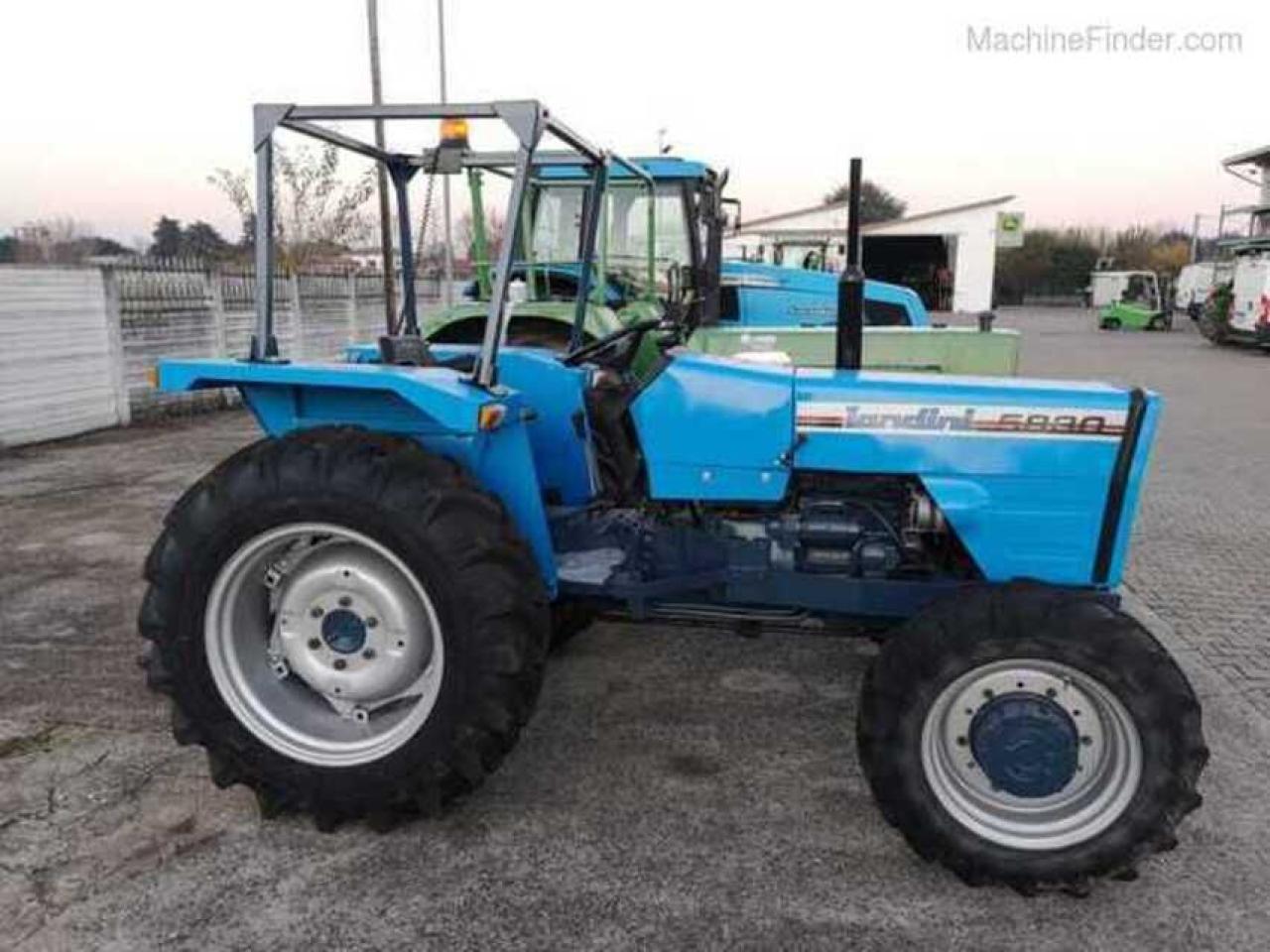

Landini 5870

Name: Landini 5870
Brand: Landini

Landini 5870 — 70 Series · 47 hp. Reference specifications; pending source verification.

The Landini 5870 is a tractor with a rated power output of approximately 47 hp, positioning it towards the lower end of its class in terms of power. It was produced from 1988 to 2000. The tractor features a 3-cylinder diesel liquid-cooled engine combined with four-wheel drive and a hydrostatic transmission. Its operating weight is specified as between 5460 and 6080 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

47 hp

Weight

5460 to 6080 pounds

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

47 hp

Recorded weight

2476 kg

Transmissions

12-speed mechanical shuttle

Production years

1988-2000

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandiniReference

Utility tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard.Reference

Variants

5860ROPSReference

5870CabinReference

Engine

Perkins 2.5L 3-cyl dieselReference

Fuel tank85.9 LReference

Engine35.0 kWReference

Perkins AD3.152Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke91 x 127 mmReference

Power35.0 kWReference

Rated RPM2250Reference

Torque171.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

Pump flow35.6 lpmReference

Rear lift2600 kgReference

Rear PTO Type540/750Reference

Dimensions

4WD Wheelbase211 cmReference

4WD Wheelbase213 cmReference

Weight5460 to 6080 poundsReference

Front tire7.50-16Reference

2WD Rear tire12.4R32Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4R32Reference

4WD Standard tires (ag)Front: 12.4R20. Rear: 14.9R28Reference

Length325 cmReference

2WD Weight2476 kgReference

4WD Weight2757 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
