Tractor · 2014Unverified

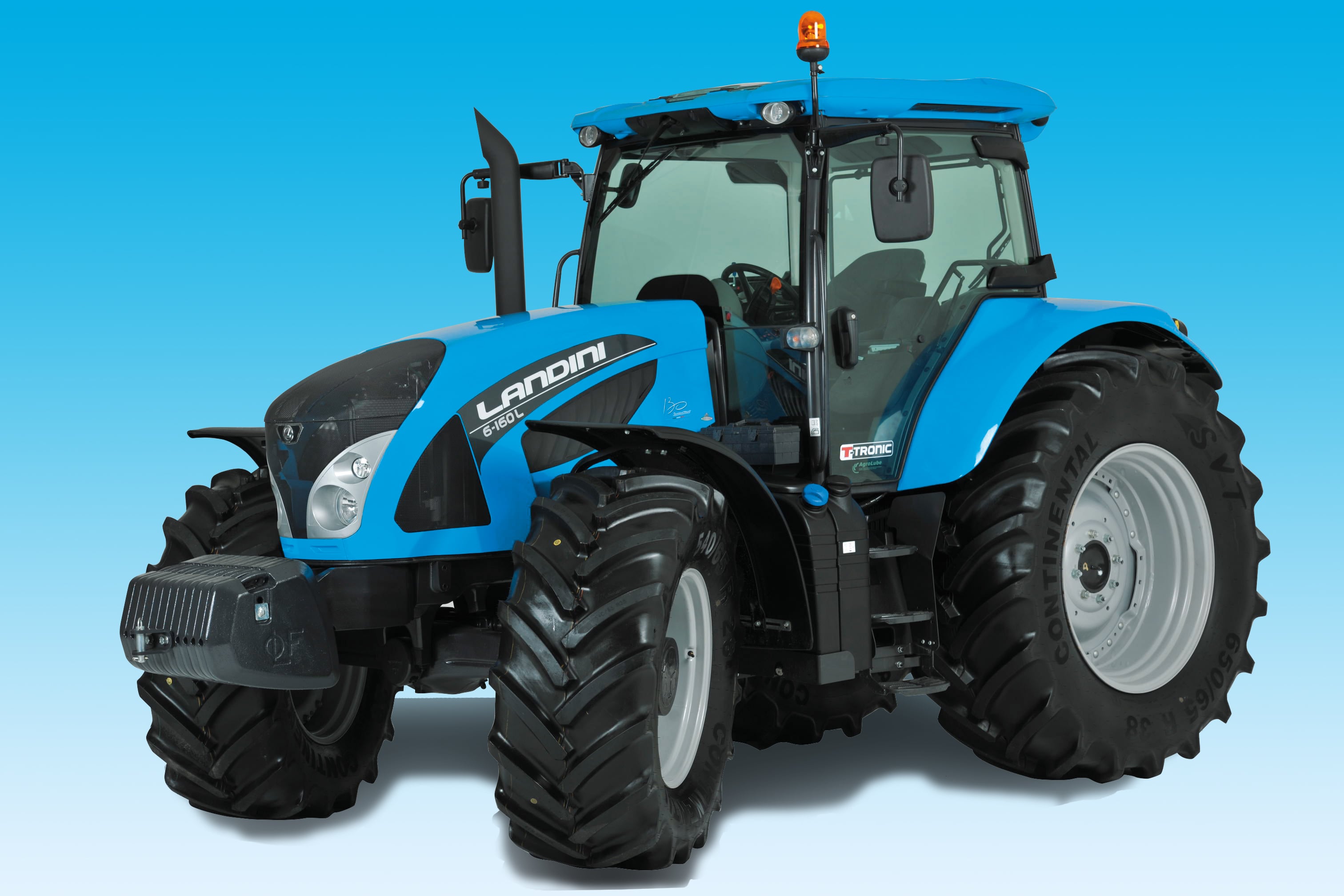

Landini 6-160L

Name: Landini 6-160L
Brand: Landini

Landini 6-160L — 6L Series · 148 hp. Reference specifications; pending source verification.

The Landini 6-160L is a tractor rated at 148 hp, positioning it at the more powerful end of its class. It was manufactured from 2014 to 2022. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight is 6137 kg, suitable for operations on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

148 hp

Weight

6137 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

148 hp

Recorded weight

6137 kg

Transmissions

18-speed mechanical shuttle

Production years

2014-2022

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Variants

X6.470similar McCormick Intl modelReference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank269.9 LReference

Exhaust fluid (DEF)37.9 LReference

Engine (gross)110.0 kWReference

Engine (max)120.0 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsStage IVReference

Rated Power (gross)110.0 kWReference

Maximum Power (gross)120.0 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Transmission

18-speed mechanical shuttleReference

54-speed three-speed power shiftReference

TransmissionSpeed-SixReference

Typemechanical shuttleReference

Gears18 forward and reverseReference

Clutchmechanical dry discReference

Six speeds in three ranges with manual shuttle shift. Also available with creeper range that doubles speeds to 36/36.Reference

TransmissionTop-TronicReference

Typethree-speed power shiftReference

Gears54 forward and 18 reverseReference

Clutchelectro-hydraulic wet discReference

Six speeds in three ranges with three-speed power shift and power shuttle. Also available with creeper range that doubles speeds to 108/36.Reference

PTO & Hydraulics

Pump flow87.1 lpmReference

SCV flow87.1 lpmReference

Total flow124.9 lpmReference

Steering flow37.9 lpmReference

Rear TypeIII/IIReference

Front HitchIIReference

Front lift3499 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase271 cmReference

Weight6137 kgReference

Front tire480/65R28Reference

Rear tire650/65R38Reference

Standard tires (ag)Front: 480/65R28. Rear: 650/65R38Reference

Length525 cmReference

Height (cab)279 cmReference

Flange rear axleReference

Bar rear axleReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
