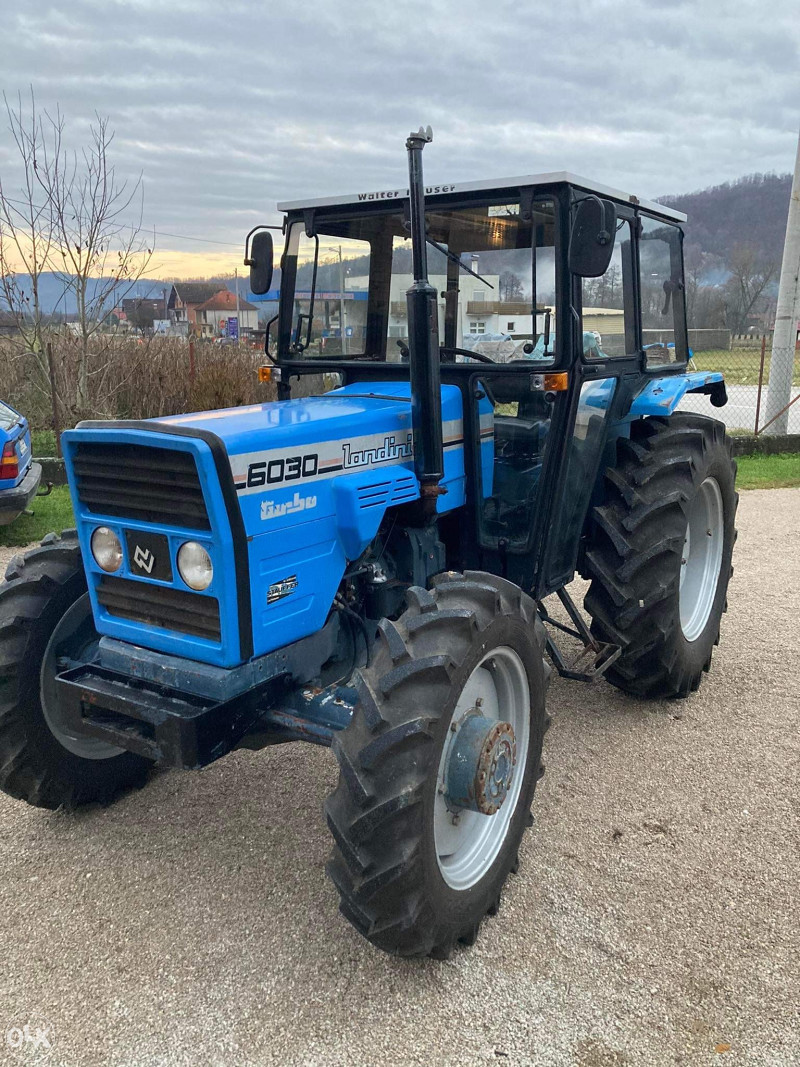

The Landini 6030 is a tractor with a rated power output of 56 hp, categorising it at the lighter end of its class. It was manufactured from 1983 to 1987, and is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine, four-wheel drive and a 12-speed gearbox. The operating weight of the tractor is listed as between 4741 and 5292 pounds. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
4741 to 5292 pounds
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
56 hp
Recorded weight
2150 kg
Transmissions
12-speed synchromesh
Production years
1983-1987
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Massey Ferguson)Reference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank60.9 LReference
Engine41.8 kWReference
Perkins AT3.1524Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power41.8 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Four synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow36.0 lpmReference
Rear TypeIIReference
Rear lift2550 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1917Reference
Dimensions
Wheelbase213 cmReference
Weight4741 to 5292 poundsReference
Front tire7.50-18Reference
Rear tire12.4-36Reference
Ag front7.50-18Reference
Ag rear12.4-36Reference
Ag front9.5-24Reference
Ag rear14.9-30Reference
Length377 cmReference
2WD Weight2150 kgReference
4WD Weight2400 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
