Tractor · 1988Unverified

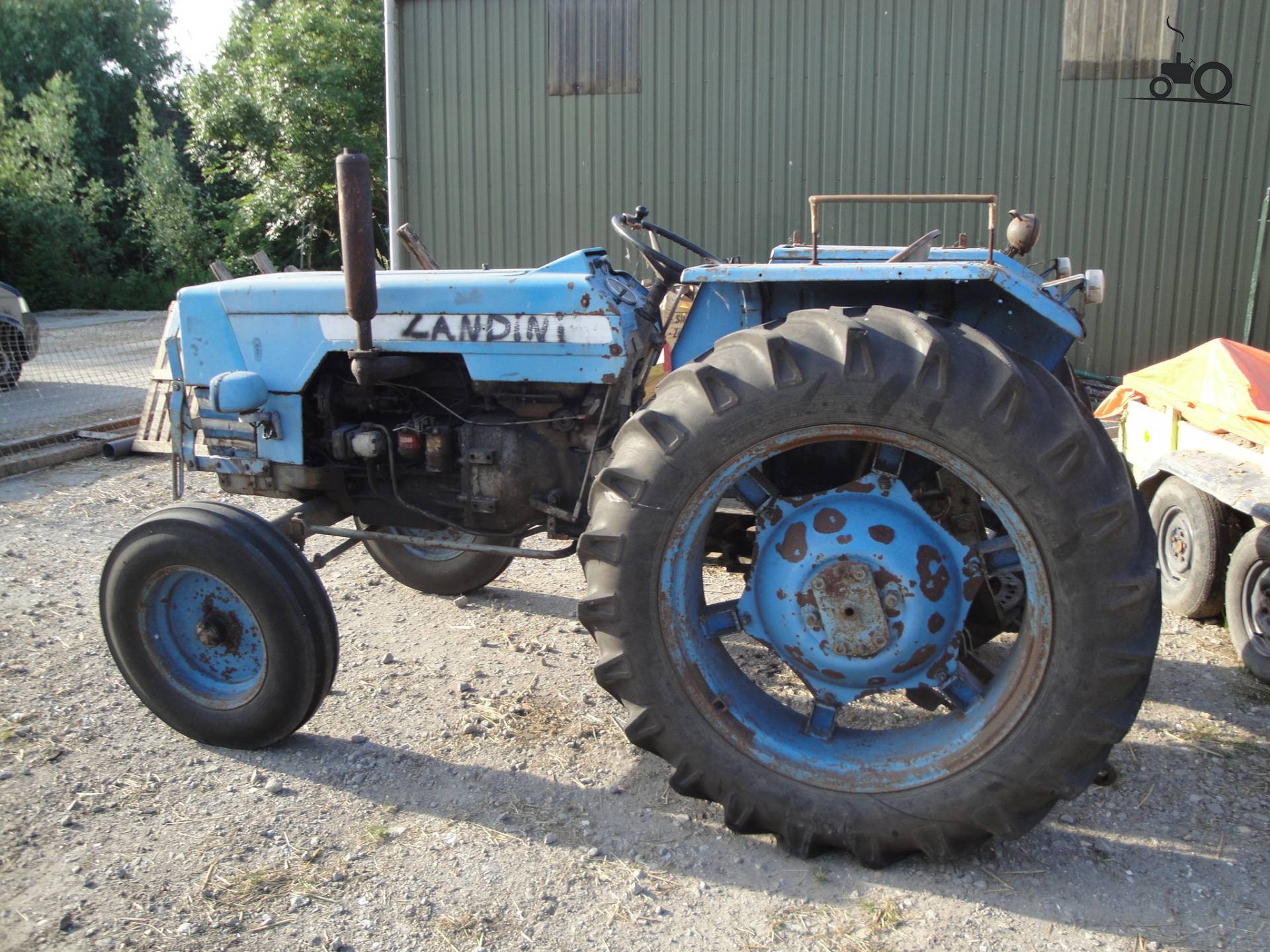

Landini 6070
Landini 6070 — 70 Series · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
5725 to 6350 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Variants
6060ROPSReference
6070CabinReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank85.9 LReference
Engine43.3 kWReference
Perkins AT3.152Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power43.3 kWReference
Rated RPM2250Reference
Torque202.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow35.6 lpmReference
Rear lift2600 kgReference
Rear PTO Type540/750Reference
Dimensions
4WD Wheelbase211 cmReference
4WD Wheelbase213 cmReference
Weight5725 to 6350 poundsReference
Front tire7.50-18Reference
2WD Rear tire12.4R36Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 12.4R36Reference
4WD Standard tires (ag)Front: 11.2R24. Rear: 12.4R36Reference
Length325 cmReference
2WD Weight2596 kgReference
4WD Weight2880 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
