Tractor · 1983Unverified

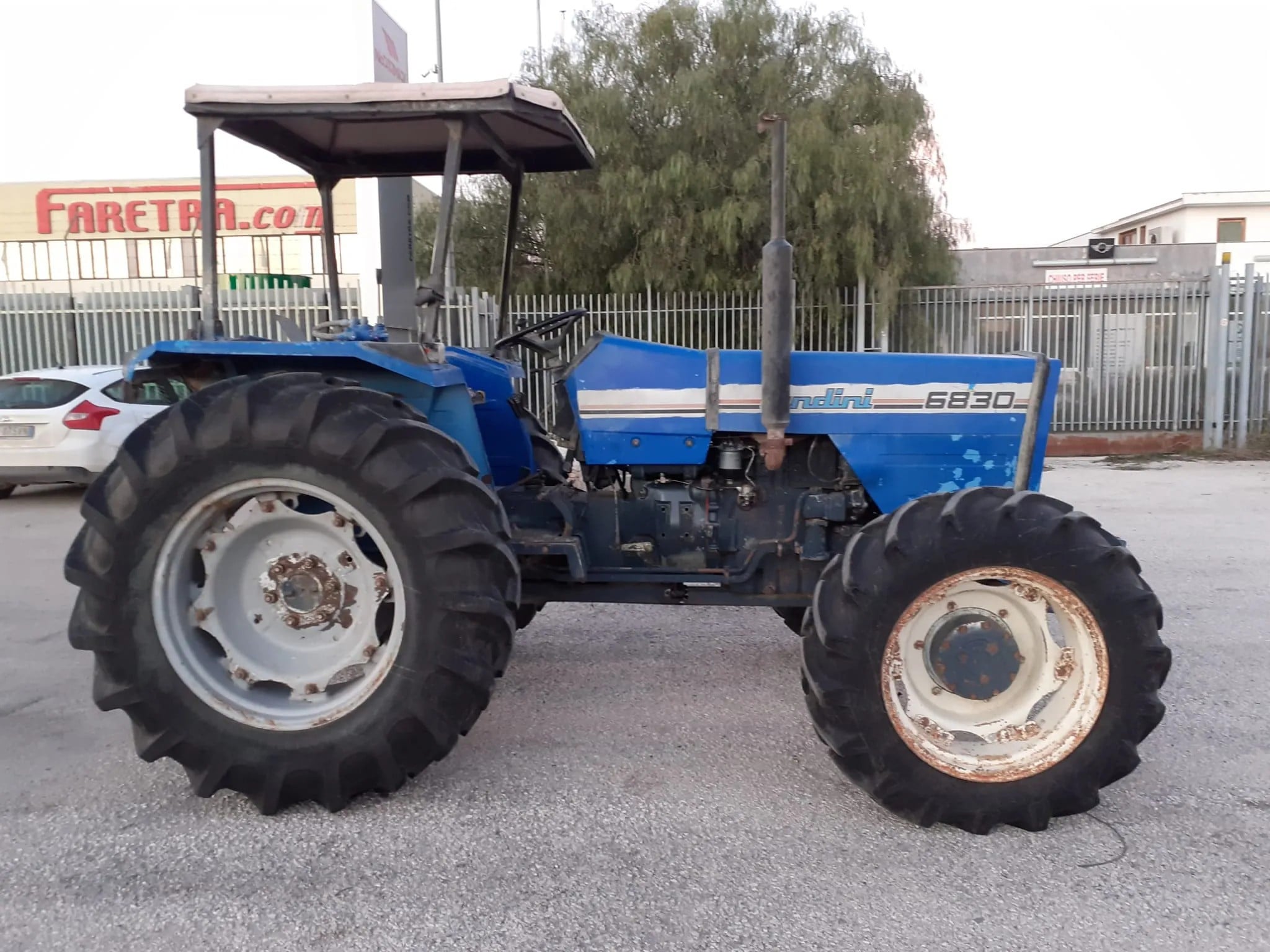

Landini 6830
Landini 6830 — 830 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
5072 to 5623 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Massey Ferguson)Reference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab available.Reference
Variants
68302WDReference
6830/44WDReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank62.1 LReference
Engine48.5 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power48.5 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque256.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Four synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
Typeopen centerReference
Total flow36.0 lpmReference
Rear TypeIIReference
Rear lift2550 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1917Reference
Dimensions
Wheelbase217 cmReference
Weight5072 to 5623 poundsReference
Front tire7.50-18Reference
Rear tire12.4-36Reference
Ag front7.50-18Reference
Ag rear12.4-36Reference
Ag front11.2-24Reference
Ag rear16.9-30Reference
Length390 cmReference
Height228 cmReference
2WD Weight2300 kgReference
4WD Weight2550 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
