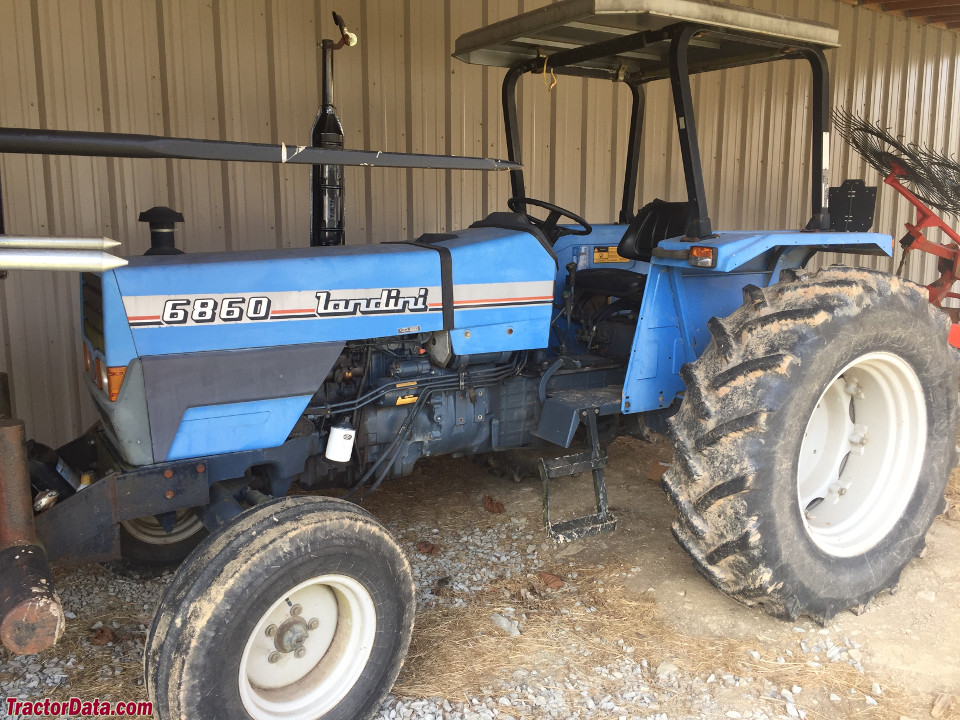

The Landini 6860 is a tractor with an output of 65 hp, positioning it within the middle of its class in terms of power. Manufactured from 1988 to 2000, it features a 4-cylinder diesel liquid-cooled engine, powering a four-wheel drive system via a hydrostatic transmission. The listed weight range for the tractor is 5530 to 6100 pounds. It is designed for use on areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
5530 to 6100 pounds
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
65 hp
Recorded weight
2508 kg
Transmissions
12-speed mechanical shuttle
Production years
1988-2000
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Four-post ROPS.Reference
Variants
6860ROPSReference
6870CabinReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank85.9 LReference
Engine48.5 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power48.5 kWReference
Rated RPM2200Reference
Torque251.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow35.6 lpmReference
Rear lift2600 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase226 cmReference
Weight5530 to 6100 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 12.4R24. Rear: 16.9R30Reference
Length342 cmReference
2WD Weight2508 kgReference
4WD Weight2766 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
