Tractor · 1988Unverified

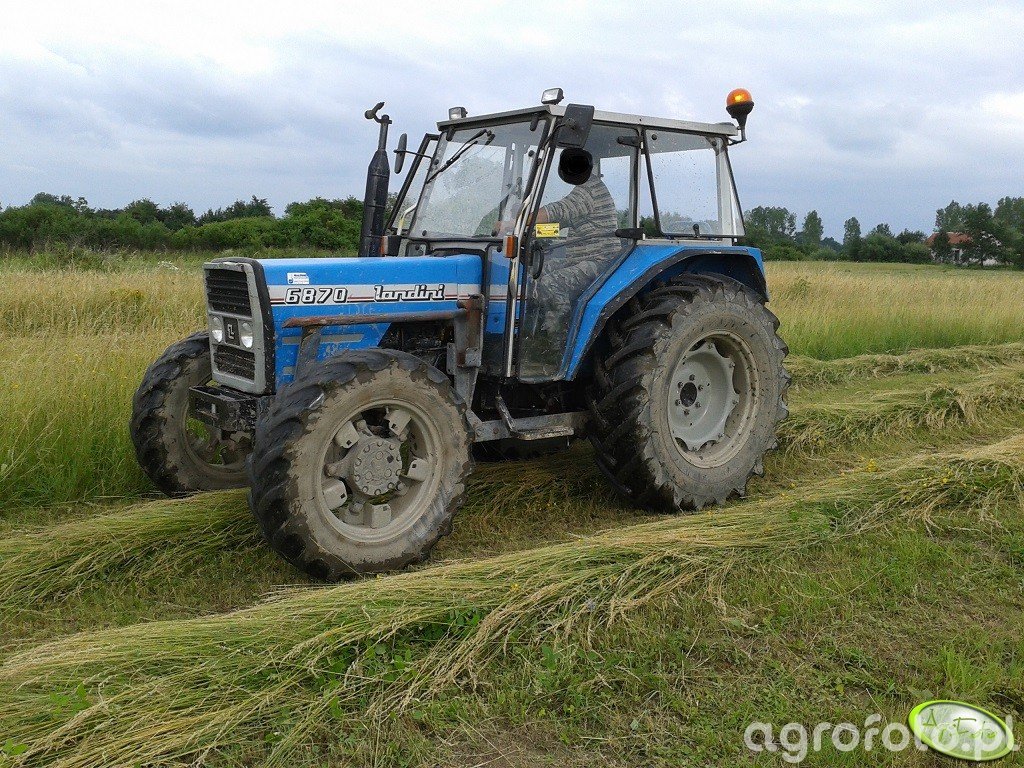

Landini 6870
Landini 6870 — 70 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
6035 to 6610 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Variants
6860ROPSReference
6870CabinReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank85.9 LReference
Engine48.5 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power48.5 kWReference
Rated RPM2200Reference
Torque251.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow35.6 lpmReference
Rear lift2600 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase226 cmReference
Weight6035 to 6610 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 12.4R24. Rear: 16.9R30Reference
Length342 cmReference
2WD Weight2737 kgReference
4WD Weight2998 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
