Tractor · 1987Unverified

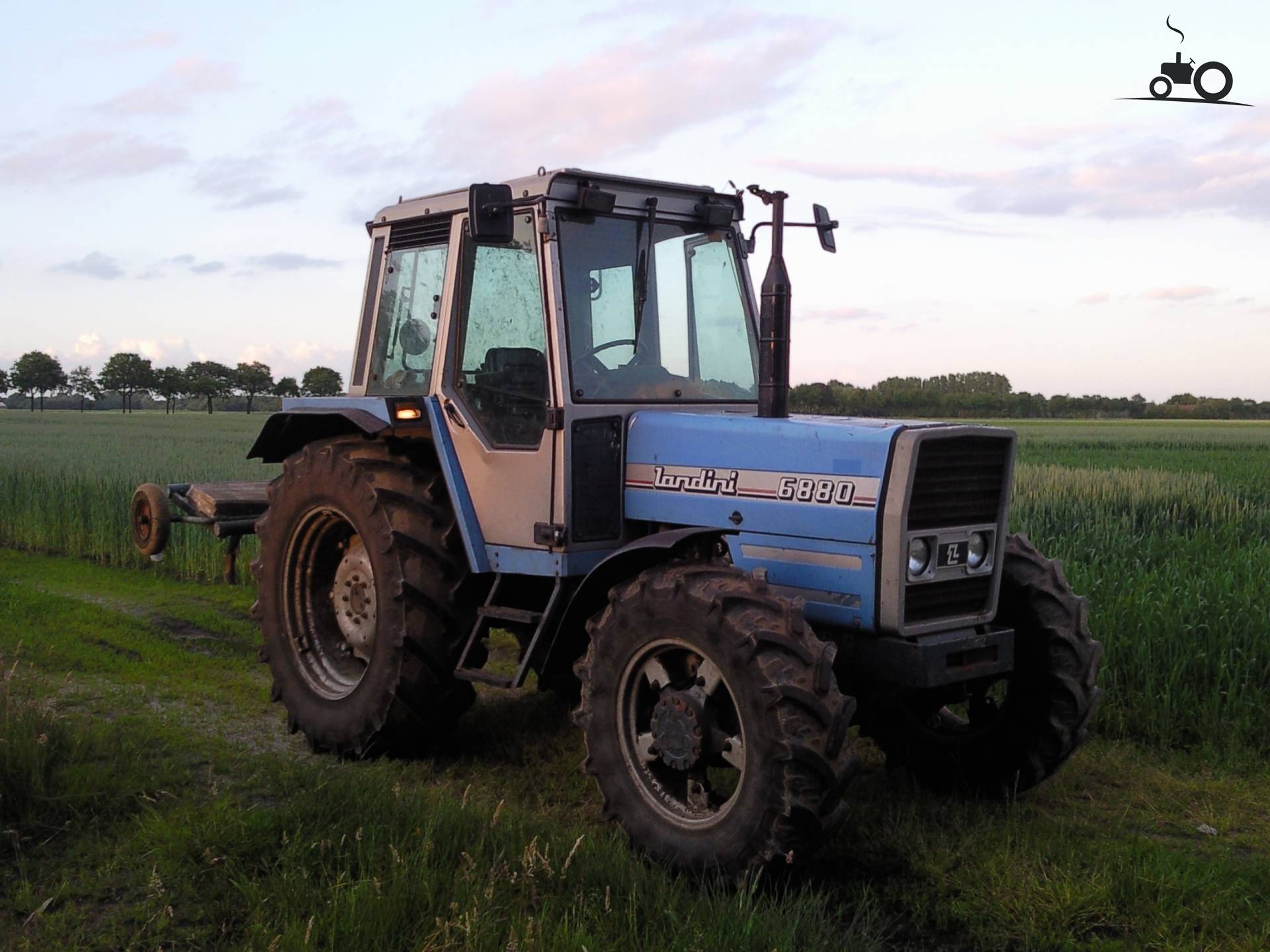

Landini 6880
Landini 6880 — 80 Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
6923 to 7584 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockhydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with available air-conditioning.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine46.2 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power46.2 kWReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM2200Reference
Torque243.0 NmReference
Torque RPM1400Reference
Transmission
12-speed synchromeshReference
12-speed shuttleReference
24-speed synchromeshReference
24-speed creeperReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Four gears in three ranges.Reference
TypeshuttleReference
Gears12 forward and reverseReference
Four gears in three ranges with shuttle.Reference
Gears24 forward and 12 reverseReference
The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%.Reference
TypecreeperReference
PTO & Hydraulics
Total flow42.4 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/750Reference
Engine RPM540@1944Reference
Engine RPM1000@1917Reference
Engine RPM750@1934Reference
Dimensions
2WD Wheelbase240 cmReference
4WD Wheelbase238 cmReference
Weight6923 to 7584 poundsReference
Front tire7.50-16Reference
Rear tire16.9R30Reference
Ag front7.50-16Reference
Ag rear16.9R30Reference
Ag front12.4R24Reference
Length378 cmReference
Width183 cmReference
Height (cab)257 cmReference
2WD Weight3140 kgReference
4WD Weight3440 kgReference
4WD Clearance (front axle)41 cmReference
Electrical
Charging systemalternatorReference
Speeds
With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward.Reference
With 16.9/14-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
