Tractor · 1973Unverified

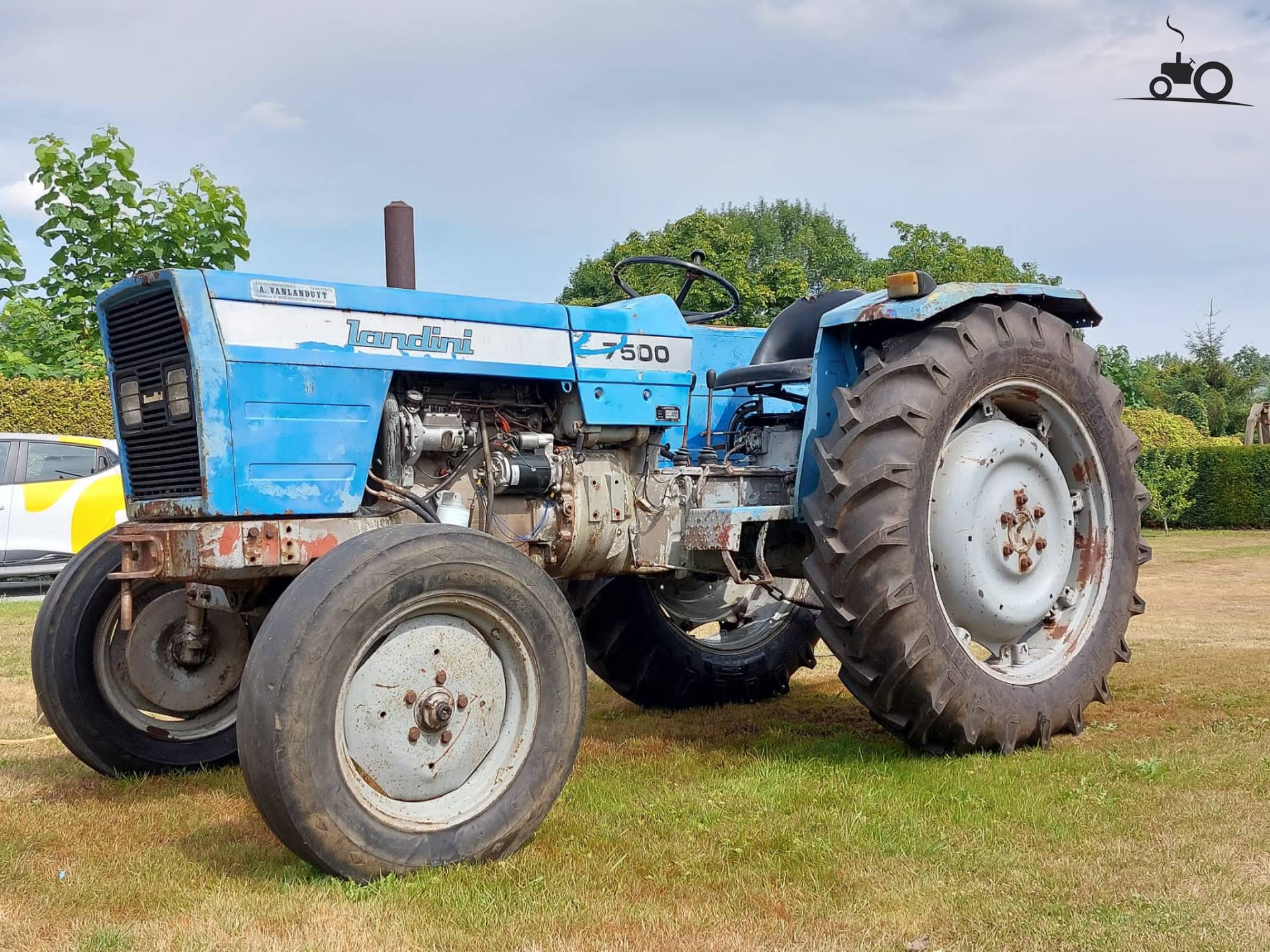

Landini 7500
Landini 7500 — Utility tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5490 to 5998 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmechanicalReference
Steeringhydrostatic powerReference
Dry disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine52.2 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power52.2 kWReference
Rated RPM2200Reference
Torque260.1 NmReference
Torque RPM1200Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry dscReference
PTO & Hydraulics
Pump flow28.4 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/ground (1.375)Reference
Rear PTO Type1000Reference
Dimensions
2WD Wheelbase224 cmReference
Weight5490 to 5998 poundsReference
Front tire7.50-16Reference
Rear tire12.4-36Reference
Ag front7.50-16Reference
Ag rear12.4-36Reference
Ag front11.2-24Reference
Ag rear16.9-30Reference
Length362 cmReference
2WD Height (hood)143 cmReference
Height (ROPS)232 cmReference
2WD Weight2490 kgReference
4WD Weight2720 kgReference
Front tread139 to 189 cmReference
Rear tread130 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
