Tractor · 1983Unverified

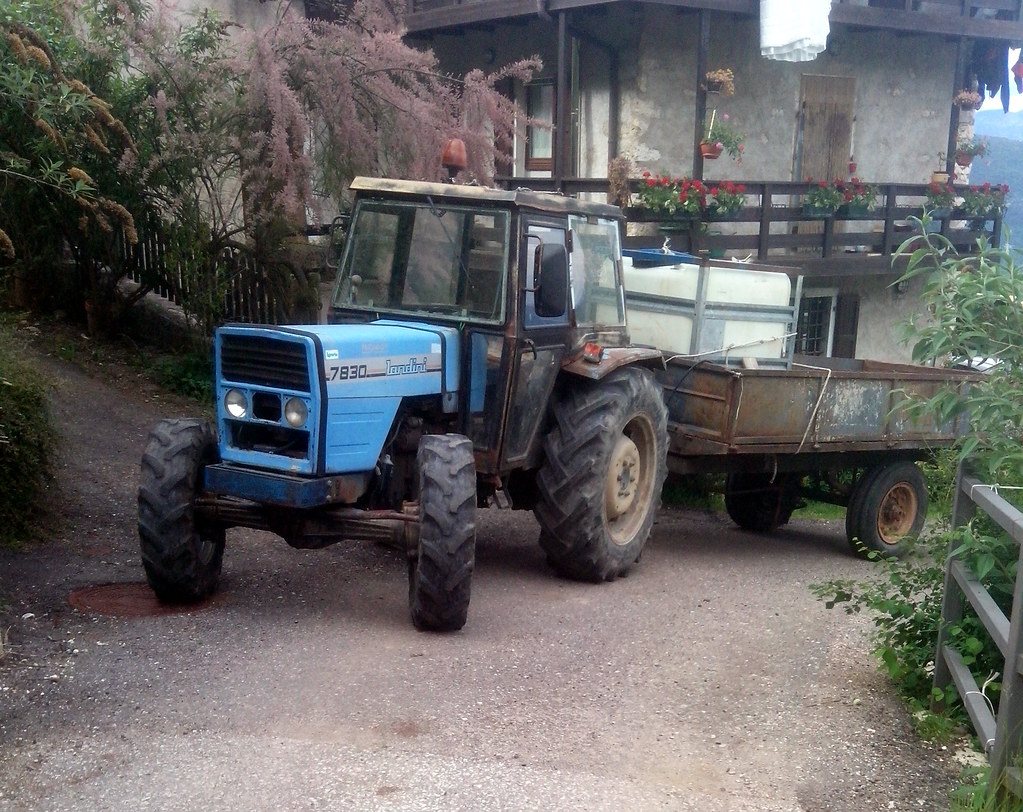

Landini 7830
Landini 7830 · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
5513 to 6064 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Massey Ferguson)Reference
Built in ItalyReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank62.1 LReference
Engine53.7 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power53.7 kWReference
Rated RPM2200Reference
Torque268.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Four synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
Typeopen centerReference
Total flow36.0 lpmReference
Rear TypeIIReference
Rear lift2550 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1917Reference
Dimensions
Wheelbase224 cmReference
Weight5513 to 6064 poundsReference
Front tire7.50-20Reference
2WD Rear tire13.6-38Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 13.6-38Reference
4WD Standard tires (ag)Front: 11-24. Rear: 13.6-38Reference
Length379 cmReference
Height (hood)143 cmReference
Height (ROPS)233 cmReference
2WD Weight2500 kgReference
4WD Weight2750 kgReference
2WD Front tread139 to 189 cmReference
4WD Front tread155 cmReference
Rear tread130 to 199 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
