Tractor · 1988Unverified

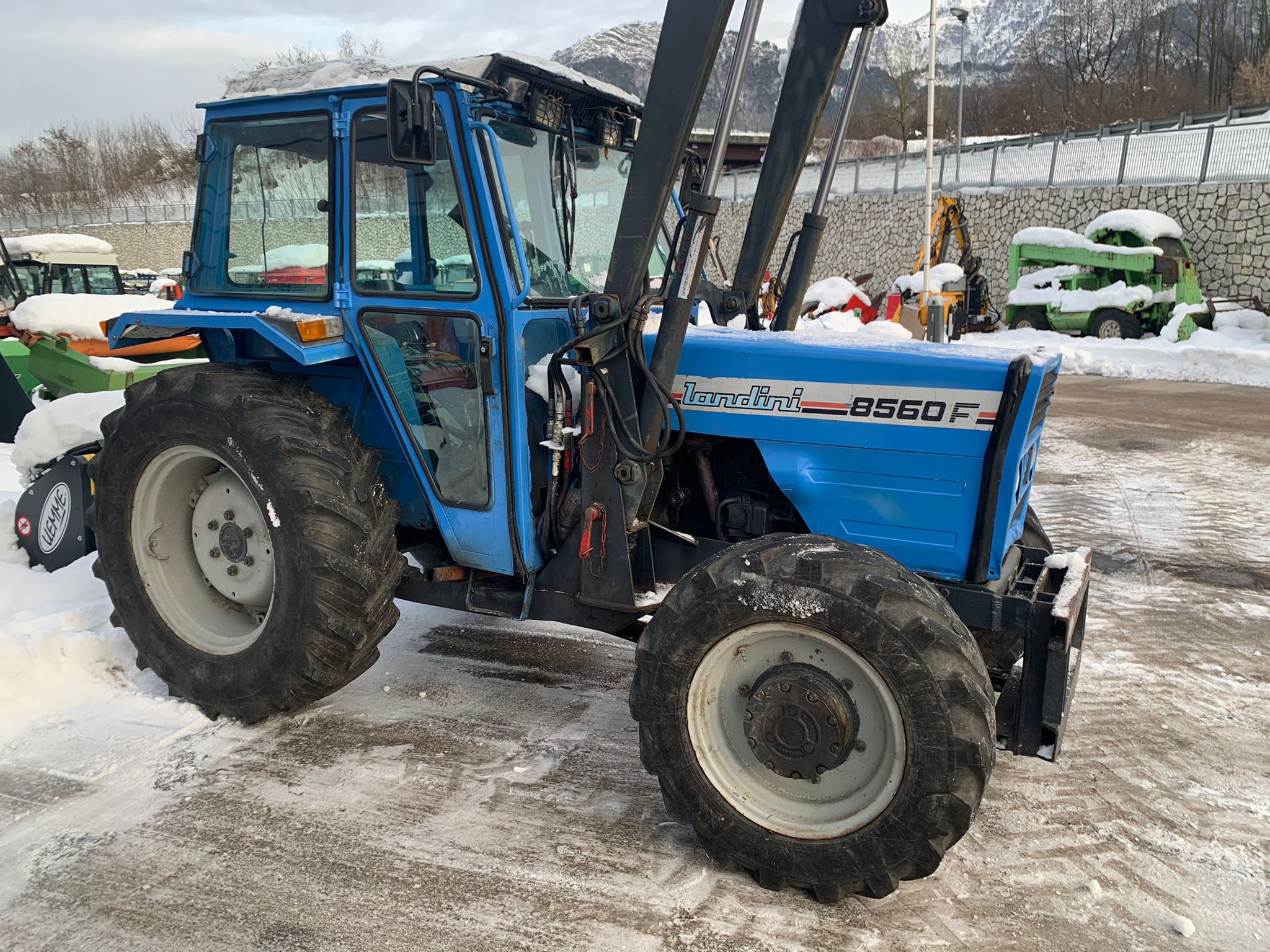

Landini 8560F
Landini 8560F — Orchard/Vineyard tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Two-post mid-mount ROPS.Reference
Variants
8560ForchardReference
8560Lwide orchardReference
Engine
Perkins 4.1L 4-cyl dieselReference
Engine59.7 kWReference
Perkins 4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power59.7 kWReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncromeshReference
24-speed creeperReference
TypesyncromeshReference
Gears12 forward and 4 reverseReference
Clutch279.4mm mechanical dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Electrical
GroundnegativeReference
Charging systemLucas A115Reference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
