Tractor · 1983Unverified

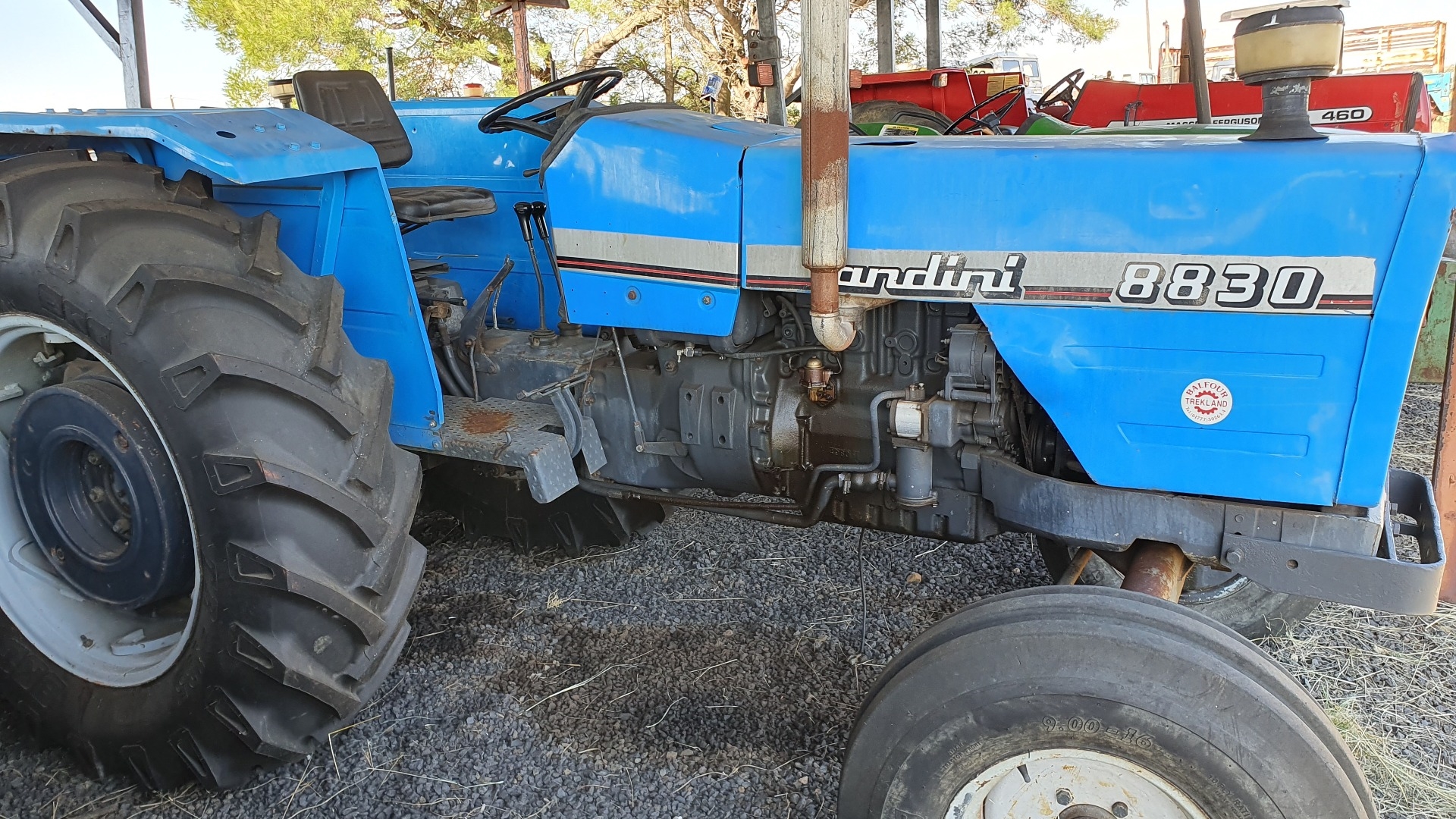

Landini 8830
Landini 8830 — 830 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
6020 to 6571 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Massey Ferguson)Reference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Four-post ROPS.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine59.7 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power59.7 kWReference
Fuel systemdirect injectionReference
Compression16:1Reference
Rated RPM2100Reference
Idle RPM600-2210Reference
Torque291.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutch279mm dry discReference
Four synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
Total flow36.0 lpmReference
Rear TypeIIReference
Rear lift2550 kgReference
Rear lift3724 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1917Reference
Dimensions
Wheelbase227 cmReference
Weight6020 to 6571 poundsReference
Front tire7.50-20Reference
Rear tire16.9-34Reference
Ag front7.50-20Reference
Ag rear16.9-34Reference
Ag front13.6-24Reference
Length381 cmReference
Height236 cmReference
2WD Weight2730 kgReference
4WD Weight2980 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
