Tractor · 1988Unverified

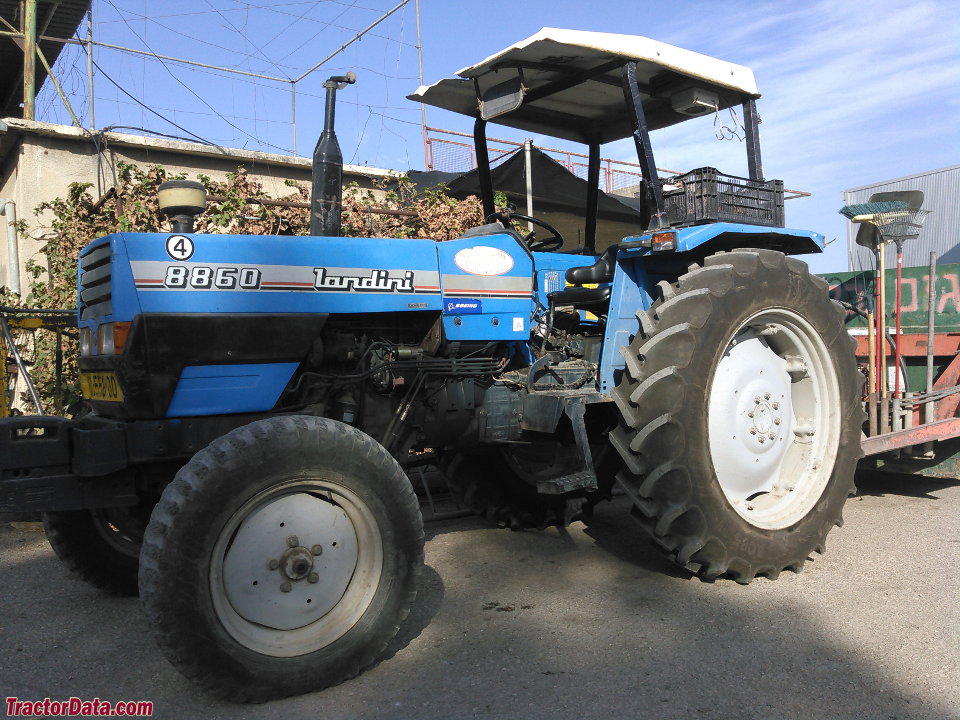

Landini 8860
Landini 8860 — 60 Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
3152 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS.Reference
Variants
8860ROPSReference
8870CabinReference
Engine
Perkins 4.1L 4-cyl dieselReference
Perkins 4.4L 4-cyl dieselReference
Fuel tank85.9 LReference
Engine62.3 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Torque285.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Perkins 1104A-44Reference
The Perkins 1104 was a non-emissions control engine sold in marketed outside of Europe.Reference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power62.3 kWReference
Fuel systemdirect injectionReference
Torque288.8 NmReference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow35.6 lpmReference
Rear lift2600 kgReference
Rear PTO Type540/750Reference
Dimensions
2WD Wheelbase233 cmReference
4WD Wheelbase231 cmReference
Weight3152 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
Length381 cmReference
Width186 cmReference
Height (steering wheel)171 cmReference
Height (ROPS)259 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
