Tractor · 1988Unverified
Landini 8870
Landini 8870 — 70 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
3379 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Variants

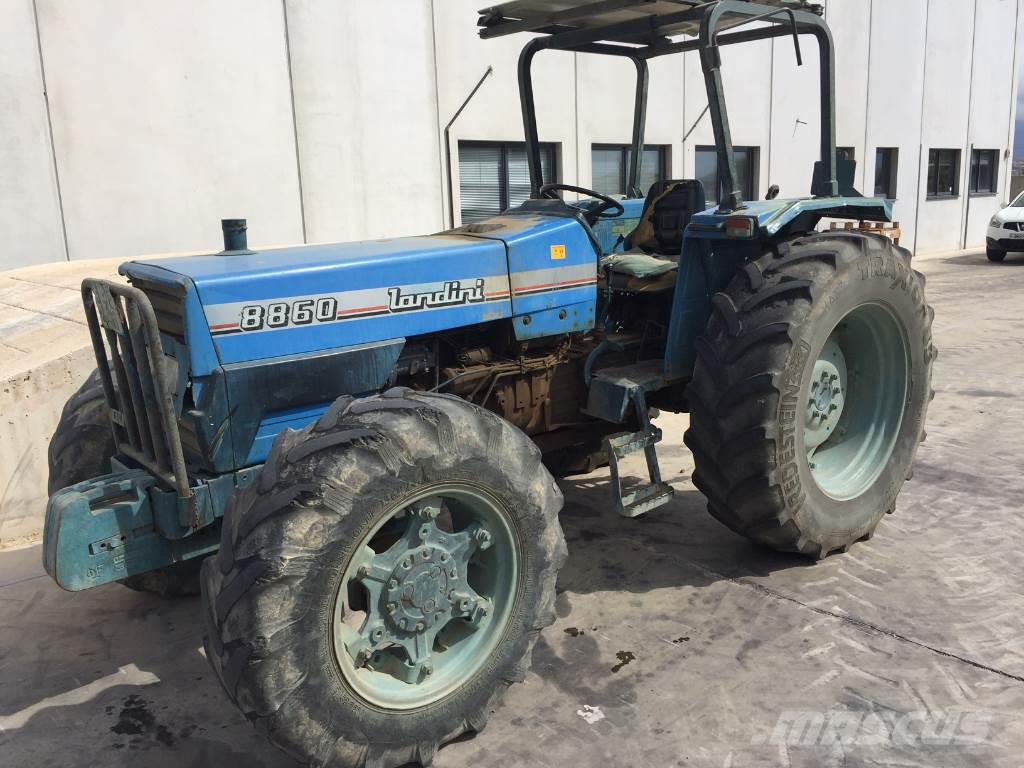

8860ROPSReference
8870CabinReference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank85.9 LReference
Engine59.7 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Torque285.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow35.6 lpmReference
Rear lift2600 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase231 cmReference
Weight3379 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
Length375 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
