Tractor · 1987Unverified

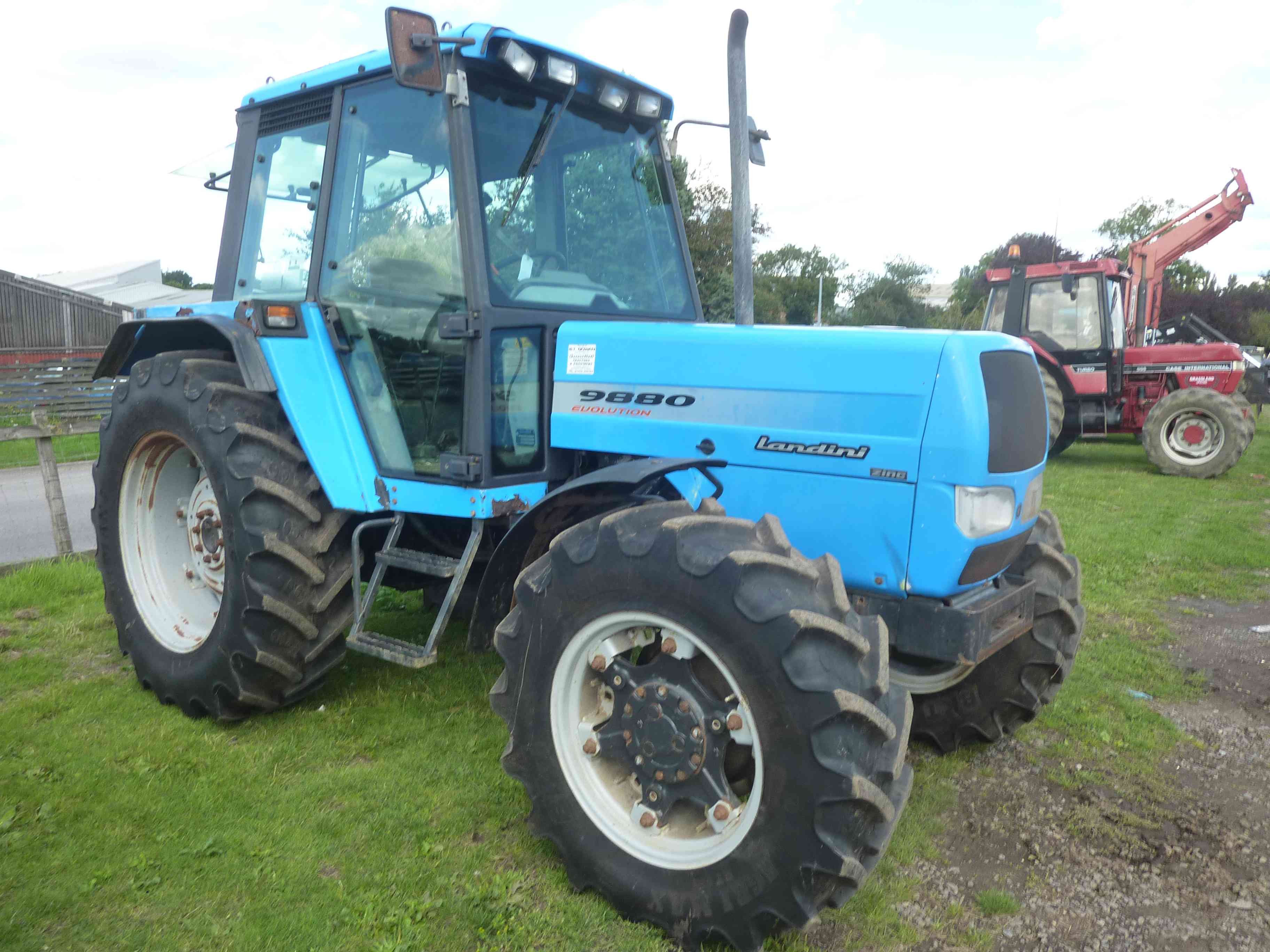

Landini 9880
Landini 9880 — 80 Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
8378 to 8818 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockhydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with available air-conditioning.Reference
Variants
9880utilityReference
9880HChigh-cropReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank152.2 LReference
Engine69.4 kWReference
Perkins AT4.236Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power69.4 kWReference
Air cleanerdryReference
Compression15.1:1Reference
Rated RPM2200Reference
Torque347.0 NmReference
Torque RPM1400Reference
Transmission
12-speed synchromeshReference
12-speed shuttleReference
24-speed synchromeshReference
24-speed creeperReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Four gears in three ranges.Reference
TypeshuttleReference
Gears12 forward and reverseReference
Four gears in three ranges with shuttle.Reference
Gears24 forward and 12 reverseReference
The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%.Reference
TypecreeperReference
PTO & Hydraulics
Total flow42.4 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift4350 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/750Reference
Engine RPM540@1944Reference
Engine RPM1000@1917Reference
Engine RPM750@1934Reference
Dimensions
2WD Wheelbase246 cmReference
4WD Wheelbase243 cmReference
Weight8378 to 8818 poundsReference
Front tire9.00-16Reference
Rear tire18.4R34Reference
Ag front9.00-16Reference
Ag rear18.4R34Reference
Ag front14.9R24Reference
Length387 cmReference
Width179 cmReference
Height (cab)264 cmReference
2WD Weight3800 kgReference
4WD Weight3999 kgReference
4WD Clearance (front axle)45 cmReference
Electrical
Charging systemalternatorReference
Speeds
With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward.Reference
With 16.9/14-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
