Tractor · 1987Unverified

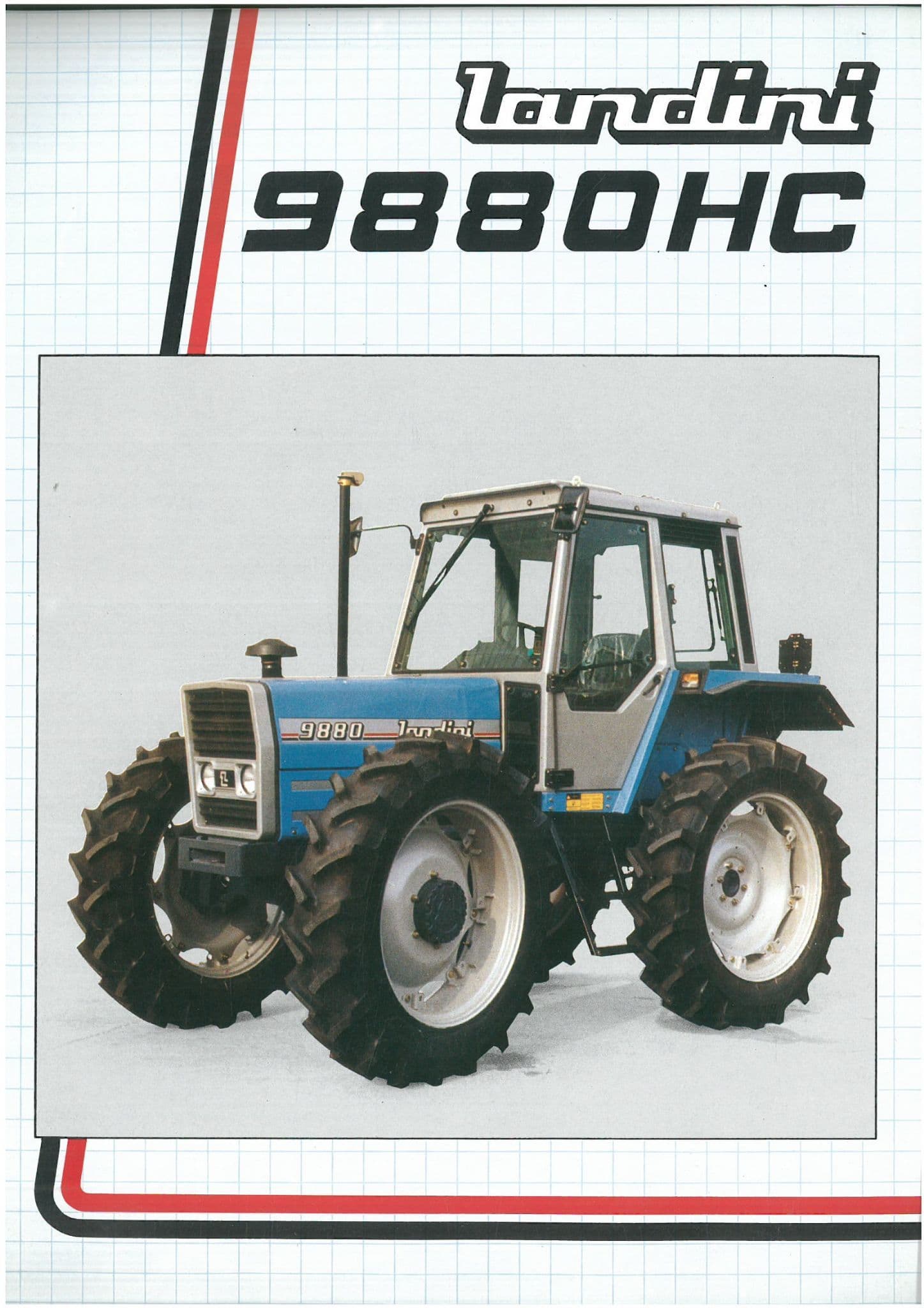

Landini 9880HC
Landini 9880HC — 80 Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
7926 to 8951 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
High-Clearance tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with available air-conditioning.Reference
Variants
9880utilityReference
9880HChigh-cropReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank152.2 LReference
Engine69.4 kWReference
Perkins AT.4-236Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power69.4 kWReference
Air cleanerdryReference
Compression15.1:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromesh shuttleReference
24-speed creeperReference
TransmissionPower FlowReference
Typesynchromesh shuttleReference
Gears12 forward and reverseReference
Clutch304.8mm dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
Pump flow44.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4350 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1967Reference
Engine RPM1000@1954Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase221 cmReference
Weight7926 to 8951 poundsReference
Front tire9.00-16Reference
2WD Rear tire13.6R38Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 13.6R38Reference
4WD Standard tires (ag)Front: 13.6R38. Rear: 13.8R38Reference
4WD Optional tires (ag)Front: 14.9R38. Rear: 14.9R38Reference
2WD Length388 cmReference
4WD Length405 cmReference
2WD Width196 cmReference
4WD Width201 cmReference
Height (cab)288 cmReference
2WD Weight3595 kgReference
4WD Weight4060 kgReference
Ground clearance45 cmReference
2WD Clearance (front axle)74 cmReference
4WD Clearance (front axle)62 cmReference
2WD Front tread161 to 205 cmReference
4WD Front tread166 to 216 cmReference
Rear tread150 to 226 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Speeds
With 13.6R38 rear tires. Reverse speeds are 1% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
