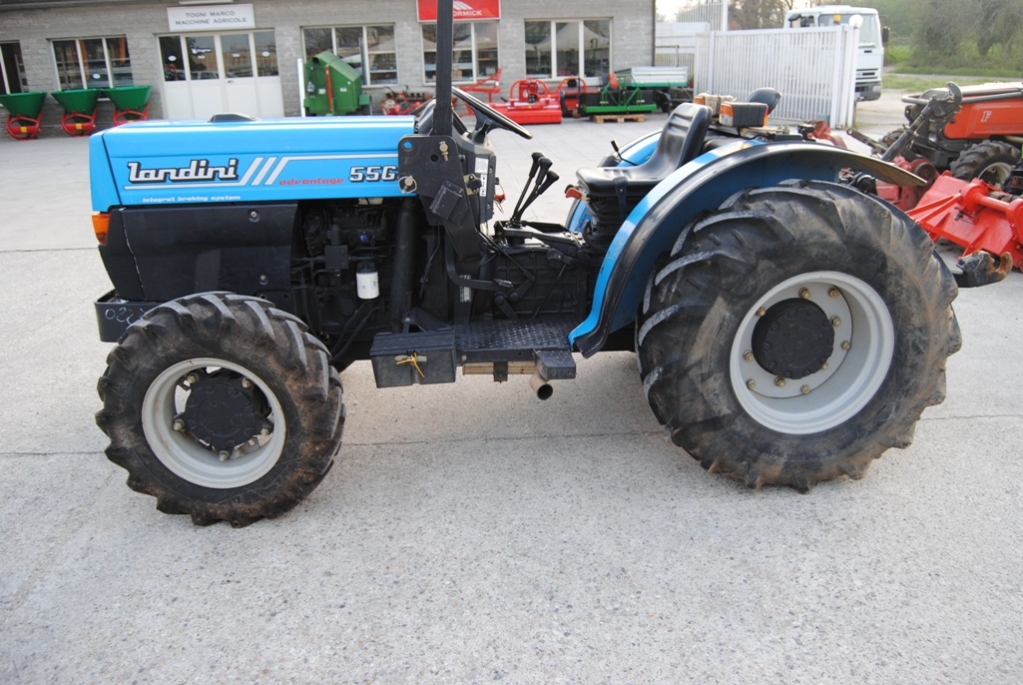

Landini Advantage 55F
Landini Advantage 55F — Advantage Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
4806 to 5137 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
55GElow-profileReference
55ForchardReference
55Lwide orchardReference
55VvineyardReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank53.0 LReference
Engine39.5 kWReference
Perkins 3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power39.5 kWReference
Air cleanerdryReference
Compression15.5:1Reference
Rated RPM2250Reference
Torque189.0 NmReference
Torque RPM1350Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch279.4mm mechanial dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow38.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM750@1934Reference
Dimensions
2WD Wheelbase196 cmReference
4WD Wheelbase189 cmReference
Weight4806 to 5137 poundsReference
Front tire7.50-15Reference
2WD Rear tire13.6-24Reference
2WD Standard tires (ag)Front: 7.50-15. Rear: 13.6-24Reference
4WD Standard tires (ag)Front: 8.25-16. Rear: 13.6-24Reference
2WD Optional tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
2WD Optional tires (ag)Front: 5.00-15. Rear: 12.4-24Reference
2WD Optional tires (ag)Front: 6.00-16. Rear: 11.2-24Reference
4WD Optional tires (ag)Front: 7.50-16. Rear: 12.4-24Reference
4WD Optional tires (ag)Front: 6.50-16. Rear: 11.2-24Reference
4WD Optional tires (ag)Front: 750-16. Rear: 360/70R24Reference
Length332 cmReference
Width133 cmReference
Height (steering wheel)143 cmReference
Height (cab)221 cmReference
2WD ROPS Weight2180 kgReference
4WD ROPS Weight2330 kgReference
Ground clearance36 cmReference
2WD Front tread108 to 148 cmReference
4WD Front tread108 to 138 cmReference
Rear tread98 to 152 cmReference
Electrical
GroundnegativeReference
Charging systemLucas A115Reference
Charging amps45Reference
Battery volts12Reference
Speeds
With 13.6-24 rear tires.Reference
