Tractor · 1995Unverified

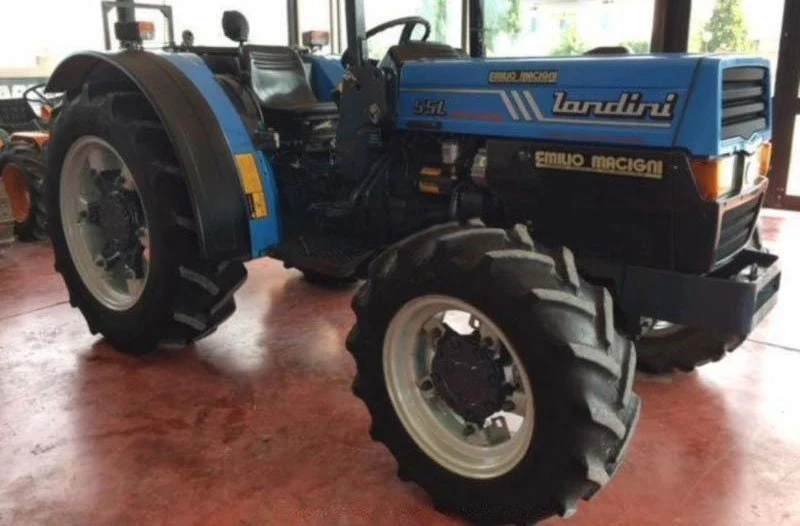

Landini Advantage 55L
Landini Advantage 55L — Advantage Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
2409 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
55GElow-profileReference
55ForchardReference
55Lwide orchardReference
55VvineyardReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine39.5 kWReference
Perkins 3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power39.5 kWReference
Air cleanerdryReference
Compression15.5:1Reference
Rated RPM2250Reference
Torque189.0 NmReference
Torque RPM1350Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch279.4mm mechanial dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow38.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM750@1934Reference
Dimensions
Wheelbase189 cmReference
Weight2409 kgReference
Front tire250/80-18Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 250/80-18. Rear: 13.6-28Reference
Optional tires (ag)Front: 250/80-18. Rear: 360/70R28Reference
Length332 cmReference
Width149 cmReference
Height (hood)127 cmReference
Clearance (front axle)32 cmReference
Clearance (drawbar)41 cmReference
Front tread124 to 154 cmReference
Rear tread114 to 168 cmReference
Electrical
GroundnegativeReference
Charging systemLucas A115Reference
Charging amps45Reference
Battery volts12Reference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
