Tractor · 1995Unverified

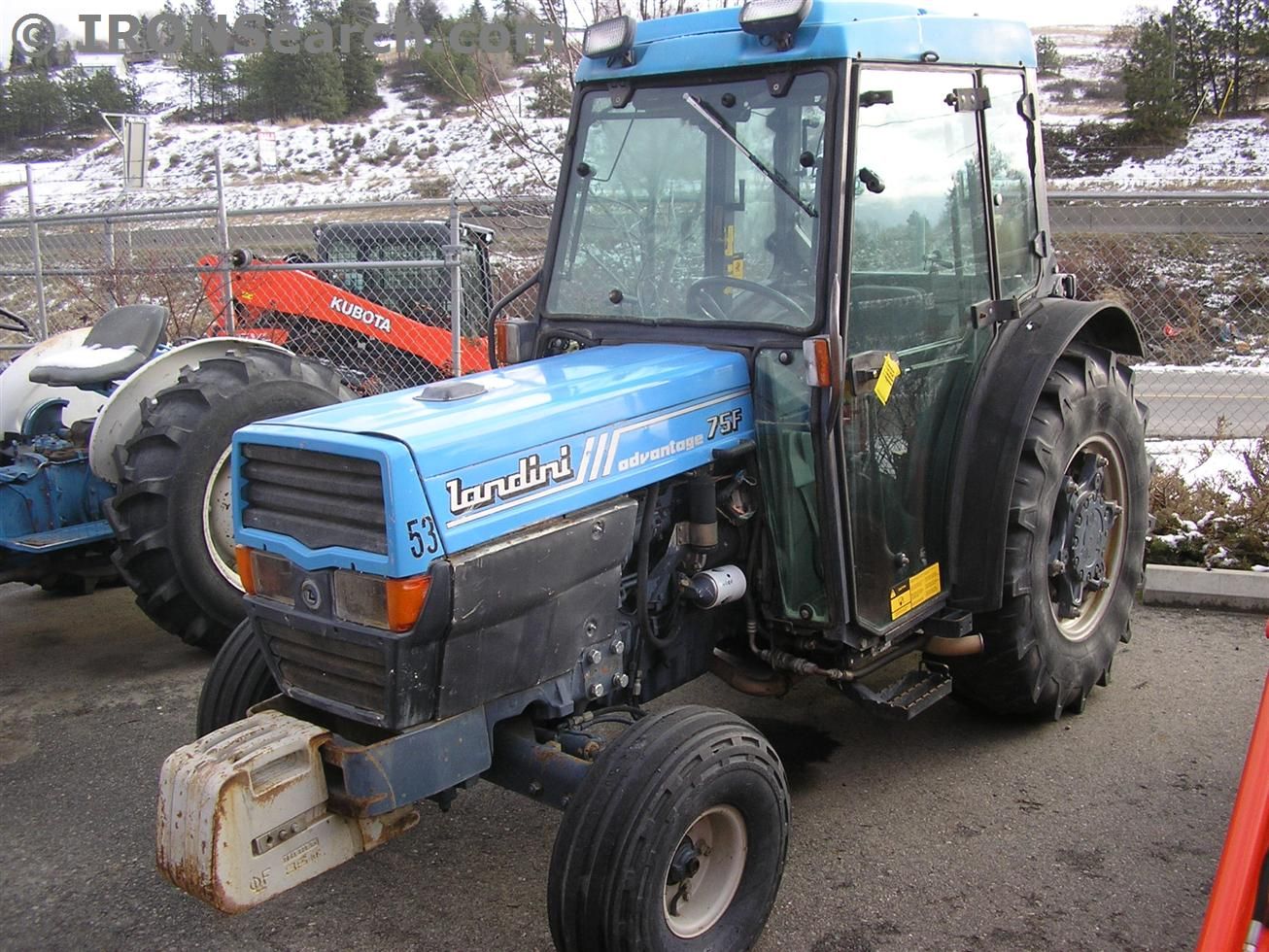

Landini Advantage 55V
Landini Advantage 55V — Advantage Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
5732 to 5842 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
55GElow-profileReference
55ForchardReference
55Lwide orchardReference
55VvineyardReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank54.1 LReference
Engine39.5 kWReference
Perkins 3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power39.5 kWReference
Air cleanerdryReference
Compression15.5:1Reference
Rated RPM2250Reference
Torque189.0 NmReference
Torque RPM1350Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch279.4mm mechanial dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase204 cmReference
4WD Wheelbase207 cmReference
Weight5732 to 5842 poundsReference
Front tire6.50-16Reference
2WD Rear tire13.6/12-24Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 13.6/12-24Reference
4WD Standard tires (ag)Front: 260/70R16. Rear: 13.6/24-24Reference
Length362 cmReference
Width122 cmReference
Height (steering wheel)130 cmReference
Height (cab)225 cmReference
2WD Weight2600 kgReference
4WD Weight2649 kgReference
Clearance (drawbar)39 cmReference
2WD Front tread100 to 138 cmReference
4WD Front tread115 to 142 cmReference
Rear tread122 to 131 cmReference
Electrical
GroundnegativeReference
Charging systemLucas A115Reference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
