Tractor · 1995Unverified

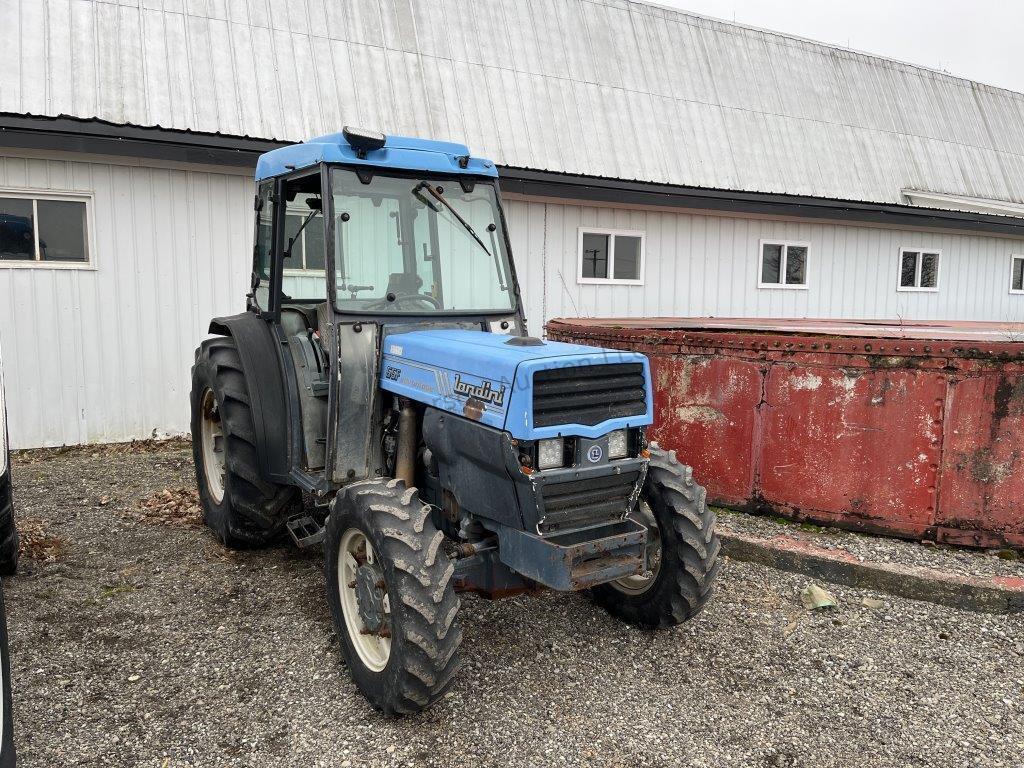

Landini Advantage 65F
Landini Advantage 65F — Advantage Series · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
5291 to 5512 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
65GElow-profileReference
65ForchardReference
65Lwide orchardReference
65VvineyardReference
65GTutilityReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine50.0 kWReference
Perkins 4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power50.0 kWReference
Air cleanerdryReference
Compression16:1Reference
Rated RPM2200Reference
Torque254.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed creeper with mechanical shuttleReference
12-speed mechanical shuttleReference
Typecreeper with mechanical shuttleReference
Gears24 forward and 12 reverseReference
Clutch279.4mm mechanial dry discReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow42.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM750@1934Reference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase201 cmReference
Weight5291 to 5512 poundsReference
Front tire250/80-18Reference
4WD Rear tire14.9-24Reference
4WD Standard tires (ag)Front: 250/80-18. Rear: 14.9-24Reference
2WD Optional tires (ag)Front: 6.00-16. Rear: 380/70R24Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-28Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 380/70-24Reference
4WD Optional tires (ag)Front: 8.25-16. Rear: 13.6-24Reference
4WD Optional tires (ag)Front: 360/70-16. Rear: 380/70R24Reference
4WD Optional tires (ag)Front: 250/80-18. Rear: 360/70-28Reference
Length344 cmReference
Width133 cmReference
Height (steering wheel)145 cmReference
Height (cab)225 cmReference
Ground clearance38 cmReference
2WD Front tread108 to 148 cmReference
4WD Front tread108 to 138 cmReference
Rear tread98 to 152 cmReference
2WD ROPS2399 kgReference
4WD ROPS2500 kgReference
Electrical
GroundnegativeReference
Charging systemLucas A115Reference
Charging amps45Reference
Battery volts12Reference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
