Tractor · 1995Unverified

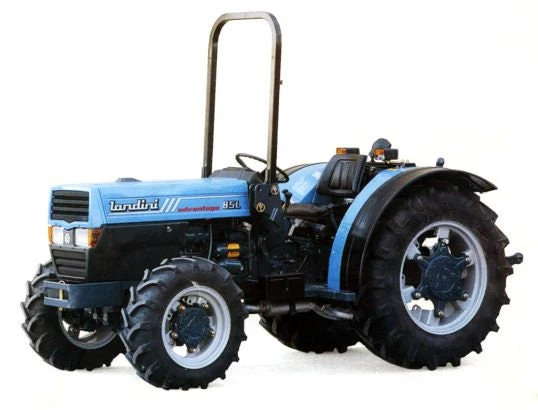

Landini Advantage 85L
Landini Advantage 85L — Advantage Series · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
2550 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
85GElow-profileReference
85ForchardReference
85Lwide orchardReference
85GTutilityReference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank62.1 LReference
Engine61.9 kWReference
Perkins 4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power61.9 kWReference
Air cleanerdryReference
Compression16:1Reference
Rated RPM2200Reference
Torque309.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed creeper with mechanical shuttleReference
12-speed mechanical shuttleReference
Typecreeper with mechanical shuttleReference
Gears24 forward and 12 reverseReference
Clutch279.4mm mechanial dry discReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow42.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM750@1934Reference
Dimensions
Wheelbase201 cmReference
Weight2550 kgReference
Front tire260/80-20Reference
Rear tire14.9-28Reference
Standard tires (ag)Front: 260/80-20. Rear: 14.9-28Reference
Optional tires (ag)Front: 260/70-18. Rear: 420/70-24Reference
Optional tires (ag)Front: 10.5-18. Rear: 16.9-24Reference
Optional tires (ag)Front: 300/70-20. Rear: 420/70-28Reference
Length344 cmReference
Width156 cmReference
Height (hood)127 cmReference
Clearance (front axle)39 cmReference
Clearance (drawbar)41 cmReference
Front tread124 to 154 cmReference
Rear tread114 to 168 cmReference
Electrical
GroundnegativeReference
Charging systemLucas A115Reference
Charging amps45Reference
Battery volts12Reference
Speeds
With 14.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
