Tractor · 2001Unverified

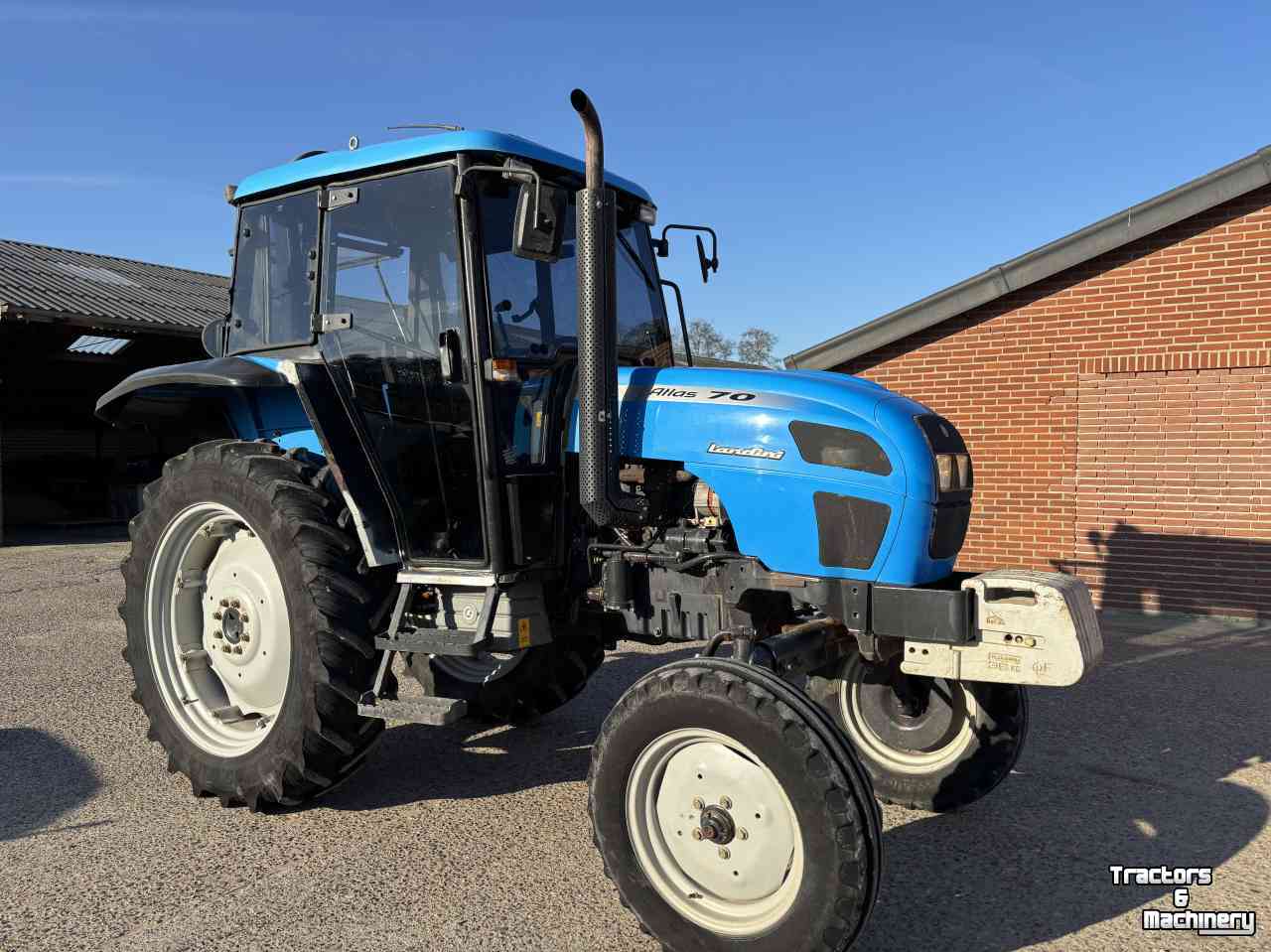

Landini Atlantis 70
Landini Atlantis 70 — Atlantis Series · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Weight
3200 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank95.0 LReference
Engine50.0 kWReference
Perkins 1004-40Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage IReference
Power50.0 kWReference
Rated RPM2200Reference
Torque263.1 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
24-speed shuttle with creeperReference
24-speed shuttle with overdriveReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch279.4mm dry discReference
Typeshuttle with creeperReference
Gears24 forward and 12 reverseReference
Typeshuttle with overdriveReference
PTO & Hydraulics
PTO (claimed)45.5 kWReference
Pressure180.0 barReference
Valves2Reference
Pump flow53.7 lpmReference
Total flow78.0 lpmReference
Steering flow23.8 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear lift3700 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase237 cmReference
Weight3200 kgReference
Front tire9.00-16Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 12.4R24. Rear: 16.9R30Reference
Length417 cmReference
Width182 cmReference
Height (steering wheel)167 cmReference
Height (ROPS)255 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
