Tractor · 1999Unverified

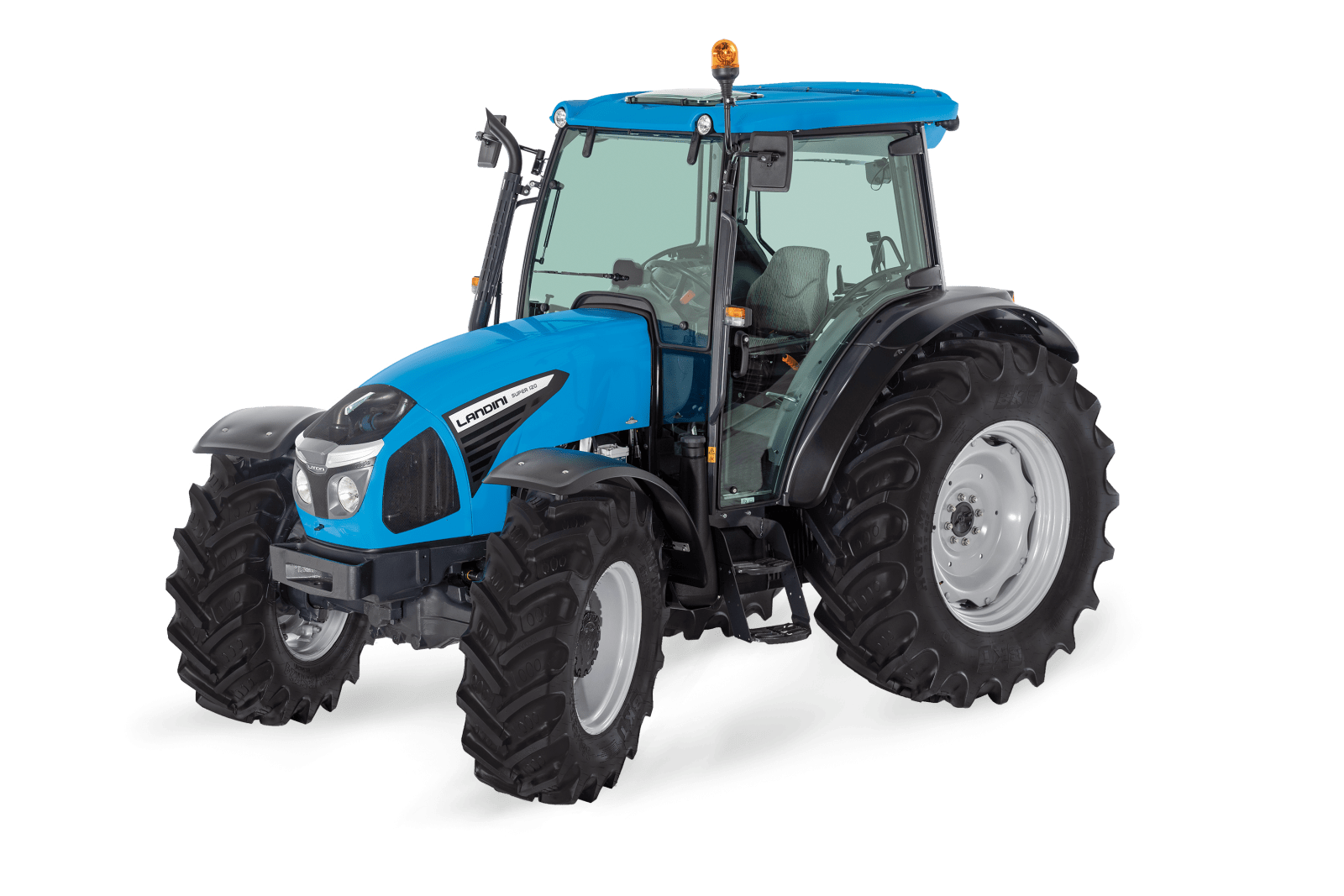

Landini Atlas 100

Name: Landini Atlas 100
Brand: Landini

Landini Atlas 100 — Atlas Series · 86 hp. Reference specifications; pending source verification.

The Landini Atlas 100 is a tractor with a rated power of 86 hp, a mid-range figure for its class. It was produced from 1999 to 2001 and features a 4-cylinder turbocharged diesel liquid-cooled engine. The Atlas 100 is equipped with four-wheel drive and a 12-speed gearbox, and has a listed operating weight of 3349 kg. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Weight

3349 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

86 hp

Recorded weight

3349 kg

Transmissions

12-speed shuttle

Production years

1999-2001

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Perkins 4.0L 4-cyl dieselReference

Fuel tank95.0 LReference

Engine69.4 kWReference

Perkins 1004-40TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

EmissionsStage IReference

Power69.4 kWReference

Rated RPM2200Reference

Torque387.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed shuttleReference

24-speed shuttle with creeperReference

24-speed shuttle with overdriveReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch304.8mm dry discReference

Typeshuttle with creeperReference

Gears24 forward and 12 reverseReference

Typeshuttle with overdriveReference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

Pressure180.0 barReference

Valves2Reference

Pump flow53.7 lpmReference

Total flow78.0 lpmReference

Steering flow23.8 lpmReference

Rear TypeIIReference

Rear lift2600 kgReference

Rear lift4350 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540/750 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase241 cmReference

Weight3349 kgReference

Front tire9.00-16Reference

2WD Rear tire480/70R34Reference

2WD Standard tires (ag)Front: 9.00-16. Rear: 480/70R34Reference

4WD Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference

Length418 cmReference

Width192 cmReference

Height (steering wheel)171 cmReference

Height (ROPS)260 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
