Tractor · 1999Unverified

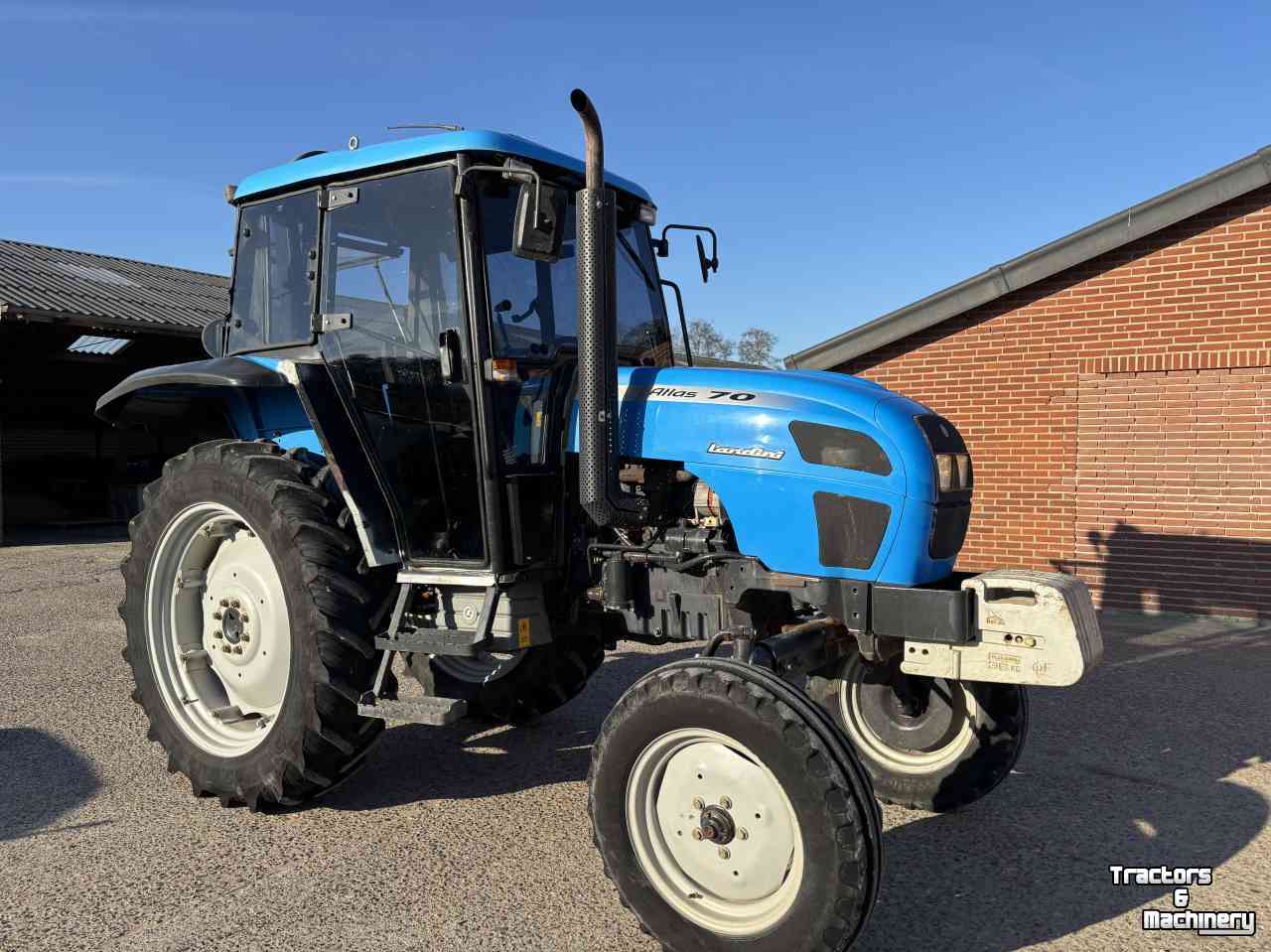

Landini Atlas 70

Name: Landini Atlas 70
Brand: Landini

Landini Atlas 70 — Atlas Series · 61 hp. Reference specifications; pending source verification.

The Landini Atlas 70 is a tractor model with a rated power output of 61 horsepower, positioning it within the lighter segment of its class. It was manufactured from 1999 to 2001 and features a 4-cylinder diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a 12-speed gearbox, with an operating weight of approximately 3200 kilograms. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

61 hp

Weight

3200 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

61 hp

Recorded weight

3200 kg

Transmissions

12-speed shuttle

Production years

1999-2001

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Perkins 4.0L 4-cyl dieselReference

Fuel tank95.0 LReference

Engine50.0 kWReference

Perkins 1004-40Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

EmissionsStage IReference

Power50.0 kWReference

Rated RPM2200Reference

Torque263.1 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed shuttleReference

24-speed shuttle with creeperReference

24-speed shuttle with overdriveReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch279.4mm dry discReference

Typeshuttle with creeperReference

Gears24 forward and 12 reverseReference

Typeshuttle with overdriveReference

PTO & Hydraulics

PTO (claimed)45.5 kWReference

Pressure180.0 barReference

Valves2Reference

Pump flow53.7 lpmReference

Total flow78.0 lpmReference

Steering flow23.8 lpmReference

Rear TypeIIReference

Rear lift2600 kgReference

Rear lift3700 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540/750 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase237 cmReference

Weight3200 kgReference

Front tire9.00-16Reference

2WD Rear tire16.9R30Reference

2WD Standard tires (ag)Front: 9.00-16. Rear: 16.9R30Reference

4WD Standard tires (ag)Front: 12.4R24. Rear: 16.9R30Reference

Length417 cmReference

Width182 cmReference

Height (steering wheel)167 cmReference

Height (ROPS)255 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
