Tractor · 1999Unverified

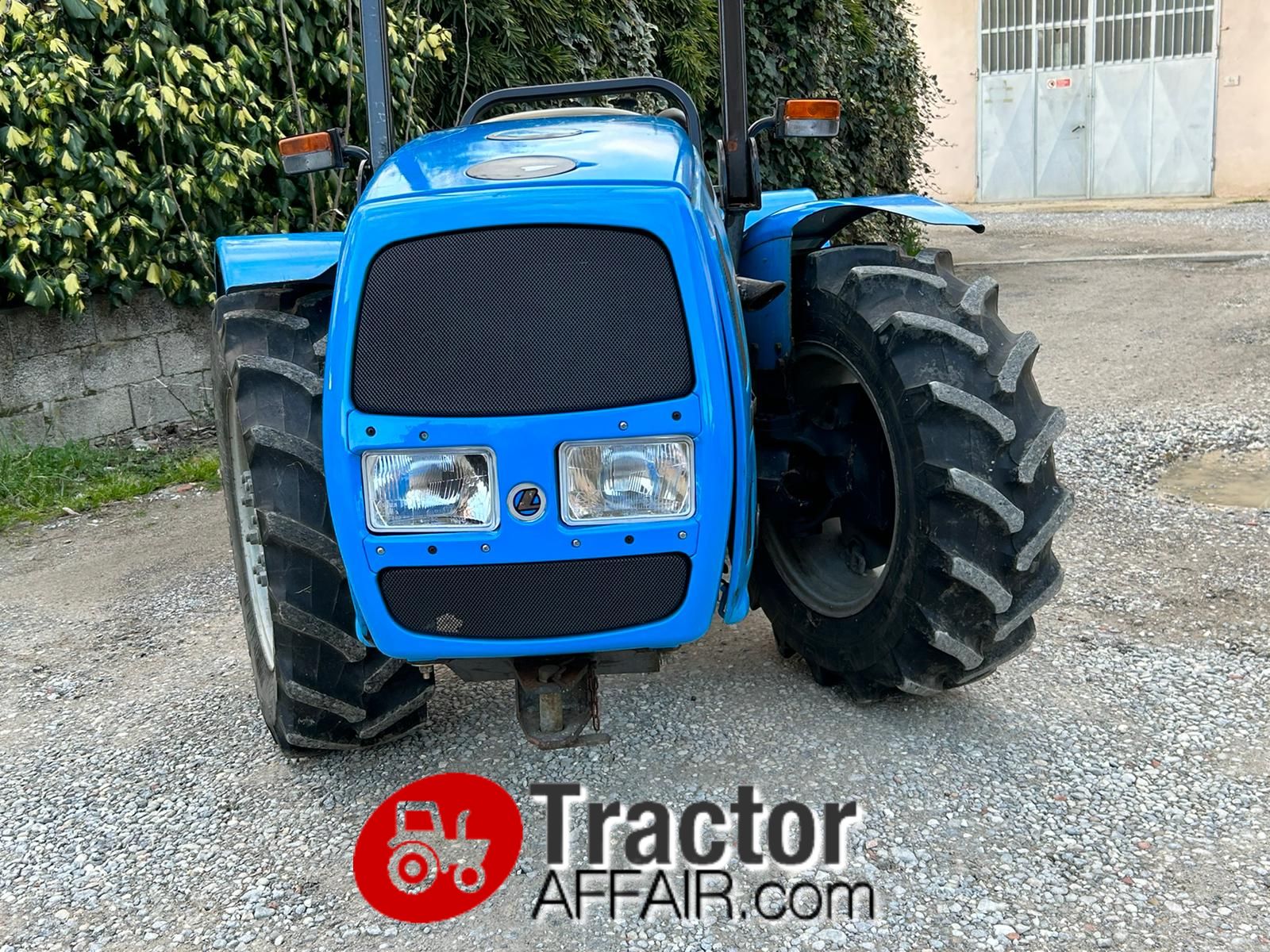

Landini Discovery 85
Landini Discovery 85 — Discovery Series · 79 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
79 hp
Weight
4431 to 4652 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Drive4x4 4WDReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount folding ROPS or four-post ROPS. Reversible operator station.Reference
Engine
Deutz 2.7L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine59.0 kWReference
DeutzReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement2.7 LReference
Bore/Stroke91 x 105 mmReference
Power59.0 kWReference
Compression17:1Reference
Rated RPM2650Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears36 forward and reverseReference
Clutch250mm dry discReference
PTO & Hydraulics
Valves3Reference
Total flow50.0 lpmReference
Rear TypeIIReference
Controlposition controlReference
Rear lift1500 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Multitrac Wheelbase152 cmReference
Climber Wheelbase157 cmReference
Weight4431 to 4652 poundsReference
Front tire360/70-20Reference
Multitrac Rear tire360/70-20Reference
Multitrac Standard tires (ag)Front: 360/70-20. Rear: 360/70-20Reference
Climber Standard tires (ag)Front: 400/55-17.5T414. Rear: 400/55-17.5T414Reference
Optional tires (ag)Front: 300/70-20. Rear: 300/70-20Reference
Optional tires (ag)Front: 320/70-20. Rear: 300/70-20Reference
Optional tires (ag)Front: 400/55-17.5T404. Rear: 400/55-17.5T404Reference
Optional tires (ag)Front: 400/55-22.5T404. Rear:Reference
Optional tires (ag)Front: 31x15.50-15STG1. Rear: 31x15.50-15STG1Reference
Optional tires (ag)Front: 31x15.50-15T412. Rear:Reference
Optional tires (ag)Front: 33x15.50-15T412. Rear:Reference
Length350 cmReference
Multitrac Width168 cmReference
Climber Width182 cmReference
Height (ROPS)214 cmReference
Multitrac Weight2110 kgReference
Climber Weight2009 kgReference
Multitrac Front tread133 to 145 cmReference
Climber Front tread141 cmReference
Multitrac Rear tread133 to 145 cmReference
Climber Rear tread141 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
