Tractor · 2000Unverified

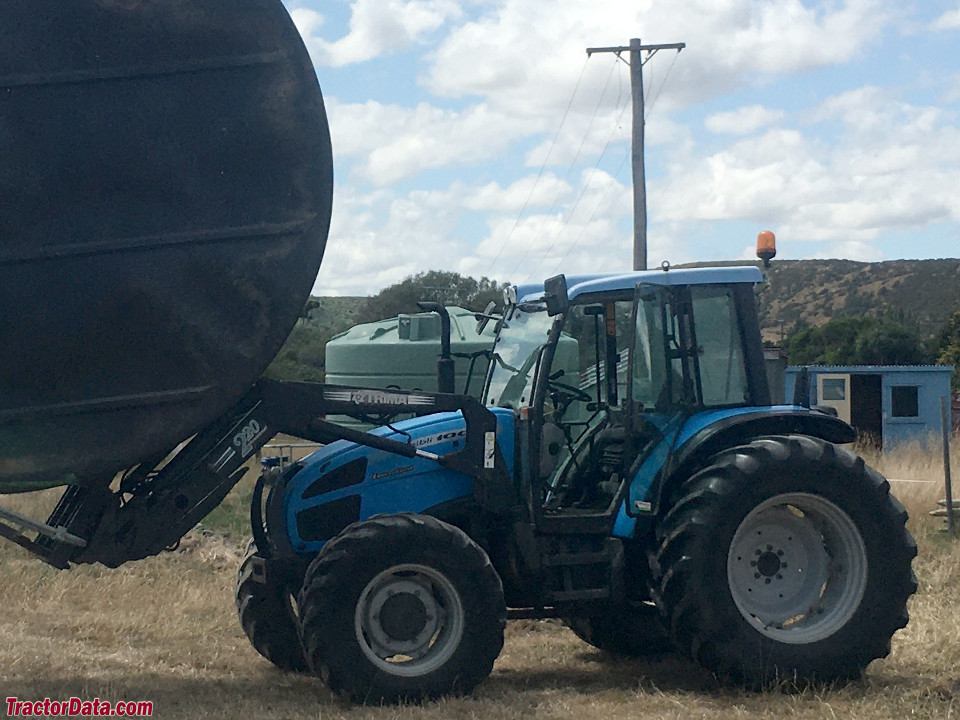

Landini Ghibli 100
Landini Ghibli 100 — Ghibli Series · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
3999 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
Atlantis 100economyReference
Ghibli 100deluxeReference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine69.4 kWReference
Perkins 1004-40TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage IReference
Power69.4 kWReference
Rated RPM2200Reference
Torque387.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
24-speed shuttle with creeperReference
24-speed shuttle with overdriveReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch304.8mm dry discReference
Typeshuttle with creeperReference
Gears24 forward and 12 reverseReference
Typeshuttle with overdriveReference
PTO & Hydraulics
PTO (claimed)64.9 kWReference
Pressure180.0 barReference
Valves2Reference
Pump flow53.7 lpmReference
Total flow78.0 lpmReference
Steering flow23.8 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear lift4350 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase240 cmReference
Weight3999 kgReference
Front tire420/70R24Reference
Rear tire520/70R34Reference
Standard tires (ag)Front: 420/70R24. Rear: 520/70R34Reference
Length184 cmReference
Height (cab)262 cmReference
Ground clearance46 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
