Tractor · 1999Unverified

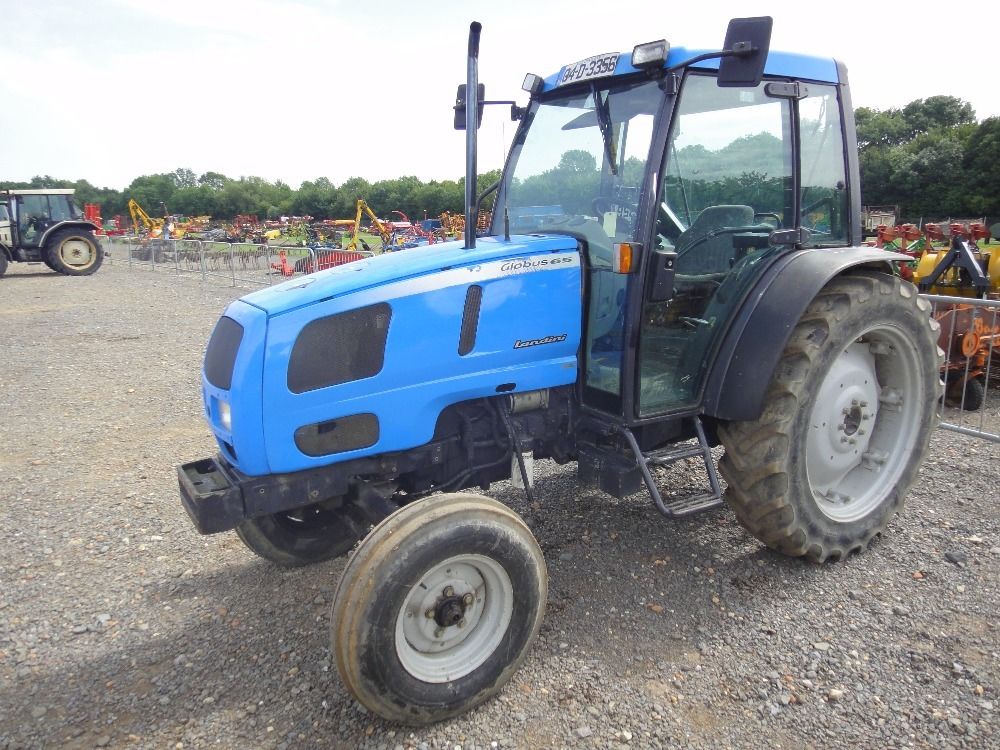

Landini Globus 65
Landini Globus 65 — Globus Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
6160 to 6710 pounds
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
Cab with heater standard. Optional air-conditioning and digital dashboard. Optional ROPS canopy.Reference
Variants
Globus 65 GTlow-profileReference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank67.0 LReference
Fuel tank34.1 LReference
Engine50.7 kWReference
Perkins 1004-40Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power50.7 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
15-speed synchronized shuttleReference
30-speed synchronized shuttleReference
30-speed partial power shiftReference
60-speed partial power shiftReference
Typesynchronized shuttleReference
Gears15 forward and reverseReference
Clutch305mm cerametallic mechanical dry discReference
Base transmission. Synchronized with synchronized shuttle reverser. On 2WD tractors the transmission has 12/12 gears.Reference
Gears30 forward and reverseReference
Synchronized shuttle with synchronized reverser and creeper range. On 2WD tractors the transmission has 24/24 gears.Reference
Typepartial power shiftReference
Synchronized shuttle with electro-hydraulic two-speed power shift. On 2WD tractors the transmission has 24/24 gears.Reference
Gears60 forward and reverseReference
Synchronized shuttles with electro-hydraulic two-speed power shift and creeper range. On 2WD tractors the transmission has 48/48 gears.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
Pressure179.3 barReference
Valves2 or 3Reference
SCV flow53.7 lpmReference
Total flow84.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2086 kgReference
Rear lift3402 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000/groundReference
Rear PTO Type540/750/groundReference
Dimensions
4WD Wheelbase215 cmReference
GT Wheelbase216 cmReference
Weight6160 to 6710 poundsReference
Front tire7.50-16Reference
Rear tire16.9R30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9R30 (2WD)Reference
Standard tires (ag)Front: 320/70R20. Rear: 420/70R30 (4WD)Reference
Standard tires (ag)Front: 300/70R20. Rear: 480/70R24 (GT)Reference
Optional tires (ag)Front: 7.50-16. Rear: 420/70R28 (2WD)Reference
Optional tires (ag)Front: 11.2R24. Rear: 16.9R30 (4WD)Reference
Optional tires (ag)Front: 11.2R24. Rear: 12.4R36 (4WD)Reference
Optional tires (ag)Front: 340/75R20. Rear: 420/70R28 (4WD)Reference
Optional tires (ag)Front: 320/70R24. Rear: 480/70R30 (4WD)Reference
Optional tires (ag)Front: 320/70R20. Rear: 14.9R28 (GT)Reference
Optional tires (ag)Front: 275/80R20. Rear: 380/70R28 (GT)Reference
Lawn/turf front29x12.5-15 (GT)Reference
Lawn/turf rear21.5L-16.1 (GT)Reference
Industrial front10.5-18 (4WD)Reference
Industrial rear17.5L-24 (4WD)Reference
4WD Length401 cmReference
GT Length398 cmReference
4WD Width198 cmReference
GT Width182 cmReference
4WD Height (cab)242 cmReference
GT Height (cab)231 cmReference
4WD Ground clearance39 cmReference
GT Ground clearance38 cmReference
4WD Front tread158 to 185 cmReference
GT Front tread138 to 163 cmReference
4WD Rear tread154 to 195 cmReference
GT Rear tread135 to 185 cmReference
2WD2943 kgReference
4WD3043 kgReference
4WD2794 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
