Tractor · 1999Unverified

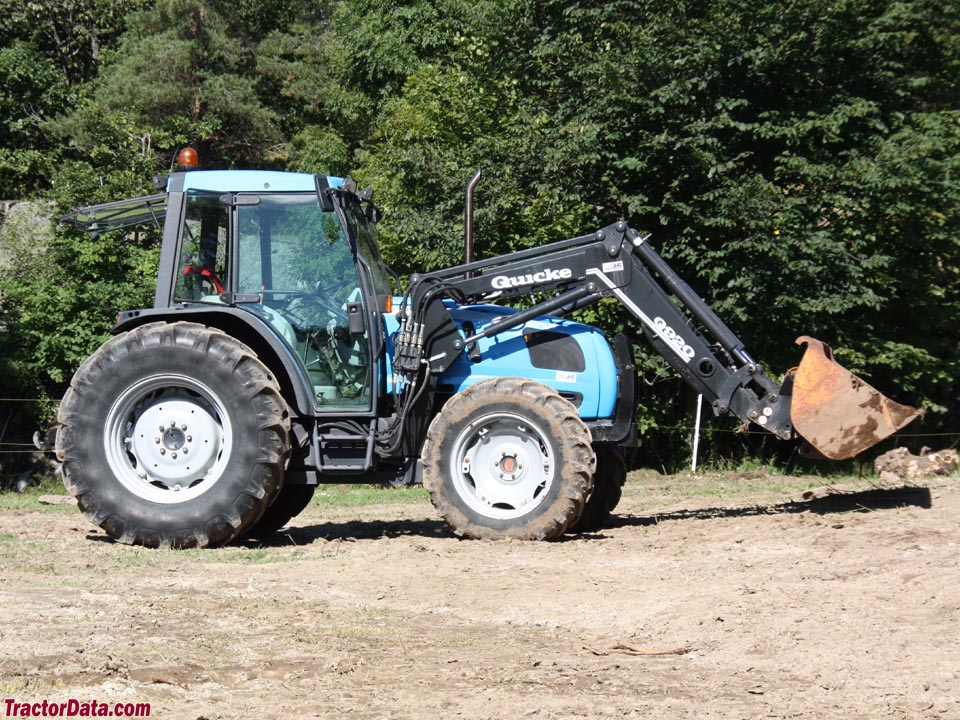

Landini Globus 75
Landini Globus 75 — Globus Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
3050 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockmechanicalReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
Variants
Globus 75 GTlow-profileReference
Engine
Perkins 4.2L 4-cyl dieselReference
Fuel tank67.0 LReference
Fuel tank34.1 LReference
Engine55.2 kWReference
Perkins 1004-42Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Power55.2 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
25-speedReference
50-speedReference
Gears25 forward and reverseReference
Gears50 forward and reverseReference
PTO & Hydraulics
Pressure179.3 barReference
Valves2 or 3Reference
SCV flow53.7 lpmReference
Total flow84.0 lpmReference
Rear Type2Reference
Controlposition and draft controlReference
Rear lift2086 kgReference
Rear lift3402 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000/groundReference
Rear PTO Type540/750/groundReference
Dimensions
4WD Wheelbase215 cmReference
GT Wheelbase216 cmReference
Weight3050 kgReference
Front tire7.50-16Reference
Rear tire14.9R30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 14.9R30 (2WD)Reference
Standard tires (ag)Front: 320/70R24. Rear: 480/70R30 (4WD)Reference
4WD Length401 cmReference
GT Length398 cmReference
4WD Width198 cmReference
GT Width182 cmReference
4WD Height (cab)242 cmReference
GT Height (cab)231 cmReference
4WD Ground clearance39 cmReference
GT Ground clearance38 cmReference
4WD Front tread158 to 185 cmReference
GT Front tread138 to 163 cmReference
4WD Rear tread154 to 195 cmReference
GT Rear tread135 to 185 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
