Tractor · 2001Unverified

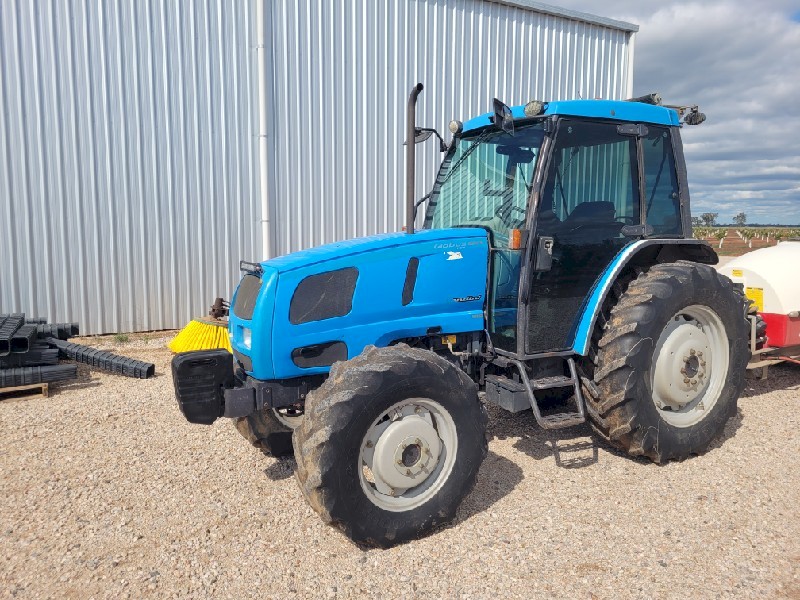

Landini Globus 80

Name: Landini Globus 80
Brand: Landini

Landini Globus 80 — Globus Series · 66 hp. Reference specifications; pending source verification.

The Landini Globus 80 is a tractor model with an engine rating of 66 horsepower, positioning it in the middle of its class in terms of power output. The Globus 80 was manufactured between 2001 and 2004. It features a 4-cylinder diesel liquid-cooled engine, driving the front wheels through a mechanical front-wheel drive system with a hydrostatic transmission. The listed weight of the tractor ranges from 6270 to 6820 pounds, and it is designed for use in areas of approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Weight

6270 to 6820 pounds

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

66 hp

Transmissions

15-speed synchronized shuttle

Production years

2001-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandiniReference

Utility tractorReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockmechanicalReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Cab with heater standard. Optional air-conditioning and digital dashboard. Optional ROPS canopy.Reference

Variants

Globus 80 GTlow-profileReference

Engine

Perkins 4.2L 4-cyl dieselReference

Fuel tank67.0 LReference

Fuel tank34.1 LReference

Engine59.7 kWReference

Perkins 1004-42Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke103 x 127 mmReference

Power59.7 kWReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

15-speed synchronized shuttleReference

30-speed synchronized shuttleReference

30-speed partial power shiftReference

60-speed partial power shiftReference

Typesynchronized shuttleReference

Gears15 forward and reverseReference

Clutch305mm cerametallic mechanical dry discReference

Base transmission. Synchronized with synchronized shuttle reverser. On 2WD tractors the transmission has 12/12 gears.Reference

Gears30 forward and reverseReference

Synchronized shuttle with synchronized reverser and creeper range. On 2WD tractors the transmission has 24/24 gears.Reference

Typepartial power shiftReference

Synchronized shuttle with electro-hydraulic two-speed power shift. On 2WD tractors the transmission has 24/24 gears.Reference

Gears60 forward and reverseReference

Synchronized shuttles with electro-hydraulic two-speed power shift and creeper range. On 2WD tractors the transmission has 48/48 gears.Reference

PTO & Hydraulics

PTO (claimed)49.2 kWReference

Pressure179.3 barReference

Valves2 or 3Reference

SCV flow53.7 lpmReference

Total flow84.0 lpmReference

Rear Type2Reference

Controlposition and draft controlReference

Rear lift2086 kgReference

Rear lift3402 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000/groundReference

Rear PTO Type540/750/groundReference

Dimensions

4WD Wheelbase215 cmReference

GT Wheelbase216 cmReference

Weight6270 to 6820 poundsReference

Front tire7.50-16Reference

Rear tire14.9R30 (2WD)Reference

Standard tires (ag)Front: 7.50-16. Rear: 14.9R30 (2WD)Reference

Standard tires (ag)Front: 300/70R20. Rear: 480/70R24 (4WD)Reference

Standard tires (ag)Front: 320/70R20. Rear: 420/70R28 (GT)Reference

Optional tires (ag)Front: 7.50-16. Rear: 420/70R28 (2WD)Reference

Optional tires (ag)Front: 320/70R24. Rear: 420/70R30 (4WD)Reference

Optional tires (ag)Front: 11.2R24. Rear: 12.4R36 (4WD)Reference

Optional tires (ag)Front: 340/75R20. Rear: 420/70R28 (4WD)Reference

Optional tires (ag)Front: 11.2R24. Rear: 16.9R30 (4WD)Reference

Optional tires (ag)Front: 360/70R20. Rear: 420/70R30 (4WD)Reference

Optional tires (ag)Front: 320/70R20. Rear: 480/65R28 (GT)Reference

Optional tires (ag)Front: 320/70R20. Rear: 14.9R28 (GT)Reference

Optional tires (ag)Front: 300/70R20. Rear: 480/70R24 (GT)Reference

Optional tires (ag)Front: 260/80R20. Rear: 380/70R28 (GT)Reference

Lawn/turf front29x12.5-15 (GT)Reference

Lawn/turf rear21.5L-16.1 (GT)Reference

Industrial front10.5-18 (4WD)Reference

Industrial rear17.5L-24 (4WD)Reference

4WD Length401 cmReference

GT Length398 cmReference

4WD Width198 cmReference

GT Width182 cmReference

4WD Height (cab)242 cmReference

GT Height (cab)231 cmReference

4WD Ground clearance39 cmReference

GT Ground clearance38 cmReference

4WD Front tread158 to 185 cmReference

GT Front tread138 to 163 cmReference

4WD Rear tread154 to 195 cmReference

GT Rear tread135 to 185 cmReference

2WD2993 kgReference

4WD3093 kgReference

GT2844 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
