Tractor · 2016Unverified

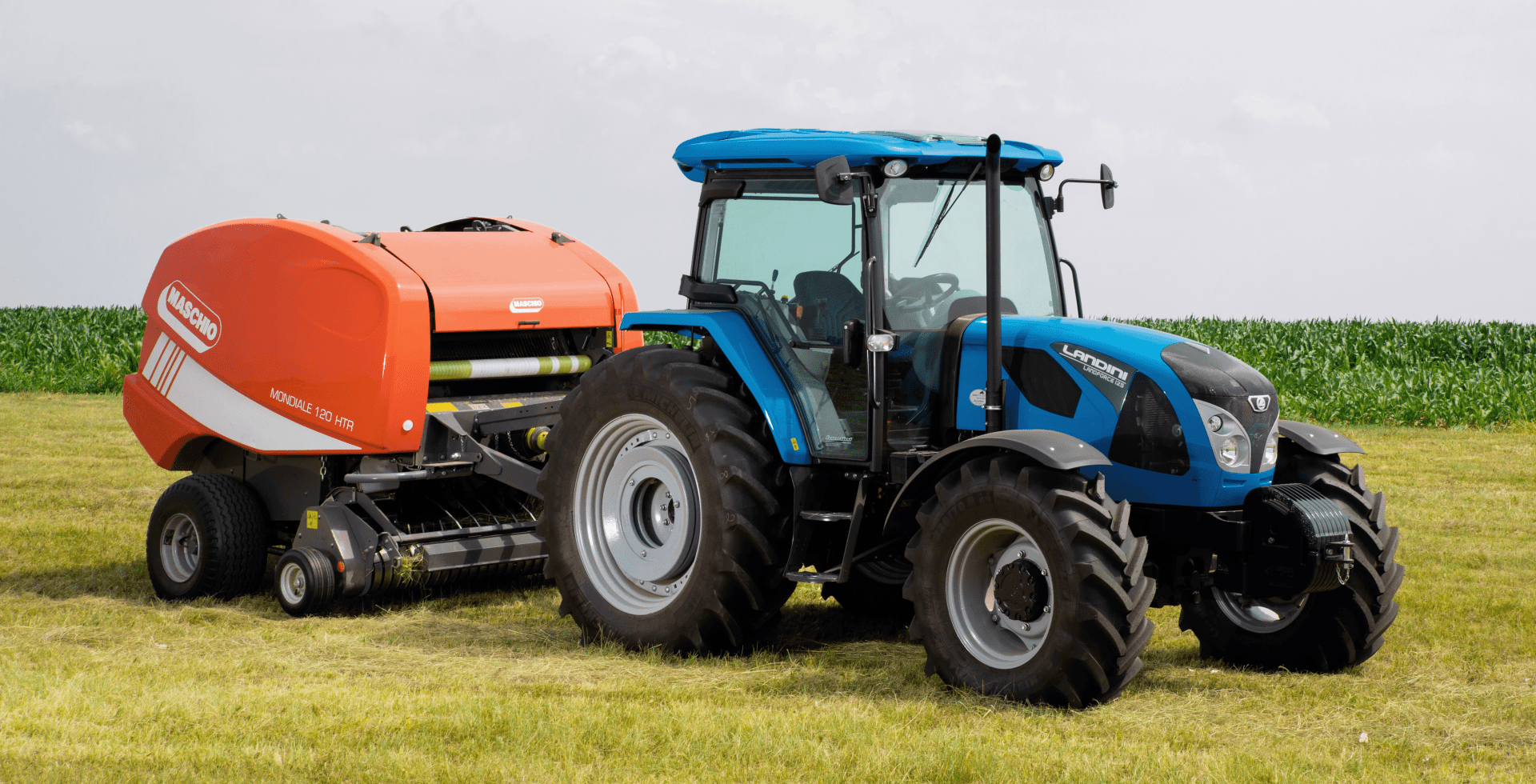

Landini Landforce 125
Landini Landforce 125 — Landforce Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
4191 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Two-post folding ROPS. Cab optional with available air-conditioning.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine89.5 kWReference
FPT NEF4-2VReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power89.5 kWReference
Rated RPM2200Reference
Torque512.6 NmReference
Torque RPM1250Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
36-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch330mm mechanical dry discReference
Four synchronized gears in three ranges with mechanical shuttle.Reference
TransmissionT-TronicReference
Typepower shuttleReference
Gears36 forward and 12 reverseReference
Clutchwet discReference
The T-Tronic transmission offers a three-range power shift and push-button declutch.Reference
PTO & Hydraulics
Typeopen centerReference
Typeclosed centerReference
Pressure180.0 barReference
Valves2 or 3Reference
Pump flow65.9 lpmReference
Pump flow110.1 lpmReference
Total flow95.0 lpmReference
Total flow148.0 lpmReference
Steering flow29.1 lpmReference
Steering flow37.9 lpmReference
Rear TypeIIReference
Controlposition and draft control. Landtronic electric draft control optional.Reference
Rear lift4490 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/750 (1.375)Reference
Dimensions
Wheelbase254 cmReference
Weight4191 kgReference
Front tire14.9R24Reference
Rear tire16.9R38Reference
Standard tires (ag)Front: 14.9R24. Rear: 16.9R38Reference
Length474 cmReference
Width208 cmReference
Height (ROPS)278 cmReference
Height (cab)276 cmReference
ROPS Weight4191 kgReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
