Tractor · 2018Unverified

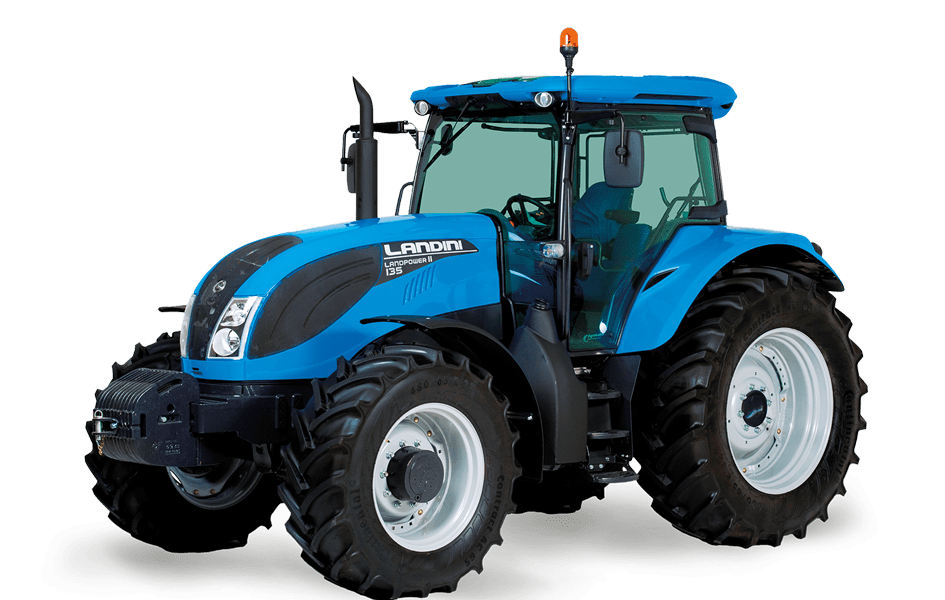

Landini Landpower II 135
Landini Landpower II 135 — Landpower II Series · 131 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
131 hp
Weight
5987 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine (gross)98.0 kWReference
Standard tires (ag)Front: 420/70R28. Rear: 520/70R38Reference
FPTReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsStage IIIReference
Power (gross)98.0 kWReference
Rated RPM2200Reference
Torque589.9 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed mechanical shuttleReference
54-speed three-speed power shiftReference
TransmissionSpeed-SixReference
Typemechanical shuttleReference
Gears18 forward and reverseReference
Clutchmechanical dry discReference
Six speeds in three ranges with manual shuttle shift. Also available with creeper range that doubles speeds to 36/36.Reference
TransmissionTop-TronicReference
Typethree-speed power shiftReference
Gears54 forward and 18 reverseReference
Clutchelectro-hydraulic wet discReference
Six speeds in three ranges with three-speed power shift and power shuttle. Also available with creeper range that doubles speeds to 108/36.Reference
PTO & Hydraulics
Typeopen centerReference
Typeclosed-center load sensingReference
Pump flow104.8 lpmReference
Pump flow148.0 lpmReference
Rear TypeIIReference
Front HitchIIReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase279 cmReference
Weight5987 kgReference
Front tire420/70R28Reference
Rear tire520/70R38Reference
Length534 cmReference
Width143 cmReference
Height (cab)298 cmReference
Ground clearance49 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
