Tractor · 1997Unverified

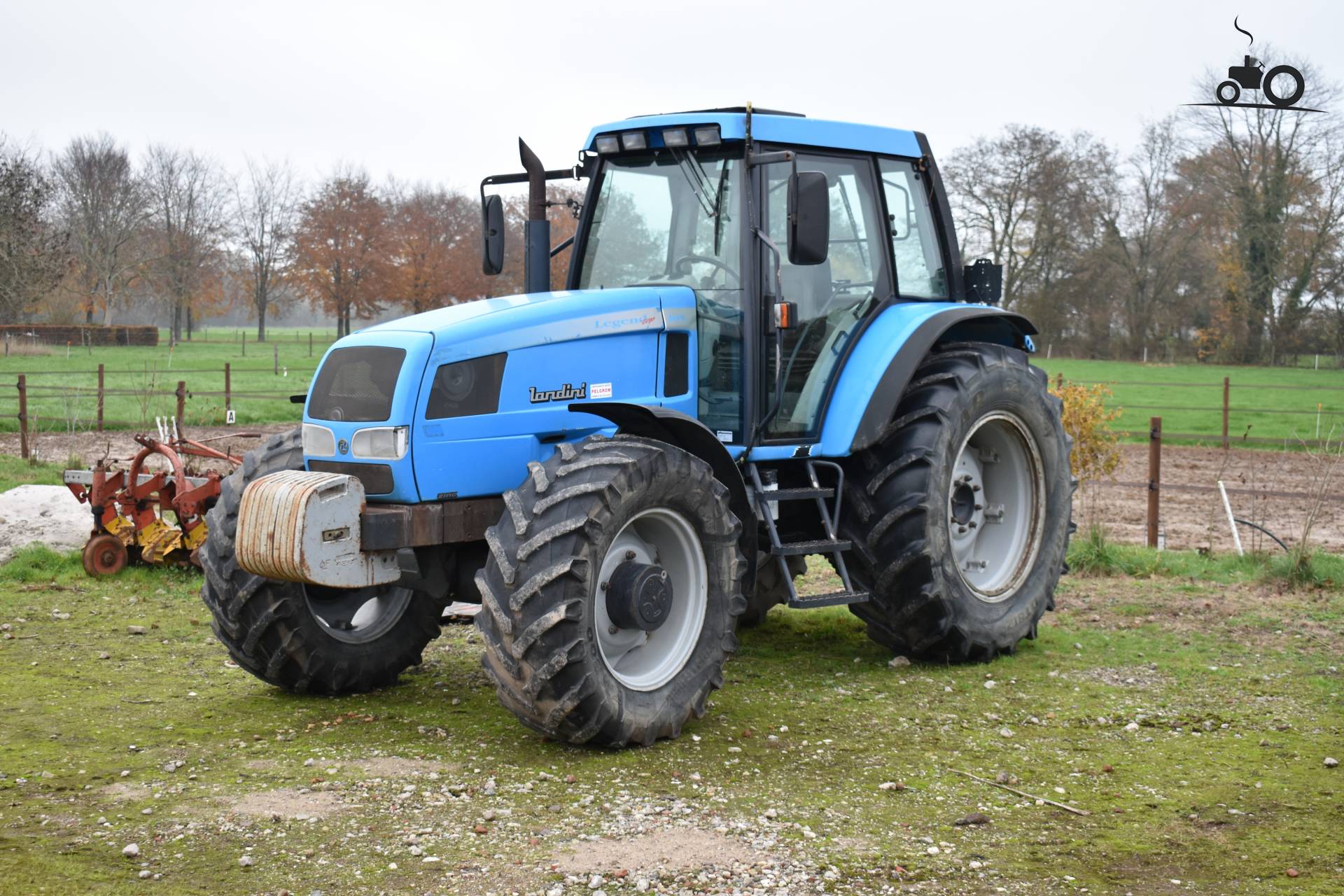

Landini Legend 105
Landini Legend 105 — Legend Series · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
5101 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank190.0 LReference
Engine76.8 kWReference
Perkins 1006-6HR4Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power76.8 kWReference
Rated RPM2200Reference
Torque395.1 NmReference
Torque RPM1200Reference
Transmission
36-speedReference
72-speedReference
Gears36 forward and reverseReference
Gears72 forward and reverseReference
PTO & Hydraulics
Total flow62.1 lpmReference
Rear lift7001 kgReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase279 cmReference
Weight5101 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length497 cmReference
Height294 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
