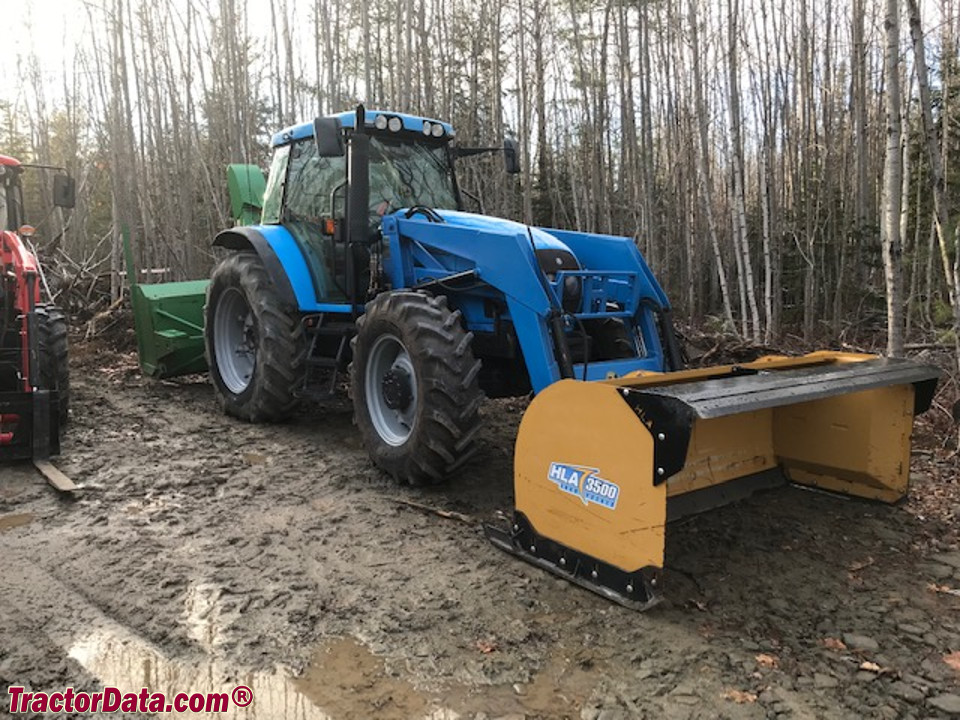

The Landini Legend 125 TDI is a tractor rated at 105 horsepower, placing it in the middle of its class in terms of power output. Manufactured between 2003 and 2005, this tractor features a 6-cylinder turbocharged diesel liquid-cooled engine. It transmits power to all four wheels via a 36-speed gearbox. The tractor's listed weight is 5787 kilograms.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
5787 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
105 hp
Recorded weight
5787 kg
Transmissions
36-speed
Production years
2003-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine86.5 kWReference
Perkins 1106-E60TAReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage IIReference
Power86.5 kWReference
Rated RPM2200Reference
Torque351.2 NmReference
Transmission
36-speedReference
72-speedReference
108-speedReference
TransmissionTopReference
Gears36 forward and reverseReference
TransmissionPower SixReference
Gears72 forward and reverseReference
TransmissionTop-TronicReference
Gears108 forward and 36 reverseReference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
Hydraulic system66.2 LReference
Capacity66.2 LReference
Pump flow97.3 lpmReference
Rear lift6985 kgReference
Rear PTO Type540/1000Reference
Capacities
Fuel261.2 LReference
Dimensions
Wheelbase279 cmReference
Weight5787 kgReference
Length514 cmReference
Width205 cmReference
Height276 cmReference
Ground clearance52 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
