Tractor · 2001Unverified

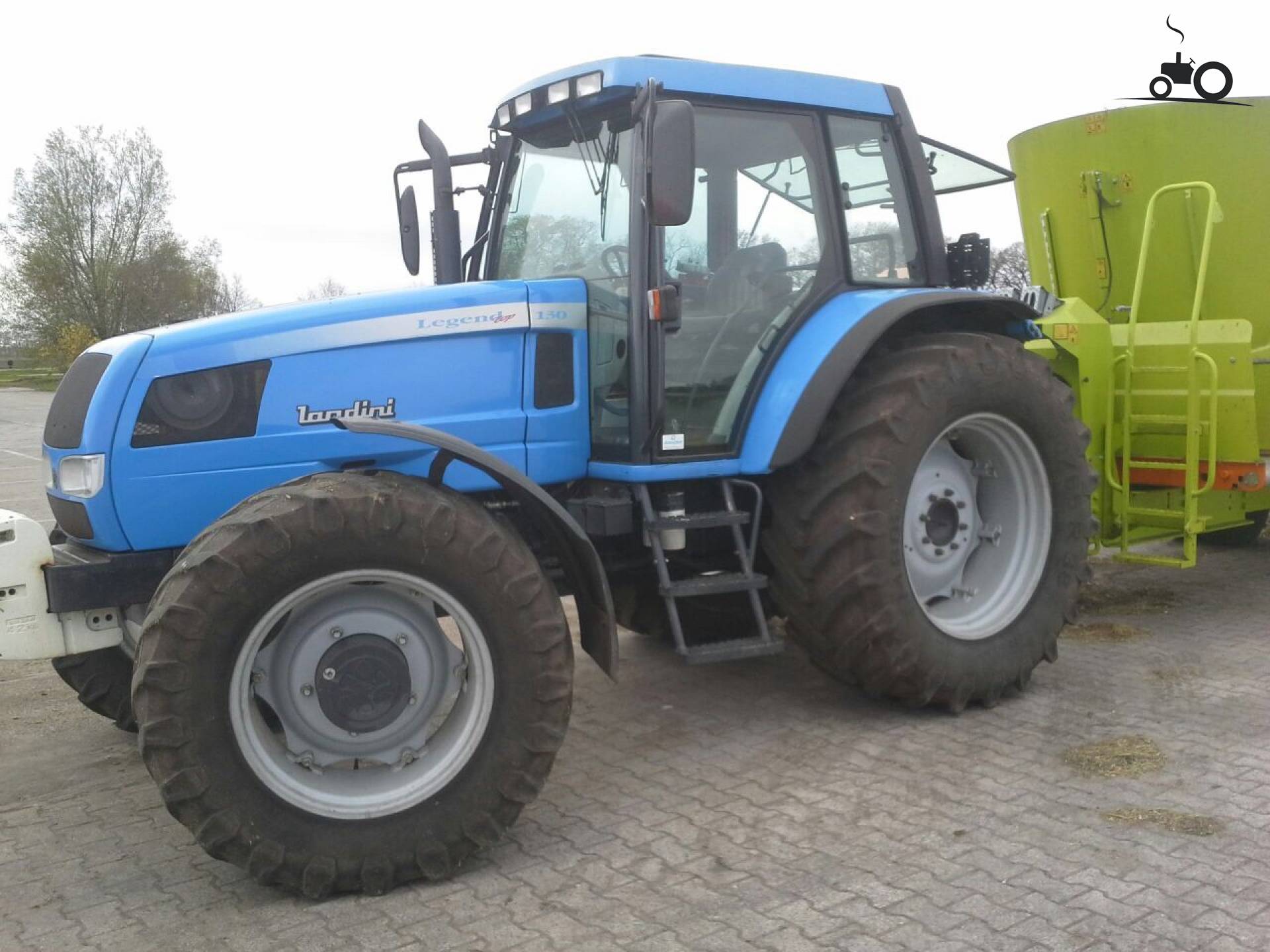

Landini Legend 130

Name: Landini Legend 130
Brand: Landini

Landini Legend 130 — Legend Series · 131 hp. Reference specifications; pending source verification.

The Landini Legend 130 is a tractor with a rated power of 131 hp, positioning it at the upper end of its class. This model was manufactured from 2001 to 2003. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 36-speed gearbox. The tractor has an operating weight of 5501 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

131 hp

Weight

5501 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

131 hp

Recorded weight

5501 kg

Transmissions

36-speed shuttle

Production years

2001-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Fuel tank260.0 LReference

Engine (gross)98.0 kWReference

Engine (net)93.0 kWReference

Perkins 1006-60TReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Power (net)93.0 kWReference

Power (gross)98.0 kWReference

Compression17.25:1Reference

Rated RPM2200Reference

Torque508.1 NmReference

Torque RPM1400Reference

Transmission

36-speed shuttleReference

72-speedReference

108-speedReference

TypeshuttleReference

Gears36 forward and reverseReference

TransmissionPower-sixReference

Gears72 forward and reverseReference

TransmissionDeltashiftReference

Gears108 forward and 36 reverseReference

PTO & Hydraulics

PTO (claimed)83.0 kWReference

Total flow62.1 lpmReference

Rear TypeIIIReference

Rear lift7001 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase279 cmReference

Weight5501 kgReference

Front tire420/70R28Reference

Rear tire520/70R38Reference

Ag front420/70R28Reference

Ag rear520/70R38Reference

Length512 cmReference

Width221 cmReference

Height (cab)278 cmReference

Ground clearance52 cmReference

Front tread170 to 221 cmReference

Rear tread159 to 209 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
