Tractor · 2003Unverified

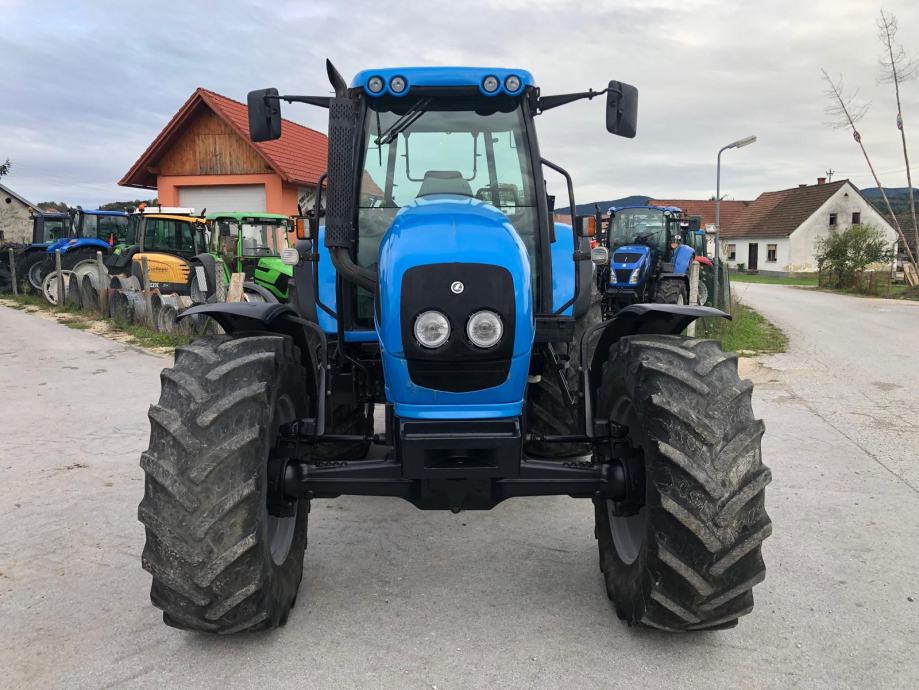

Landini Legend 135 TDI
Landini Legend 135 TDI — Legend Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
5787 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine98.4 kWReference
Perkins 1106-E60TAReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage IIReference
Power98.4 kWReference
Rated RPM2200Reference
Torque554.6 NmReference
Transmission
36-speedReference
72-speedReference
108-speedReference
TransmissionTopReference
Gears36 forward and reverseReference
TransmissionPower SixReference
Gears72 forward and reverseReference
TransmissionTop-TronicReference
Gears108 forward and 36 reverseReference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
Hydraulic system66.2 LReference
Capacity66.2 LReference
Pump flow97.3 lpmReference
Rear lift6985 kgReference
Rear PTO Type540/1000Reference
Capacities
Fuel261.2 LReference
Dimensions
Wheelbase279 cmReference
Weight5787 kgReference
Length514 cmReference
Width220 cmReference
Height276 cmReference
Ground clearance52 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
