Tractor · 2001Unverified

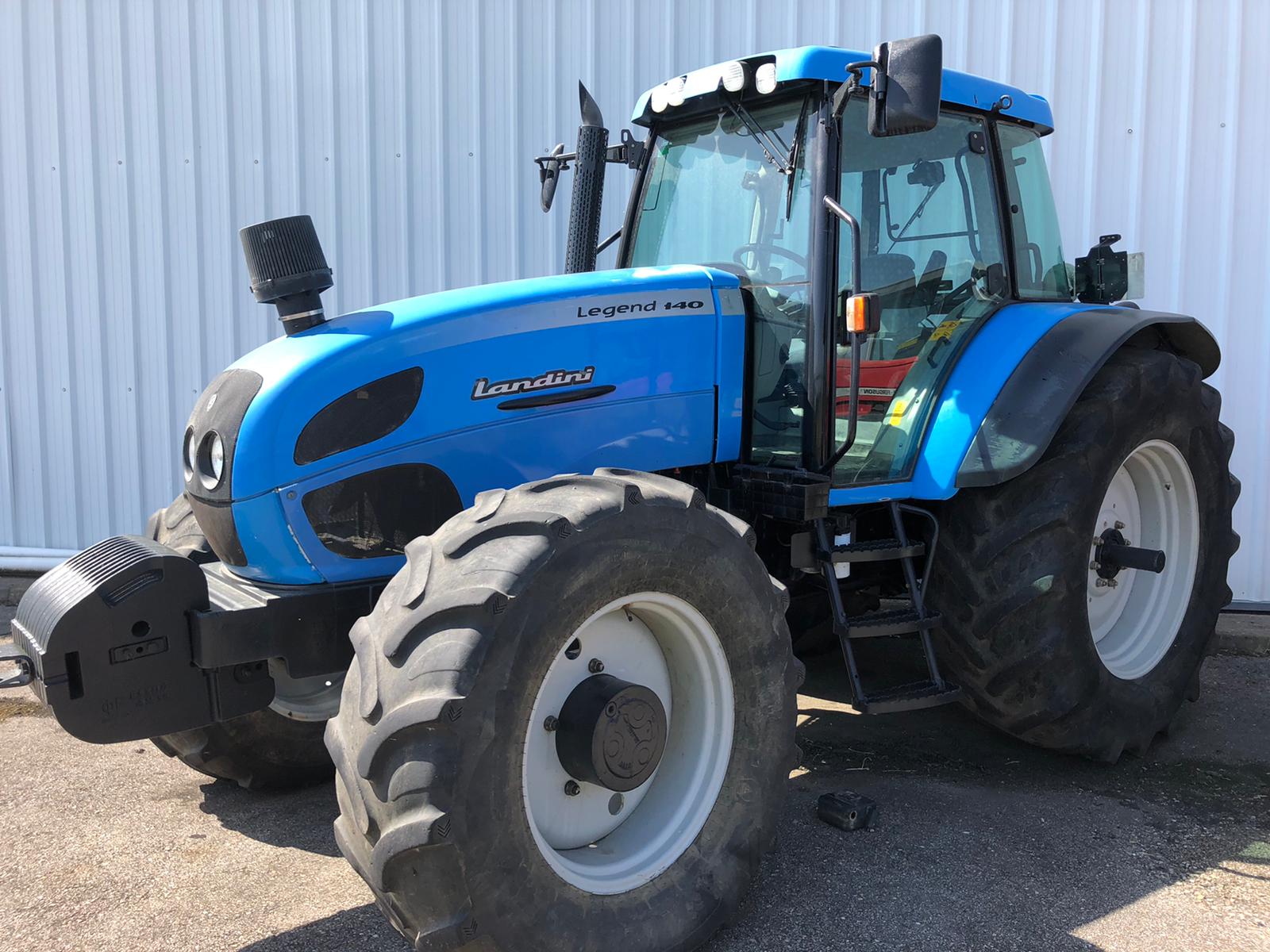

Landini Legend 140
Landini Legend 140 — Legend Series · 144 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
144 hp
Weight
5601 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine (gross)107.5 kWReference
Engine (net)101.5 kWReference
Perkins 1006-60TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power (net)101.5 kWReference
Power (gross)107.5 kWReference
Compression17.25:1Reference
Rated RPM2200Reference
Torque566.1 NmReference
Torque RPM1400Reference
Transmission
36-speed shuttleReference
72-speedReference
108-speedReference
TypeshuttleReference
Gears36 forward and reverseReference
TransmissionPower-sixReference
Gears72 forward and reverseReference
TransmissionDeltashiftReference
Gears108 forward and 36 reverseReference
PTO & Hydraulics
PTO (claimed)91.0 kWReference
Total flow62.1 lpmReference
Rear TypeIIIReference
Rear lift7001 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase279 cmReference
Weight5601 kgReference
Front tire480/65R28Reference
Rear tire600/65R38Reference
Ag front480/65R28Reference
Ag rear600/65R38Reference
Length522 cmReference
Width217 cmReference
Height (cab)279 cmReference
Ground clearance54 cmReference
Front tread173 to 223 cmReference
Rear tread166 to 226 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
